ALIMAK 35046 - 1 /11
A 16

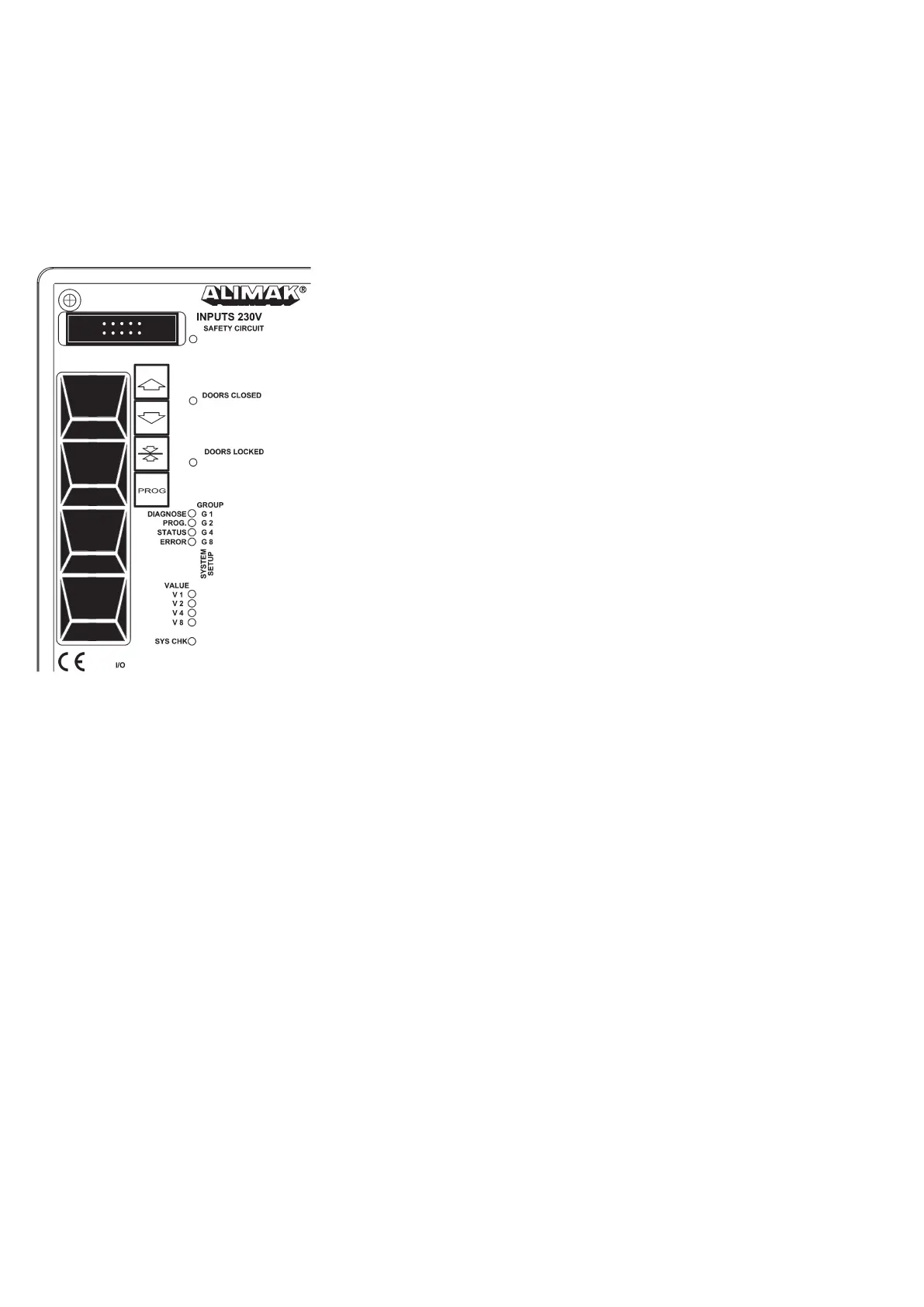

Information and fault indications on the car CPU
Group Normal mode
VALUE V1 os busy, car in operation
V2 os base OK (flashing)
V4 os car/base OK (flashing)
V8 os base configuration fault
Group Normal & Status mode (push the Prog. button once)
VALUE V1 os movement
V2 os z-pulse
V4 os direction upwards
V8 os occupied
Error mode (push the Prog. button once)
VALUE V1 os car configuration fault F8:3
V2 os motor alarm F6
V4 os temperature fault F8:5
V8 os calibration fault F8:4
Error & Status mode (push the Prog. button once more)
VALUE V1 os speed error F8:2
V2 os EN load ramp fault F3:1
V4 os stopping accuracy error F8:1
V8 os interlock fault F3:2
Diagnose mode – flashing,
(Norm./Insp. switch in Insp. position)
VALUE V1 os GPRS modem (Or in Ex. mode out of door zone)
V2 os IP adress choosen
V4 os TxIP (transmit)
V8 os RxIP (receive)
Diagnose mode – led G1 flashing,
(Norm./Insp. switch in Insp. pos. and SNL button depressed)
VALUE V1 os GPS
V2 os GPS position valid
V4 os CAN2 rx
V8 os CAN1 rx
Note 1
If V1 + V2 flash rapidly out of syn, the system calibration has not been
performed.
Note 2
If internal voltage drops under 20VDC, an f8 alarm will be shown as
indication, but it will not stop the lift/hoist.
