Bulletin 700S
Safety Control Relays
14
Overview, Continued

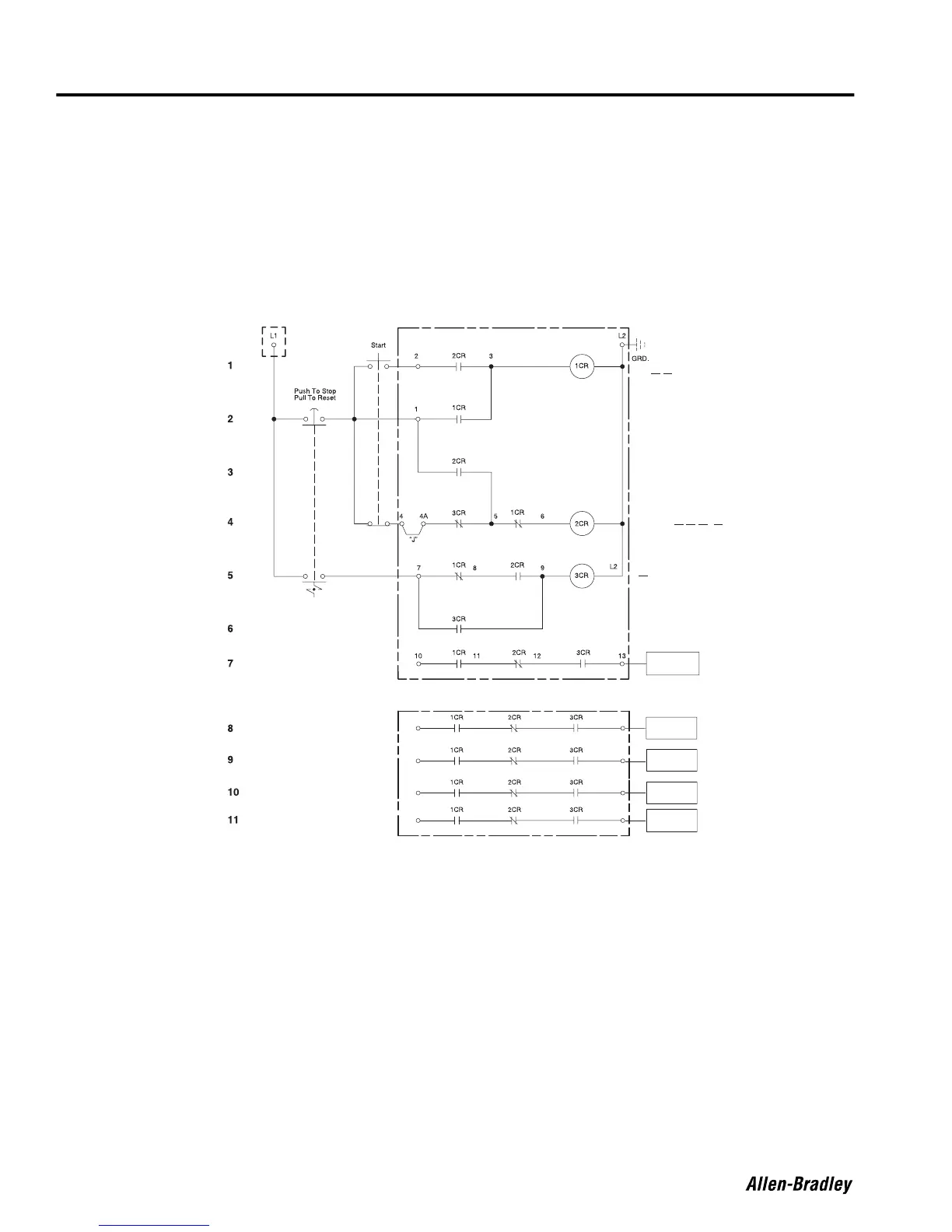

Safety Relay Circuit With 5 Safety Outputs Using 700S-CF Safety Control Relays
• Circuit complies with EN 954 categories 1, 2, 3
• Use for E-stop control. E-stop will work properly if any one fault occurs (a fault could be one welded contact or one undesired
open connection such as a loose wire).
• Prevents restart of the 5 safety outputs if there is a single fault anywhere in the system.
• High output switching capability and long contact life.
• Provides greater user flexibility for the number of N.O. and N.C. contacts.
Use (3) 700S-CF relays and this diagram to construct the circuit.
➊ Numbers shown are the line numbers where the contacts for this relay appear.
Basic Circuit
(1) Output Circuit (3 Relays, 9 Terminal Blocks)
(5) Output Circuit (3 Relays, 17 Terminal Blocks)
LOAD 1
700-Z
Included in Factory
Wired Units
LOAD 2
LOAD 3
LOAD 4
LOAD 5
14 15 16 17
18 19 20 21
22 23 24 25
26 27 28 29
13 14
13 14
13 14
33 34
A1 A2
A1 A2
A1 A2
21 22
61 62
33 34
43 44 51 52 43 44
53 54 61 62 53 54
73 74 71 72 63 64
83 84 81 82 73 74
33 3421 22
43 44
21 22
1 3 5 7 8 9 10 11
700S-CF 350* C
4 6 7 8 9 10 11
700S-CF 620* C
2 4 5 7 8 9 10
700S-CF 620* C
11
➊
➊
➊
