High-Speed Counter (HSC) instructions Chapter 14
Rockwell Automation Publication 2080-RM001D-EN-E - February 2015 349
Assign variables and build the program
After you enter values in the HSC variables, follow these steps to assign the
variables to the function block, and build the program.

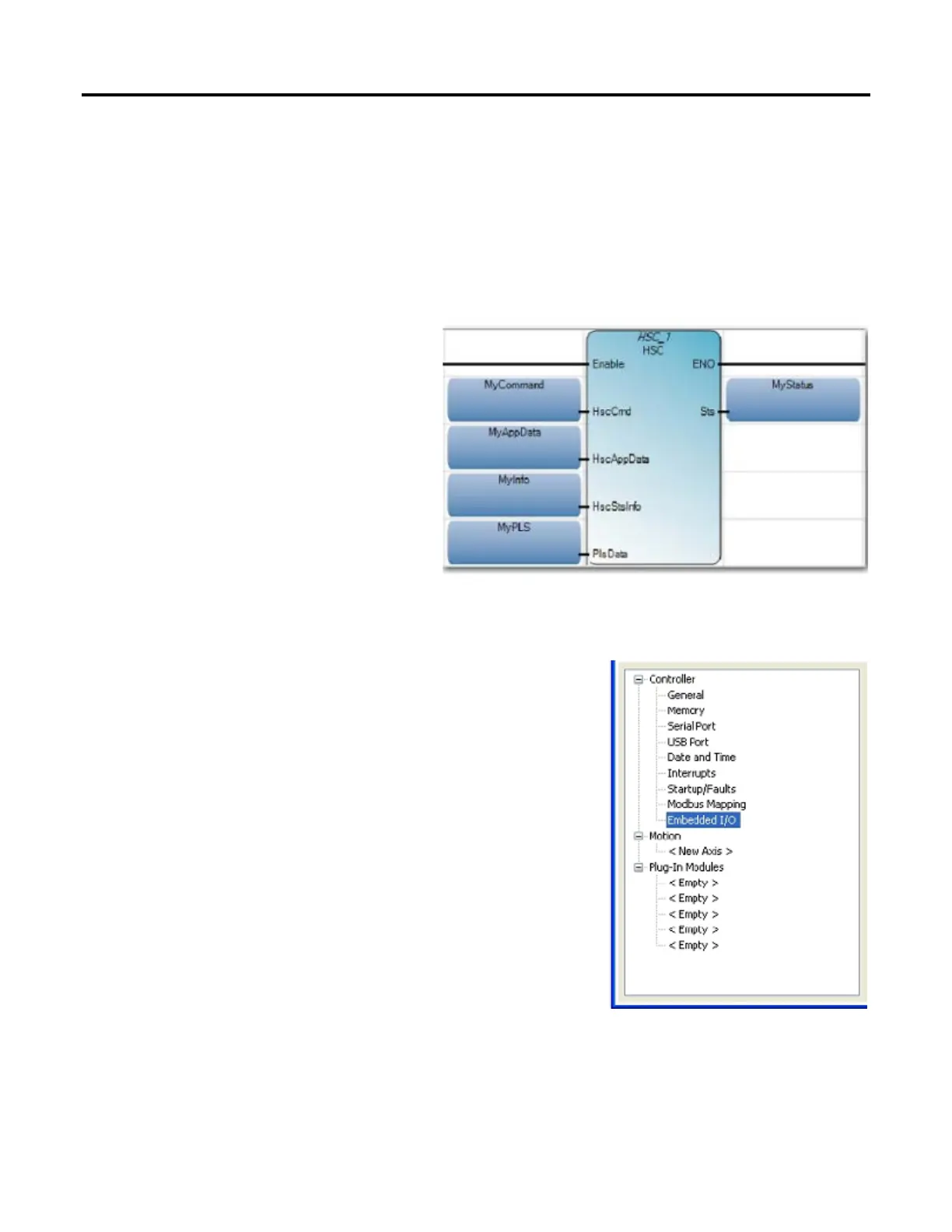

1. From the ladder diagram, assign each variable to its HSC function block
element as shown in the following figure.
2. From the Project Organizer, click the controller to display the controller
tree.
