Allen-Bradley Micro800

12 Micro800 Remote LCD
Rockwell Automation Publication 2080-IN010B-EN-P – May 2015

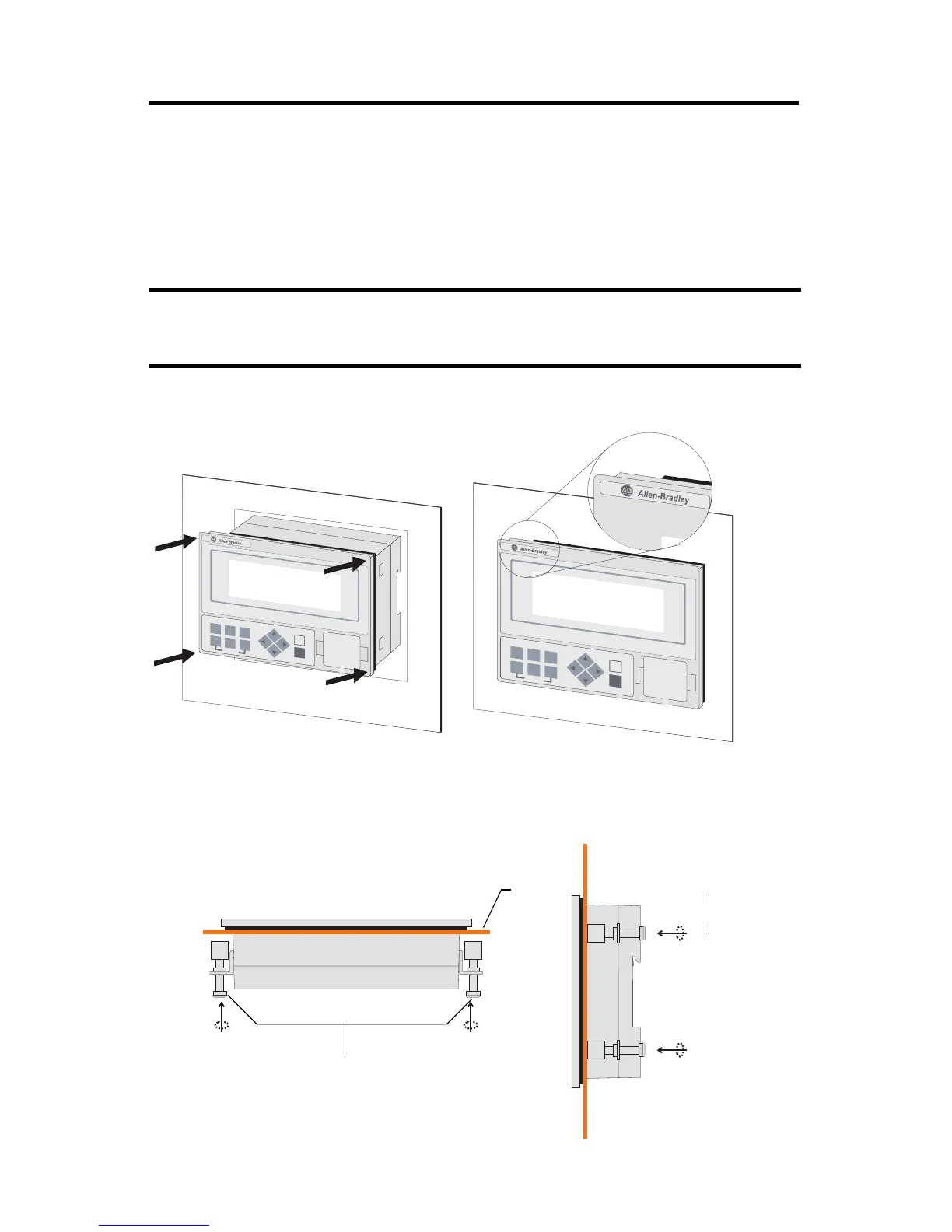

Follow these steps to mount the remote LCD through the front panel.
1. Make sure the sealing gasket is properly positioned on the module.
This gasket forms a compression type seal. Do not use sealing compounds.
2. Place the module in the panel cutout.
3. Once the unit is placed in the panel, tighten the mounting screws evenly to a torque
between 0.5…0.6 Nm (4.42…5.31 lb-in.) to maintain water and dust resistance. Make
sure the panel is clean and strong enough to hold the unit.
IMPORTANT
The module temperature must be greater than 0 °C (32 °F) during panel
installation.
OK
ESC
F4
F5
F1 F2
F3
F6
MENU
USB
OK
ESC
F4
F5
F1 F2
F3
F6
MENU
USB
The module is shipped with the Allen-Bradley logo
sticker (36.70 x 4.70 mm). You can customize this
space with your product logo.
46251
Top view
Side view
Panel
46252
Clamp accessories
