Allsource 42000 - Assembly - Steps 13

16
42000
Operating Instructions and Parts Manual
High Pressure Abrasive Blast Cabinet
Stand & Cabinet Base

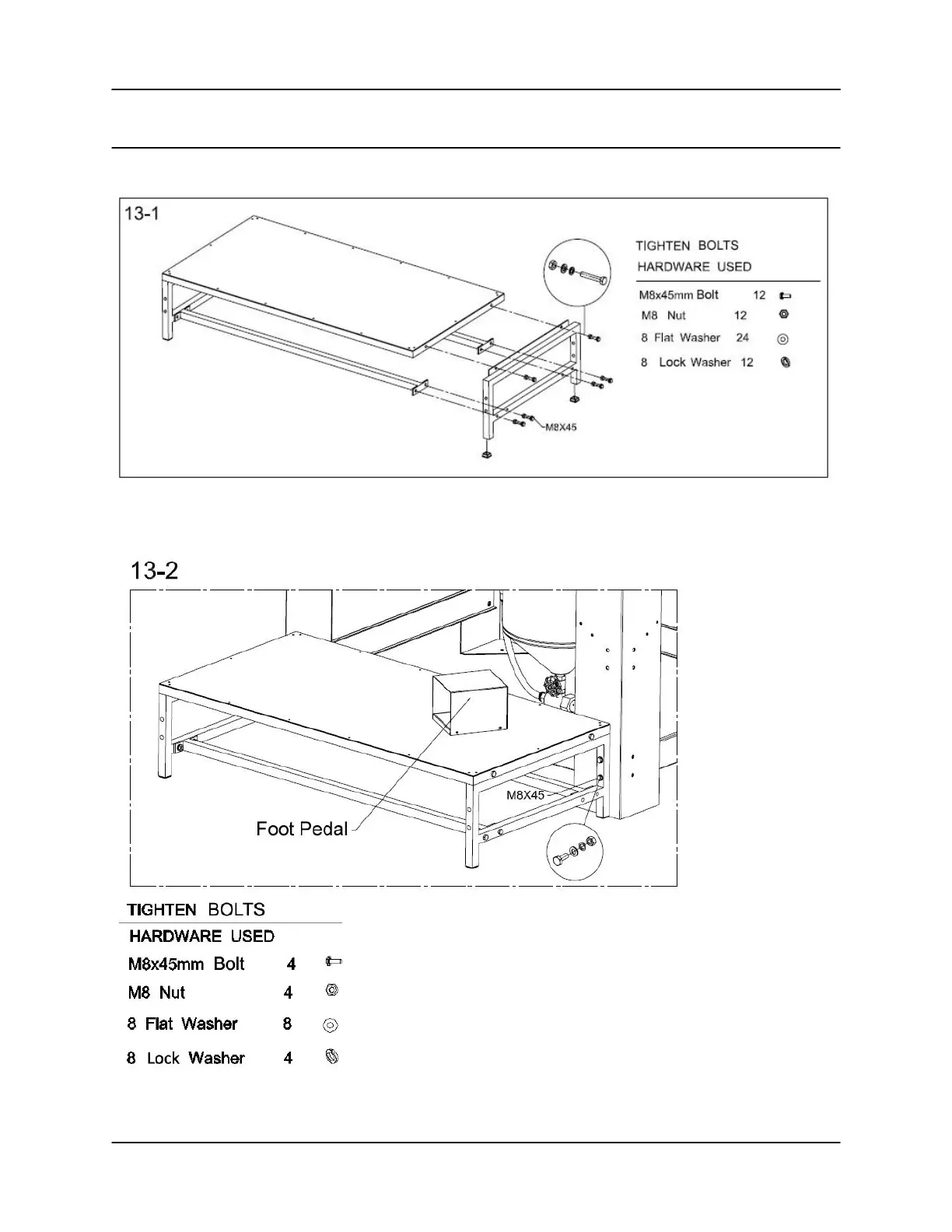

13-1:Assemble stand with M8*45mm bolt ,M8 Nut ,8 flat washer, 8 lock
washer, see above diagram
13-2: Install stand to front legs of cabinet as
shown in the diagram with M8*45mm
bolt, M8 Nut ,8 flat washer,8 lock
washer.
