26
42000
Operating Instructions and Parts Manual
High Pressure Abrasive Blast Cabinet

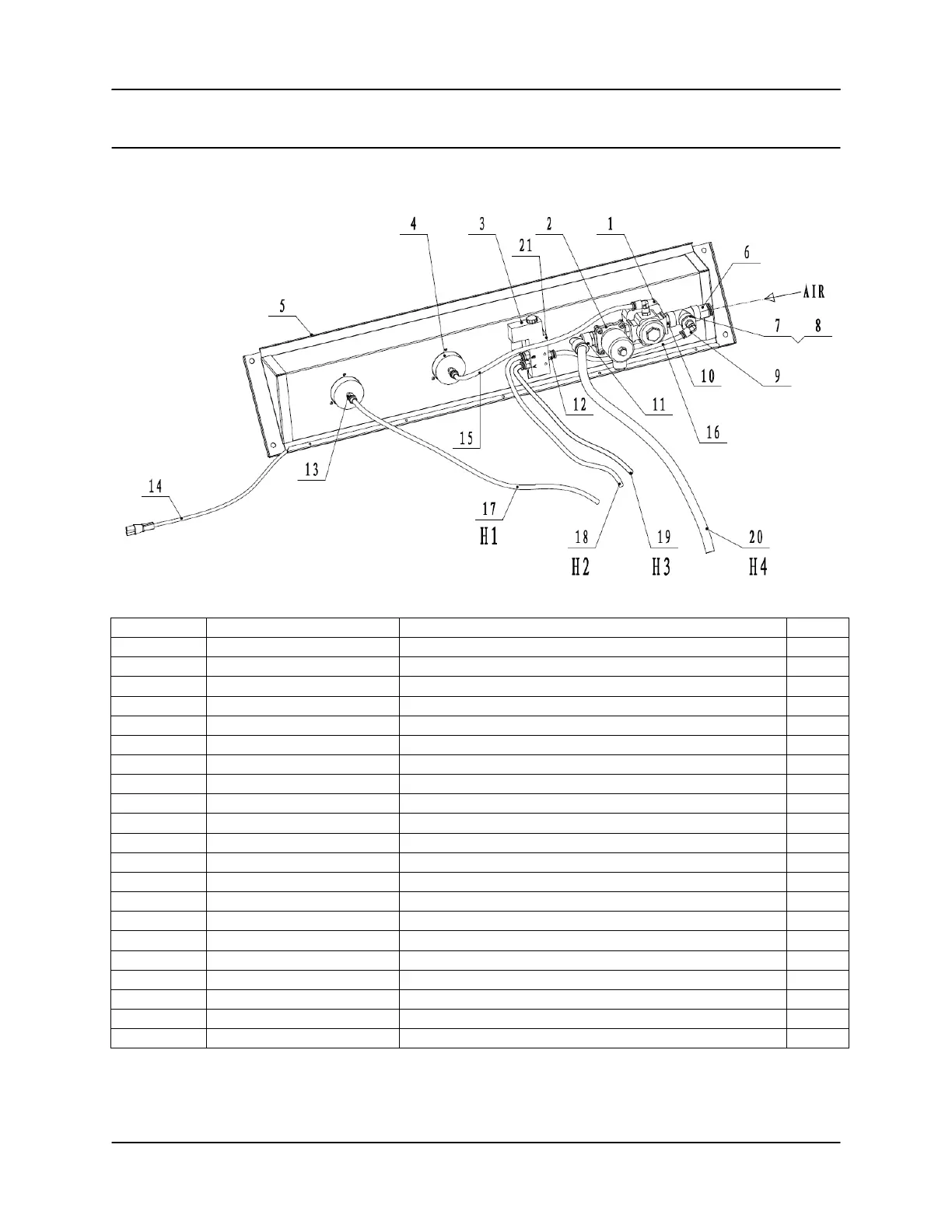

Exploded View of Control Panel
Item No.
Part No.
Description
Qty.
11-1
4201101
Pressure Regulating Valve
1
11-2
4201102
Electromagnetic Valve 1
1
11-3
4201103
Electromagnetic Valve 2
1
11-4
4201104
Pressure Gauge
2
11-5
4201105
Control Panel
1
11-6
4201106
G1/2″-16 Straight Coupling
1
11-7
4201107
Tee Joint
1
11-8
4201108
G1/2″-G1/4″ Bushing
1
11-9
4201109
G1/4″-8 Straight Coupling
2
11-10
4201110
G1/2”Straight Coupling
2
11-11
4201111
G1/2″-16 Straight Coupling
1
11-12
4201112
G1/4″-8 Straight Coupling
3
11-13
4201113
M10*11-8 Pressure Gauge Coupling
2
11-14
4201114
Electromagnetic Valve Wire
1
11-15
42074
φ8 Air Pipe
1
11-16
42074
φ8 Air Pipe
1
11-17/H1
42074
φ8 Air Hose
1
11-18/H2
42074
φ8 Air Hose
1
11-19/H3
42074
φ8 Air Hose
1
11-20/H4
42075
φ16 Air Hose
1
11-21
4201121
G1/8″ muffler
2
