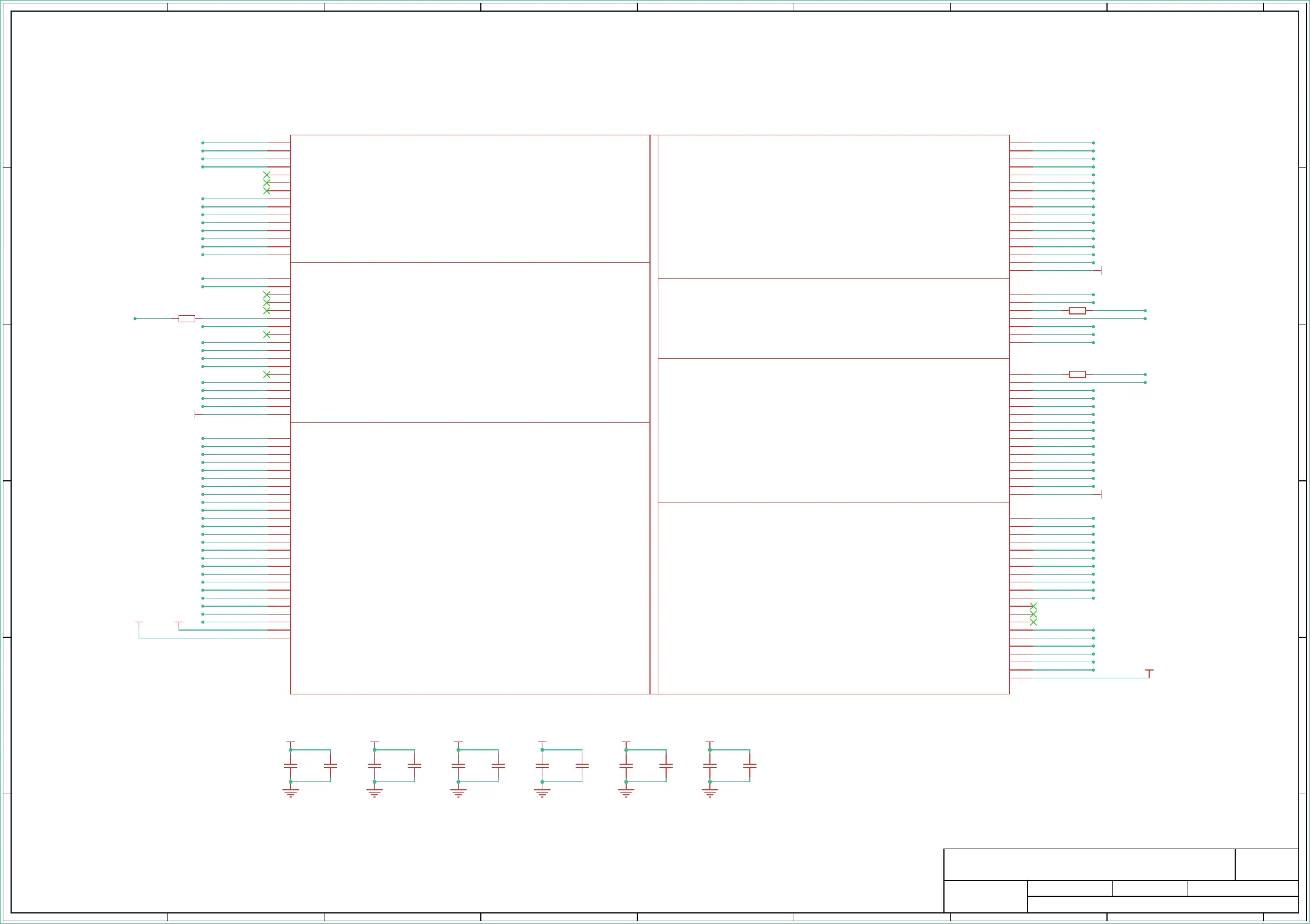

Avaota A1 八核 AIoT 开发板
1.0
YuzukiHD
GloomyGhost2024-08-30
6 13
PB0/UART2-TX/SPI2-CS0/JTAG-MS/LCD0-D0/PWM-6/PB-EINT0
N28
PB1/UART2-RX/SPI2-CLK/JTAG-CK/LCD0-D1/PWM-7/PB-EINT1
N29
PB2/UART2-RTS/SPI2-MOSI/JTAG-DO/LCD0-D8/CAN-TX0/PB-EINT2
M31
PB3/UART2-CTS/SPI2-MISO/JTAG-DI/LCD0-D9/CAN-RX0/PB-EINT3
M32
PB4/TWI1-SCK/I2S0-MCLK/TRACE-DATA2/PWM-8/HDMI-SCL/PB-EINT4
N31
PB5/TWI1-SDA/I2S0-BCLK/TRACE-CLK/PWM-9/HDMI-SDA/PB-EINT5
N32
PB6/I2S0-LRCK/TRACE-DATA0/PWM-10/HDMI-CEC/PB-EINT6
N33
PB7/OWA-IN/I2S0-DOUT0/I2S0-DIN1/LCD0-D16/PWM-11/PB-EINT7
P31
PB8/OWA-OUT/I2S0-DIN0/I2S0-DOUT1/LCD0-D17/PWM-0/PB-EINT8
P32
PB9/UART0-TX/TWI0-SCK/TRACE-DATA1/I2S0-DIN2/I2S0-DOUT2/PB-EINT9
R28
PB10/UART0-RX/TWI0-SDA/PWM-1/I2S0-DIN3/I2S0-DOUT3/PB-EINT10
R29
PB11/TWI5-SCK/UART7-RTS/SPI1-CS0/PWM-2/PB-EINT11
R30
PB12/TWI5-SDA/UART7-CTS/SPI1-CLK/PWM-3/PB-EINT12
R31
PB13/TWI4-SCK/UART7-TX/SPI1-MOSI/PWM-4/PB-EINT13
R32
PB14/TWI4-SDA/UART7-RX/SPI1-MISO/PWM-5/PB-EINT14
R33
PC0/NAND-WE/SDC2-DS/PC-EINT0
W28
PC1/NAND-ALE/SDC2-RST/PC-EINT1
Y31
PC2/NAND-CLE/SPI0-MOSI/SPIF-MOSI/PC-EINT2
U30
PC3/NAND-CE1/SPI0-CS0/SPIF-CS0/PC-EINT3
U29
PC4/NAND-CE0/SPI0-MISO/SPIF-MISO/PC-EINT4
U28
PC5/NAND-RE/SDC2-CLK/PC-EINT5
Y32
PC6/NAND-RB0/SDC2-CMD/PC-EINT6
W33
PC7/NAND-RB1/SPI0-CS1/SPIF-DQS/PC-EINT7
W29
PC8/NAND-DQ7/SDC2-D3/SPIF-D7/PC-EINT8
W32
PC9/NAND-DQ6/SDC2-D4/SPIF-D6/PC-EINT9
W31
PC10/NAND-DQ5/SDC2-D0/SPIF-D5/PC-EINT10
V32
PC11/NAND-DQ4/SDC2-D5/SPIF-D4/PC-EINT11
V31
PC12/NAND-DQS/SPI0-CLK/SPIF-CLK/PC-EINT12
U33
PC13/NAND-DQ3/SDC2-D1/PC-EINT13
U32
PC14/NAND-DQ2/SDC2-D6/PC-EINT14
U31
PC15/NAND-DQ1/SDC2-D2/SPI0-WP/SPIF-WP/PC-EINT15
T32
PC16/NAND-DQ0/SDC2-D7/SPI0-HOLD/SPIF-HOLD/PC-EINT16
T31
VCC-PC
U26
PD0/LCD0-D2/LVDS0-D0P/DSI0-D0P/PWM-0/PD-EINT0
D32
PD1/LCD0-D3/LVDS0-D0N/DSI0-D0N/PWM-1/PD-EINT1
D33
PD2/LCD0-D4/LVDS0-D1P/DSI0-D1P/PWM-2/PD-EINT2
E30
PD3/LCD0-D5/LVDS0-D1N/DSI0-D1N/PWM-3/PD-EINT3
E31
PD4/LCD0-D6/LVDS0-D2P/DSI0-CKP/PWM-4/PD-EINT4
E32
PD5/LCD0-D7/LVDS0-D2N/DSI0-CKN/PWM-5/PD-EINT5
E33
PD6/LCD0-D10/LVDS0-CKP/DSI0-D2P/PWM-6/PD-EINT6
F32
PD7/LCD0-D11/LVDS0-CKN/DSI0-D2N/PWM-7/PD-EINT7
F33
PD8/LCD0-D12/LVDS0-D3P/DSI0-D3P/PWM-8/PD-EINT8
G30
PD9/LCD0-D13/LVDS0-D3N/DSI0-D3N/PWM-9/PD-EINT9
G31
PD10/LCD0-D14/LVDS1-D0P/DSI1-D0P/PWM-10/SPI1-CS0/DBI-CSX/PD-EINT10
G32
PD11/LCD0-D15/LVDS1-D0N/DSI1-D0N/PWM-11/SPI1-CLK/DBI-SCLK/PD-EINT11
G33
PD12/LCD0-D18/LVDS1-D1P/DSI1-D1P/PWM-12/SPI1-MOSI/DBI-SDO/PD-EINT12
H31
PD13/LCD0-D19/LVDS1-D1N/DSI1-D1N/PWM-13/SPI1-MISO/DBI-SDI/DBI-TE/DBI-DCX/PD-EINT13
H32
PD14/LCD0-D20/LVDS1-D2P/DSI1-CKP/PWM-14/UART3-TX/PD-EINT14
J29
PD15/LCD0-D21/LVDS1-D2N/DSI1-CKN/PWM-15/UART3-RX/PD-EINT15
J30
PD16/LCD0-D22/LVDS1-CKP/DSI1-D2P/PWM-16/UART3-RTS/PD-EINT16
J32
PD17/LCD0-D23/LVDS1-CKN/DSI1-D2N/PWM-17/UART3-CTS/PD-EINT17
J33
PD18/LCD0-CLK/LVDS1-D3P/DSI1-D3P/PWM-18/UART4-TX/PD-EINT18
K31
PD19/LCD0-DE/LVDS1-D3N/DSI1-D3N/PWM-19/UART4-RX/PD-EINT19
K32
PD20/LCD0-HSYNC/PWM-2/UART2-TX/UART7-RTS/UART4-RTS/PD-EINT20
L28
PD21/LCD0-VSYNC/PWM-3/UART2-RX/UART7-CTS/UART4-CTS/PD-EINT21
L29
PD22/PWM-1/SPI1-HOLD/DBI-DCX/DBI-WRX/UART2-RTS/UART7-TX/TWI0-SCK/PD-EINT22
L31
PD23/PWM-0/SPI1-WP/DBI-TE/UART2-CTS/UART7-RX/TWI0-SDA/PD-EINT23
L32
VCC-PD
L26
VCC-LVDS0
N24
PE0/MCSI0-MCLK/PE-EINT0
E6
PE1/TWI2-SCK/UART4-TX/PE-EINT1
C4
PE2/TWI2-SDA/UART4-RX/PE-EINT2
E5
PE3/TWI3-SCK/UART4-RTS/PE-EINT3
E4
PE4/TWI3-SDA/UART4-CTS/PE-EINT4
C3
PE5/MCSI1-MCLK/PLL-LOCK-DBG/I2S2-MCLK/LEDC/PE-EINT5
B3
PE6/I2S2-BCLK/LCD0-TRIG/NCSI-D8/PE-EINT6
A3
PE7/I2S2-LRCK/LCD1-TRIG/NCSI-D9/PE-EINT7
A2
PE8/I2S2-DOUT0/LCD2-TRIG/NCSI-D10/PE-EINT8
B2
PE9/I2S2-DIN0/NCSI-D11/PE-EINT9
B1
PE10/MCSI3-MCLK/PWM-3/NCSI-D12/PE-EINT10
C2
PE11/TWI1-SCK/UART5-RTS/SPI2-CS0/UART6-TX/NCSI-D13/PE-EINT11
J7
PE12/TWI1-SDA/UART5-CTS/SPI2-CLK/UART6-RX/NCSI-D14/PE-EINT12
C1
PE13/TWI4-SCK/UART5-TX/SPI2-MOSI/UART6-RTS/CSI0-XVS-FSYNC/PE-EINT13
G6
PE14/TWI4-SDA/UART5-RX/SPI2-MISO/UART6-CTS/CSI1-XVS-FSYNC/PE-EINT14
L7
PE15/MCSI2-MCLK/PWM-2/NCSI-D15/PE-EINT15
N7
VCC-PE
L9
PF0/SDC0-D1/JTAG-MS/TRACE-DATA2/I2S3-DIN0/I2S3-DOUT1/PF-EINT0
B20
PF1/SDC0-D0/JTAG-DI/TRACE-DATA1/I2S3-DOUT0/I2S3-DIN1/PF-EINT1
A20
PF2/SDC0-CLK/UART0-TX/I2S3-DIN2/I2S3-DOUT2/PF-EINT2
C19
PF3/SDC0-CMD/JTAG-DO/TRACE-DATA0/I2S3-LRCK/PF-EINT3
B19
PF4/SDC0-D3/UART0-RX/I2S3-DIN3/I2S3-DOUT3/PF-EINT4
B18
PF5/SDC0-D2/JTAG-CK/TRACE-CLK/I2S3-BCLK/PF-EINT5
A18
PF6/I2S3-MCLK/PF-EINT6
D20
PG0/SDC1-CLK/PG-EINT0
R1
PG1/SDC1-CMD/PG-EINT1
R2
PG2/SDC1-D0/PCIE0-PERSTN/PG-EINT2
P3
PG3/SDC1-D1/PCIE0-WAKEN/PG-EINT3
P2
PG4/SDC1-D2/PCIE0-CLKREQN/PG-EINT4
T3
PG5/SDC1-D3/PG-EINT5
T2
PG6/UART1-TX/PG-EINT6
R6
PG7/UART1-RX/PG-EINT7
R5
PG8/UART1-RTS/PG-EINT8
R4
PG9/UART1-CTS/PG-EINT9
U6
PG10/I2S1-MCLK/PG-EINT10
U5
PG11/I2S1-BCLK/PG-EINT11
U4
PG12/I2S1-LRCK/PG-EINT12
U3
PG13/I2S1-DOUT0/I2S1-DIN1/PG-EINT13
U2
PG14/I2S1-DIN0/I2S1-DOUT1/PG-EINT14
U1
VCC-PG
T9
PH0/TWI0-SCK/RGMII0-RXD1/RMII0-RXD1/PH-EINT0
F18
PH1/TWI0-SDA/RGMII0-RXD0/RMII0-RXD0/PH-EINT1
E18
PH2/TWI1-SCK/CPU-CUR-W/I2S2-DIN3/RGMII0-RXCTL/RMII0-CRS-DV/I2S2-DOUT3/PH-EINT2
D18
PH3/TWI1-SDA/IR-TX/I2S2-DIN2/RGMII0-CLKIN/RMII0-RXER/I2S2-DOUT2/PH-EINT3
C17
PH4/UART3-TX/SPI1-CS0/CPU-CUR-W/RGMII0-TXD1/RMII0-TXD1/PH-EINT4
B17
PH5/UART3-RX/SPI1-CLK/LEDC/RGMII0-TXD0/RMII0-TXD0/PH-EINT5
E16
PH6/UART3-RTS/SPI1-MOSI/OWA-IN/RGMII0-TXCK/RMII0-TXCK/PH-EINT6
G12
PH7/UART3-CTS/SPI1-MISO/OWA-OUT/RGMII0-TXCTL/RMII0-TXEN/PH-EINT7
F14
PH8/DMIC-CLK/SPI2-CS0/I2S2-MCLK/I2S2-DIN2/PH-EINT8
D16
PH9/DMIC-DATA0/SPI2-CLK/I2S2-BCLK/RGMII0-MDC/PH-EINT9
C16
PH10/DMIC-DATA1/SPI2-MOSI/I2S2-LRCK/RGMII0-MDIO/PH-EINT10
B16
PH11/DMIC-DATA2/SPI2-MISO/I2S2-DOUT0/I2S2-DIN1/PCIE0-PERSTN/PH-EINT11
A16
PH12/DMIC-DATA3/TWI3-SCK/I2S2-DIN0/I2S2-DOUT1/PCIE0-WAKEN/PH-EINT12
C15
PH13/TWI3-SDA/I2S3-MCLK/RGMII0-EPHY-25M/PH-EINT13
B15
PH14/I2S3-BCLK/RGMII0-RXD3/RMII0-NULL/PH-EINT14
E14
PH15/I2S3-LRCK/RGMII0-RXD2/RMII0-NULL/PH-EINT15
D14
PH16/I2S3-DOUT0/I2S3-DIN1/RGMII0-RXCK/RMII0-NULL/CLK-FANOUT0/PH-EINT16
B14
PH17/I2S3-DOUT1/I2S3-DIN0/RGMII0-TXD3/RMII0-NULL/PH-EINT17
B13
PH18/IR-TX/I2S3-DOUT2/I2S3-DIN2/RGMII0-TXD2/RMII0-NULL/PH-EINT18
A14
PH19/IR-RX/I2S3-DOUT3/I2S3-DIN3/LEDC/PCIE0-CLKREQN/PH-EINT19
C13
VCC-IO
L15
U14.4
SDC2-DSSDC2-DS
SDC2-RSTSDC2-RST
R41
33
SDC2-CLKSDC2-CLK
SDC2-CMDSDC2-CMD
SDC2-D3SDC2-D3
SDC2-D4SDC2-D4
SDC2-D0SDC2-D0
SDC2-D5SDC2-D5
SDC2-D1SDC2-D1
SDC2-D6SDC2-D6
SDC2-D2SDC2-D2
SDC2-D7SDC2-D7
VCC-PC
SDC0-D1SDC0-D1
SDC0-D0SDC0-D0
SDC0-CMDSDC0-CMD
R42
33
SDC0-CLKSDC0-CLK
SDC0-D3SDC0-D3
SDC0-D2SDC0-D2
SDC0-DETSDC0-DET
VCC-PG
WL-WAKE-APWL-WAKE-AP
WL-REG-ONWL-REG-ON
BT-RESETNBT-RESETN
AP-WAKE-BTAP-WAKE-BT
BT-WAKE-APBT-WAKE-AP
UART1-CTSUART1-CTS
UART1-RTSUART1-RTS
UART1-RXUART1-RX
UART1-TXUART1-TX
SDC1-D3SDC1-D3
SDC1-D2SDC1-D2
SDC1-D1SDC1-D1
SDC1-D0SDC1-D0
SDC1-CMDSDC1-CMD
R43
33
SDC1-CLKSDC1-CLK
LCD0-D2LCD0-D2
LCD0-D3LCD0-D3
LCD0-D4LCD0-D4
LCD0-D5LCD0-D5
LCD0-D6LCD0-D6
LCD0-D7LCD0-D7
LCD0-D10LCD0-D10
LCD0-D11LCD0-D11
LCD0-D12LCD0-D12
LCD0-D13LCD0-D13
LCD0-D14LCD0-D14
LCD0-D15LCD0-D15
LCD0-D18LCD0-D18
LCD0-D19LCD0-D19
LCD0-D20LCD0-D20
LCD0-D21LCD0-D21
LCD0-D22LCD0-D22
LCD0-D23LCD0-D23
LCD0-CLKLCD0-CLK
LCD0-DELCD0-DE
LCD0-HSYNCLCD0-HSYNC
LCD0-VSYNCLCD0-VSYNC
LCD0-PWMLCD0-PWM
VCC-PDVCC-LVDS0 LCD0-RSTLCD0-RST
RGMII0-RXD1RGMII0-RXD1
RGMII0-RXD0RGMII0-RXD0
RGMII0-RXCTLRGMII0-RXCTL
RGMII0-CLKINRGMII0-CLKIN
RGMII0-TXD1RGMII0-TXD1
RGMII0-TXCKRGMII0-TXCK
RGMII0-TXCTLRGMII0-TXCTL
PHYRSTB0PHYRSTB0
RGMII0-MDCRGMII0-MDC
CTP-SDACTP-SDA
CTP-SCKCTP-SCK
CTP-INTCTP-INT
CTP-RSTCTP-RST
CPUX-RXCPUX-RX
CPUX-TXCPUX-TX
LCD0-D0LCD0-D0
LCD0-D1LCD0-D1
LCD0-D8LCD0-D8
LCD0-D9LCD0-D9
LCD0-D16LCD0-D16
LCD0-D17LCD0-D17
RGMII0-MDIORGMII0-MDIO
RGMII0-RXD3RGMII0-RXD3
RGMII0-RXD2RGMII0-RXD2
RGMII0-RXCKRGMII0-RXCK
RGMII0-TXD3RGMII0-TXD3
RGMII0-TXD2RGMII0-TXD2
LEDCLEDC VCC-IO
RGMII0-TXD0RGMII0-TXD0
VCC-PE
VCC-PC
C164
100nF
C163
2.2uF
GND
VCC-LVDS0
C166
100nF
C165
2.2uF
GND
VCC-PD
C168
100nF
C167
2.2uF
GND
VCC-PE
C170
100nF
C169
2.2uF
GND
VCC-PG
C172
100nF
C171
2.2uF
GND
VCC-IO
C174
100nF
C173
2.2uF
GND
PE0PE0
PE1PE1
PE2PE2
PE3PE3
PE4PE4
PE5PE5
PE6PE6
PE7PE7
PE8PE8
PE9PE9
PE10PE10
PE11PE11
PE12PE12
PE13PE13
PE14PE14
PE15PE15
