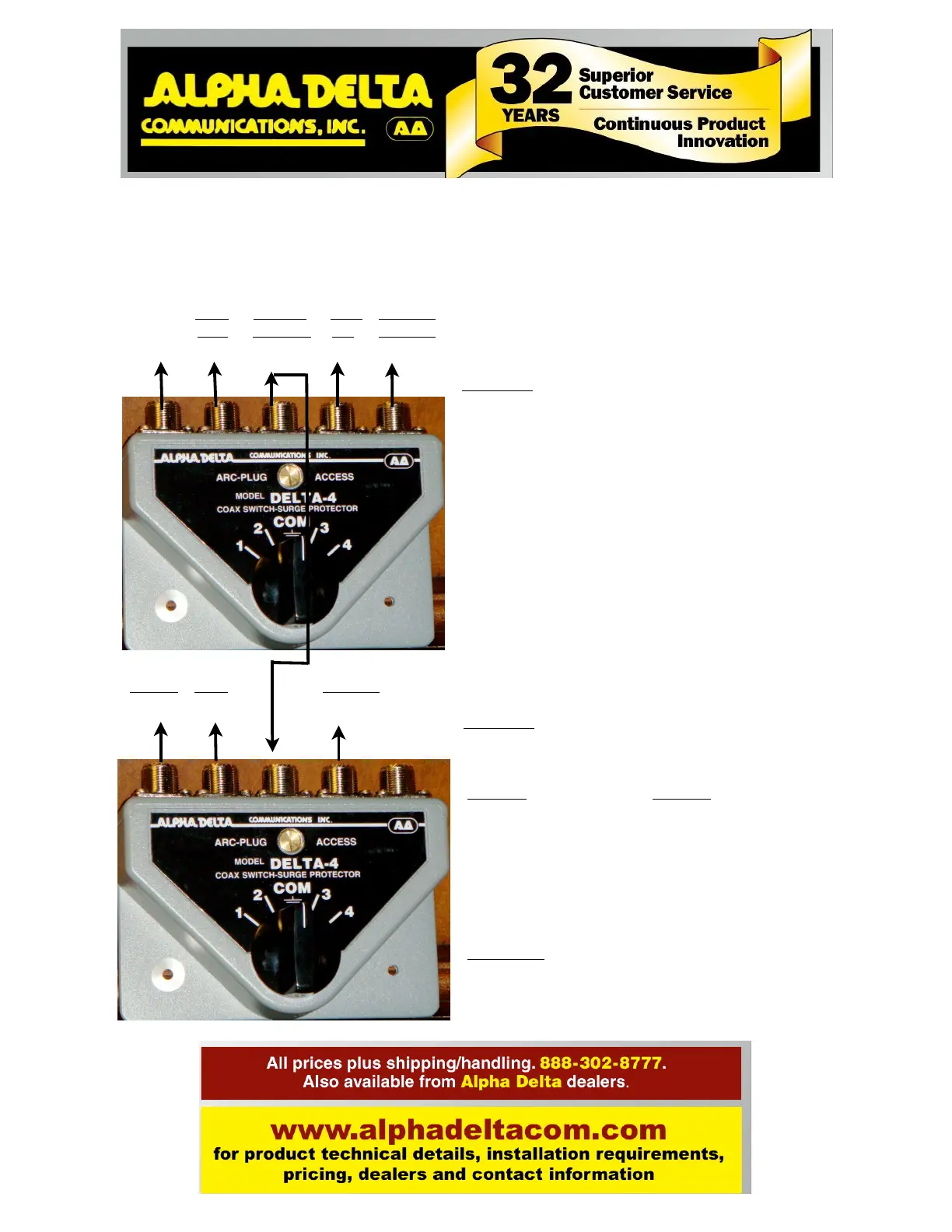

Suggestions for connecting multiple antennas to multiple rigs utilizing Model DELTA4-B (4
position) coax antenna switches. Antenna types and rigs are samples from a customer request.
Model DELTA-2B (2 position) switches can be used for lesser antenna/rig requirements.
HF VHF/ to COM loop scanner
ant UHF on SW 2 ant antenna
SWITCH 1
IC7000 KX-3 scanner
SWITCH 2
As an example of the operation, if you placed
switch 1 in position 1 and switch 2 in position 1,
the “HF antenna” would routed through to the “IC
7000”.
Note the “COM” connector on switch 1 is routed
to the “COM” connector on switch 2 with a jumper
coax. Then, both switches have complete
versatility for multiple rigs and multiple antennas.
WARNING: DO NOT tighten D-4 ARC-PLUG pill. It
is factory adjusted. Over tightening will damage
internal switch circuits and will not be covered by
warranty.
