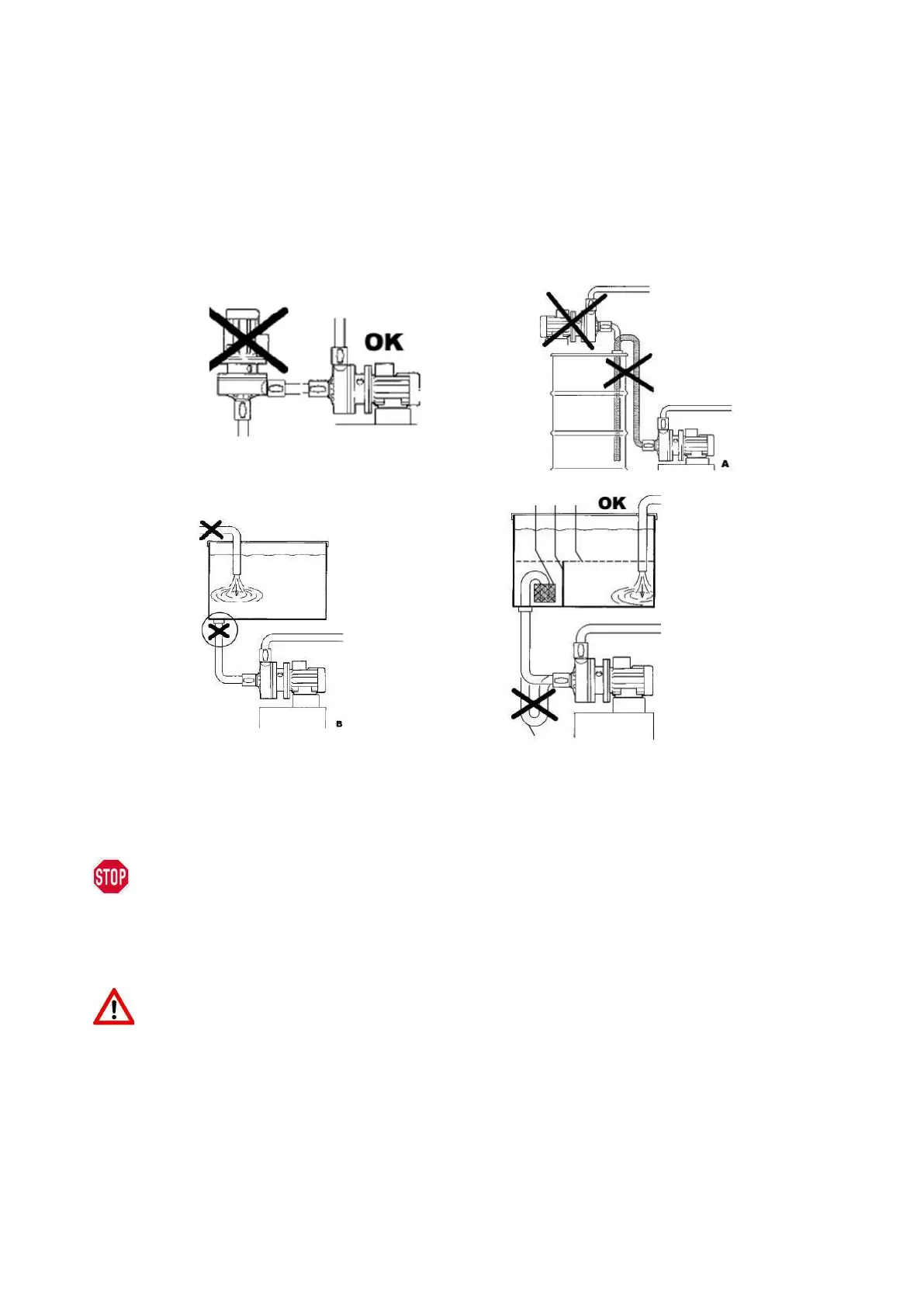

E – the dip tube of the suction pipe must be housed inside the weir and away from vortexes,
turbulence and open drains
F – fit a level regulator device that can halt the motor when the pump is under the minimum level
D E F
C
2.4 Installation
AlphaDynamic Pumps SA is not responsible for injury to people or damage to things caused by the
wrong installation of the pump or installation executed by non-qualified personnel. Install the pump
in a position that guarantees a simple use.
The unit motor/pump has to be fixed on a rigid structure that will enable the support of the entire
structure. Make sure that the pump is fixed on a plane surface, in this case use shims under the base-
plate of the motor. If necessary use "bumpers" to reduce vibrations towards the fixing surface.
