2.2.4 Technical specifications
The data related to performance refer to standard procedures. The NOMINAL flow and the MAX head values
refer to pumping of water at 18°C with free-flow suction and delivery.
ADH – TYPE B ADH – TYPE A
2.3 Storage
If the pump is kept in the warehouse, make sure that it's placed in a dry and protected position.
Always use the original package or an equivalent protection. If the pump has to remain stored for a
long period and/or in particularly damp places the use of hygroscopic substance (silica gel) is
recommended to prevent damages.

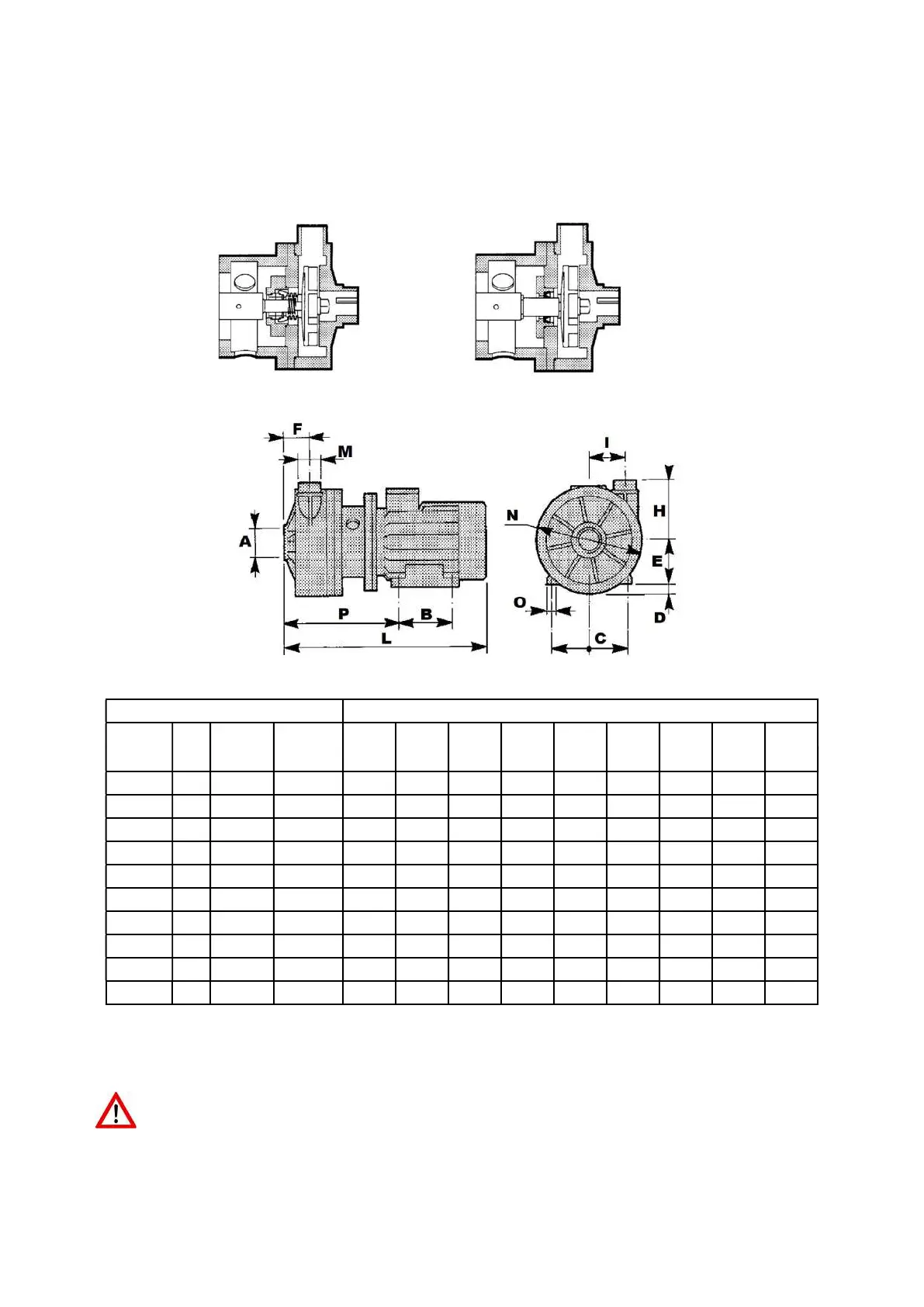

Pump Dimensions –mm-
type KW
SUCTION DELIVERY
L
D E F H I C B N
ΦΑ ΦΑ
ADH 080 0.55 1 1/2’’ f 1" m 325 1 71 47 89 48 112 90 140
ADH100 0.55 1 1/2’’ f 1" m 325 1 71 47 89 48 112 90 140
ADH 110 1.1 2" f 1 1/2" m 406 20 80 75 130 40 140 100 203
ADH 120 1.5 2" f 1 1/2" m 456 10 90 75 130 40 140 100 203
ADH 130 2.2 2" f 1 1/2" m 468 10 90 75 130 40 140 125 203
ADH 140 3.0 2" f 1 1/2" m 505 2 100 75 130 40 160 140 203
ADH 150 4.0 2 1/2’ ’f 2" m 529 12 112 67,5 153 97 190 140 274
ADH 155 5.5 2 1/2’’ f 2" m 620 18 132 67,5 153 97 216 140 274
ADH 160 7.5 2 1/2’’ f 2" m 628 18 132 67,5 153 97 216 140 274
ADH 180 11 2 1/2’’ f 2" m 695 18 132 68 158 96 216 178 300
