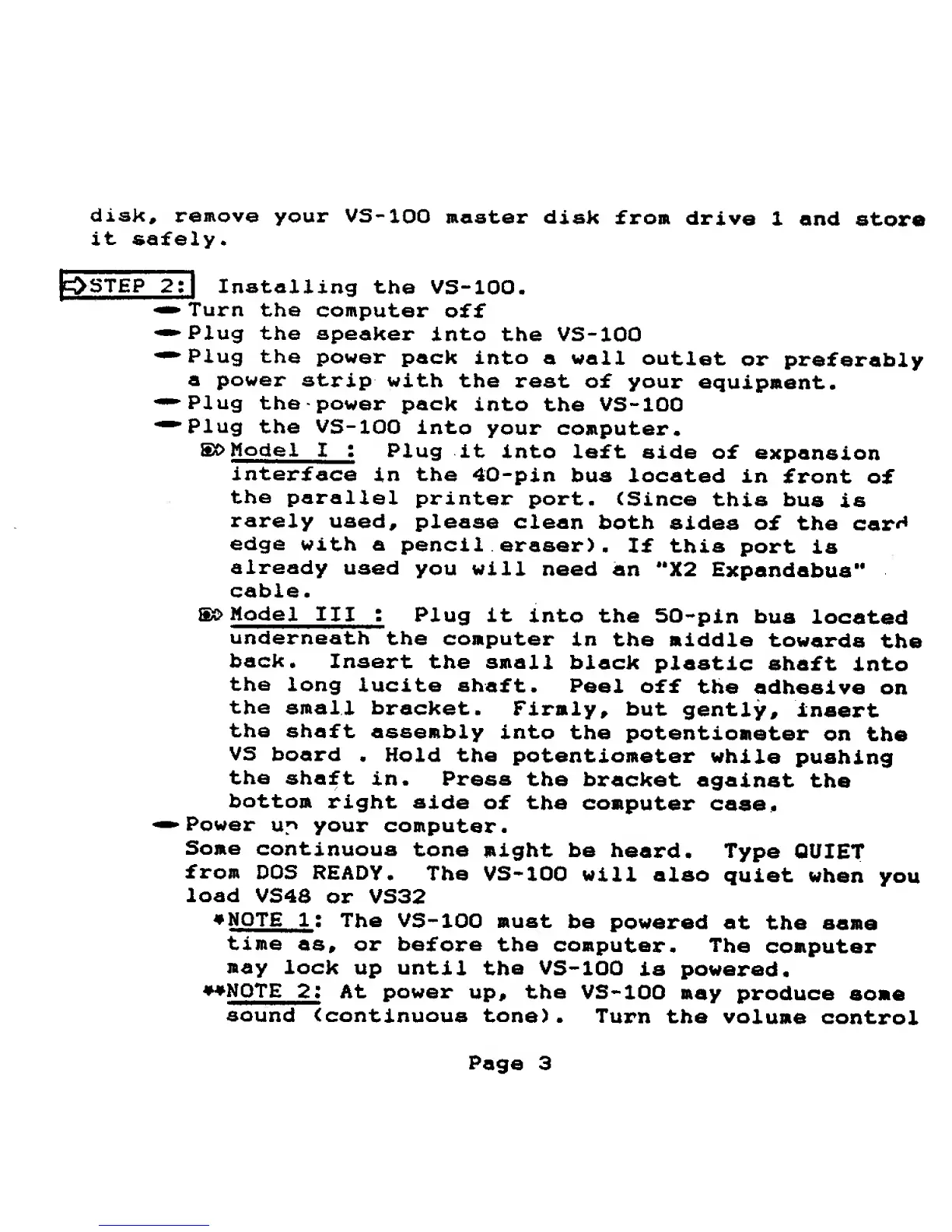

Alpha VS 100 - VS-100 Hardware Installation

disk,
remove
your VS-100
master
disk
from
drive
1 and
store
it
safely.
fosTEP
2TI
Installing
the VS-100.
*»
Turn
the
computer
off
•
Plug
the
speaker
into
the VS-100
—
Plug
the
power
pack
into
a wall
outlet
or
preferably
a power
strip
with
the
rest of
your
equipment.
-"•-Plug
the
power pack
into
the
VS-100
—"Plug
the VS-100
into
your
computer.
Bt> Model
I :
Plug
it
into left
side of
expansion
interface
in
the
40-pin bus located
in
front
of
the
parallel
printer port.
(Since
this
bus
is
rarely
used,
please
clean
both
sides
of the carH
edge
with a
pencil
eraser)
. If
this
port
is
already
used
you
will
need
an "X2
Expandabus"
cable.
5X> Model
III
:
Plug it
into the
50-pin bus
located
underneath
the computer
in the
middle
towards
the
back.
Insert
the small
black
plastic
shaft
into
the
long
lucite
shaft.
Peel
off
the
adhesive
on
the
small
bracket.
Firmly,
but
gently,
insert
the
shaft
assembly
into
the
potentiometer
on
the
VS
board
.
Hold the
potentiometer
while
pushing
the
shaft
in. Press
the
bracket
against
the
bottom
right
side
of
the
computer
case.
•
Power
up
your
computer.
Some
continuous
tone
might
be
heard.
Type
QUIET
from
DOS
READY.
The
VS-100
will
also
quiet
when
you
load
VS48
or VS32
NOTE
1
;
The
VS-100
must
be
powered
at
the
same
time
as, or
before
the
computer.
The
computer
may
lock
up until
the VS-100
is powered.
NOTE
2: At power
up, the VS-100
may
produce
some
sound
(continuous tone).
Turn
the
volume
control
Page
3
