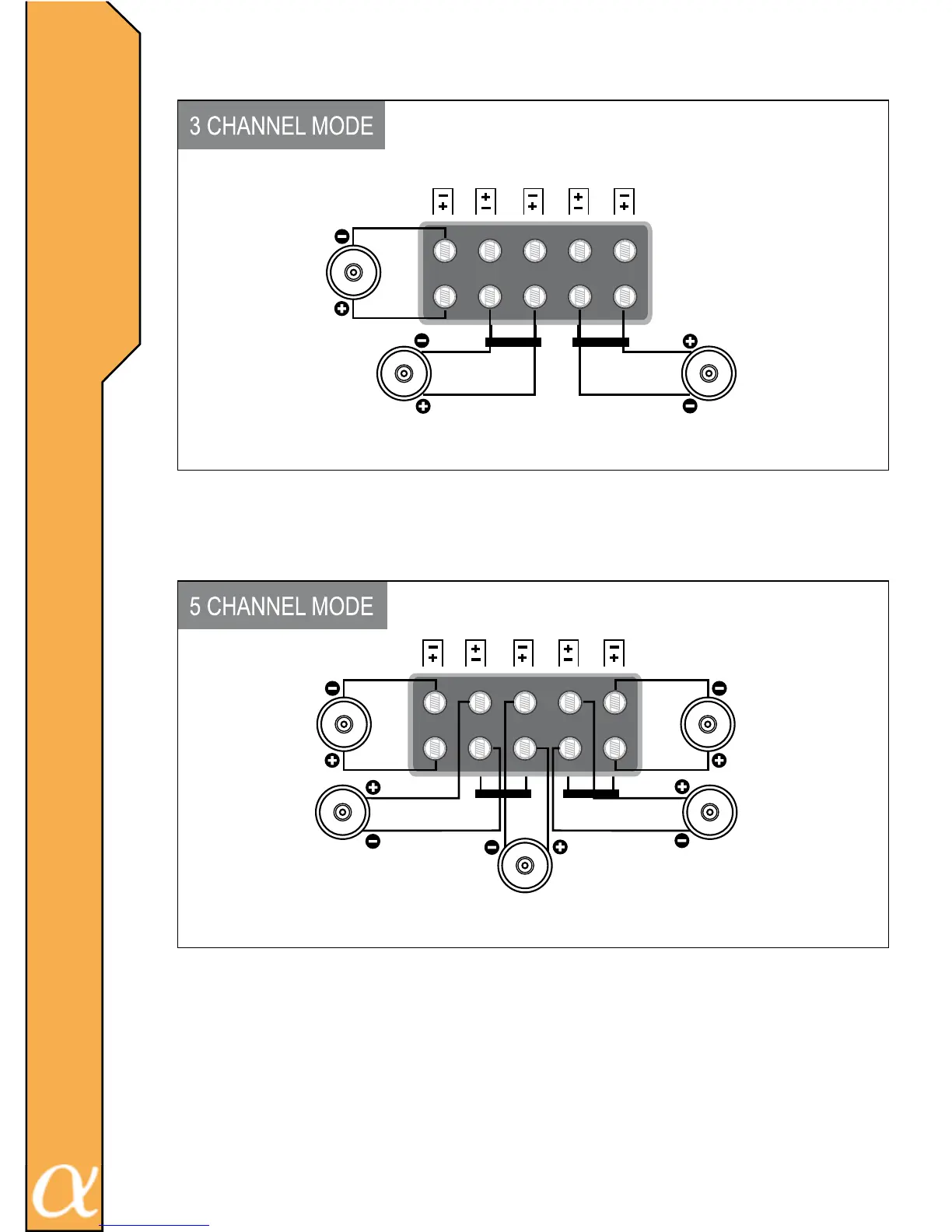

Alphasonik PM12005E - Page 22

BRIDGEDBRIDGED
CH5 CH1CH2CH3CH4
PM12005E
CH 3 / 4
4 ~ 8 OHM
CH 5
2 ~ 8 OHM
CH1 / 2
4 ~ 8 OHM
BRIDGEDBRIDGED
CH5 CH1CH2CH3CH4
CH 5
2 ~ 8 OHM
CH 1
2 ~ 8 OHM
CH 2
2 ~ 8 OHM
CH 4
2 ~ 8 OHM
CH 3
2 ~ 8 OHM
W
I
R
I
N
G
D
I
A
G
R
A
M
S
21
