Alpine Spas Gazebo - Page 3

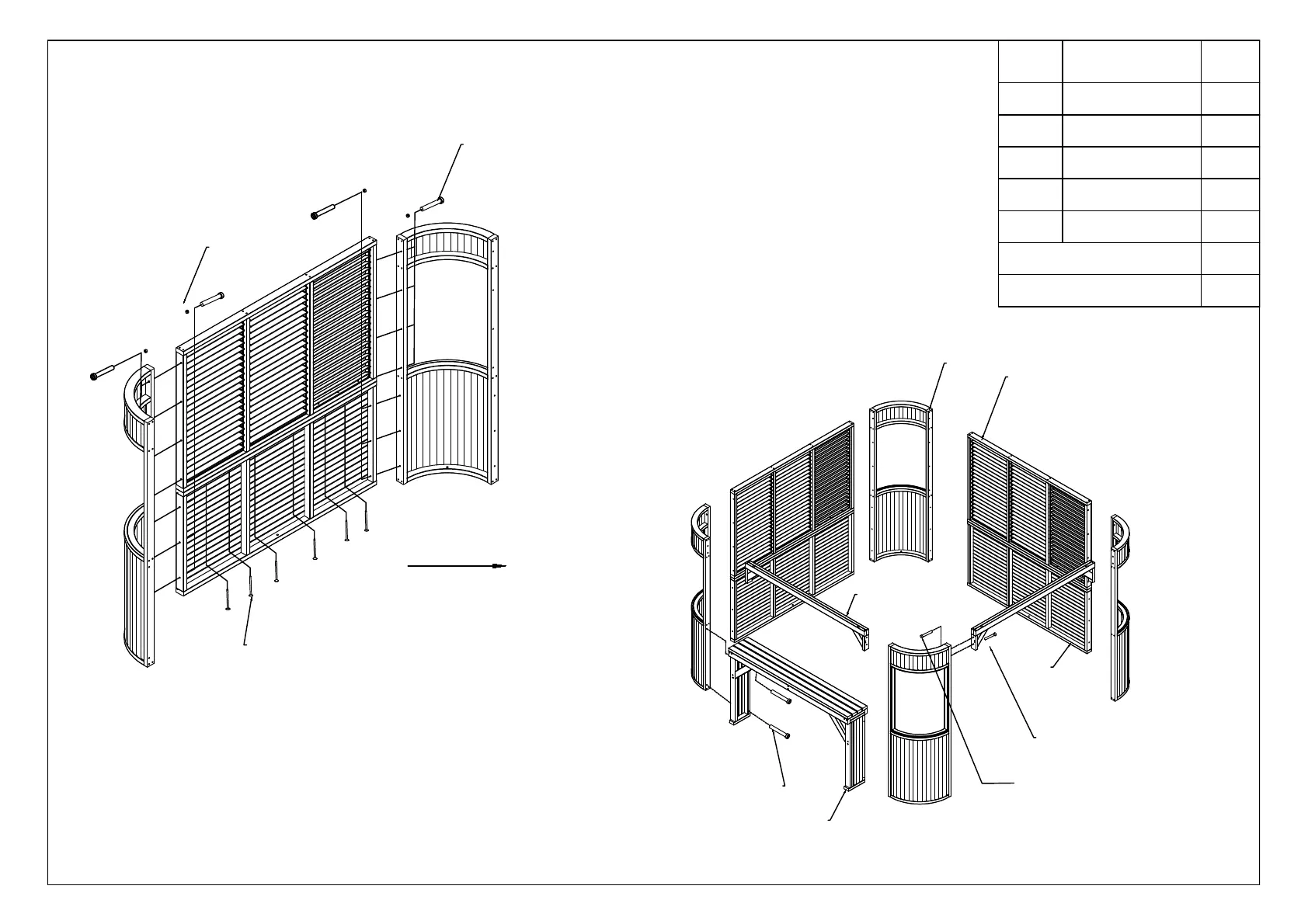

Drawing③
flange bolt M8*80
1.use screw M8*50 to connect connect bottom
and blind window。
2.use screw CT-M5*50 to connect bottom seal
plate and blind window。
3.use screw M8*50 to connect bar table and
corner。
4.Link the girde and conner by screw M8*50.
tapping screw CT-M5*50
Item No.
Name
Quantity
①
corner
4pcs
②
blind window
2pcs
③
bottom seal plate 2pcs
④
bar table
1pcs
⑤
2pcs
40pcs
tapping screw CT-M5*50
12pcs
hexagon screw M8*50
beam
④
①
②
③
⑤
hexagon screw M8*50
hexagon screw M8*50
flange nut M8*80
flange bolt M8*80
