7980M

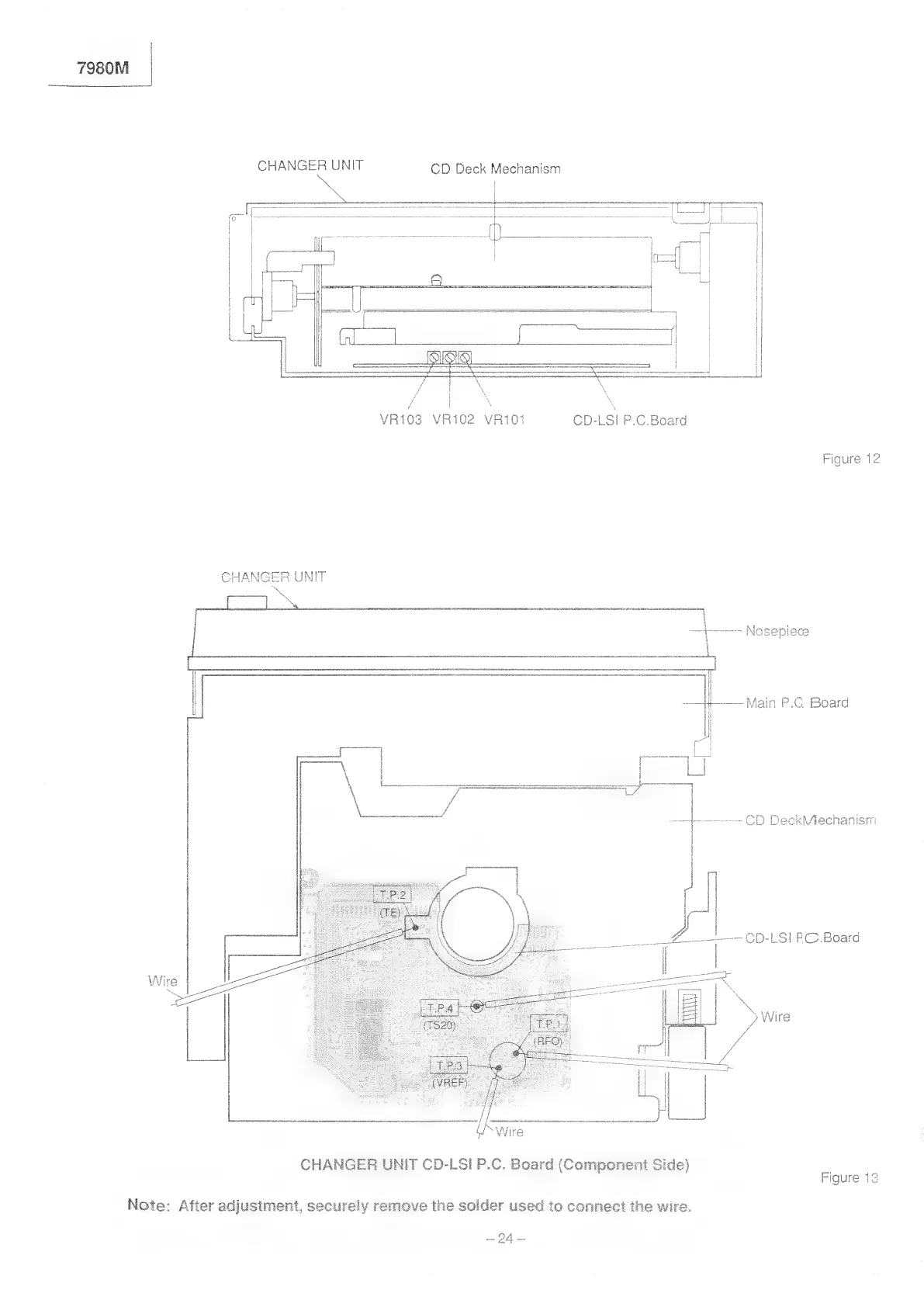

CHANGER UNIT CD Deck Mechanism
VR103 VR102 VR101 CD-LSI P.C.Board
Figure 12
CHANGER UNIT
Nosepiece
Main P.C. Board
CD DeckMiechanism
CD-LS| PC.Board
Wire
Wire
CHANGER UNIT CD-LSI P.C. Board (Component Side)
Figure 13
Note: After adjustment, securely remove the solder used to connect the wire.
24 —
