7980M

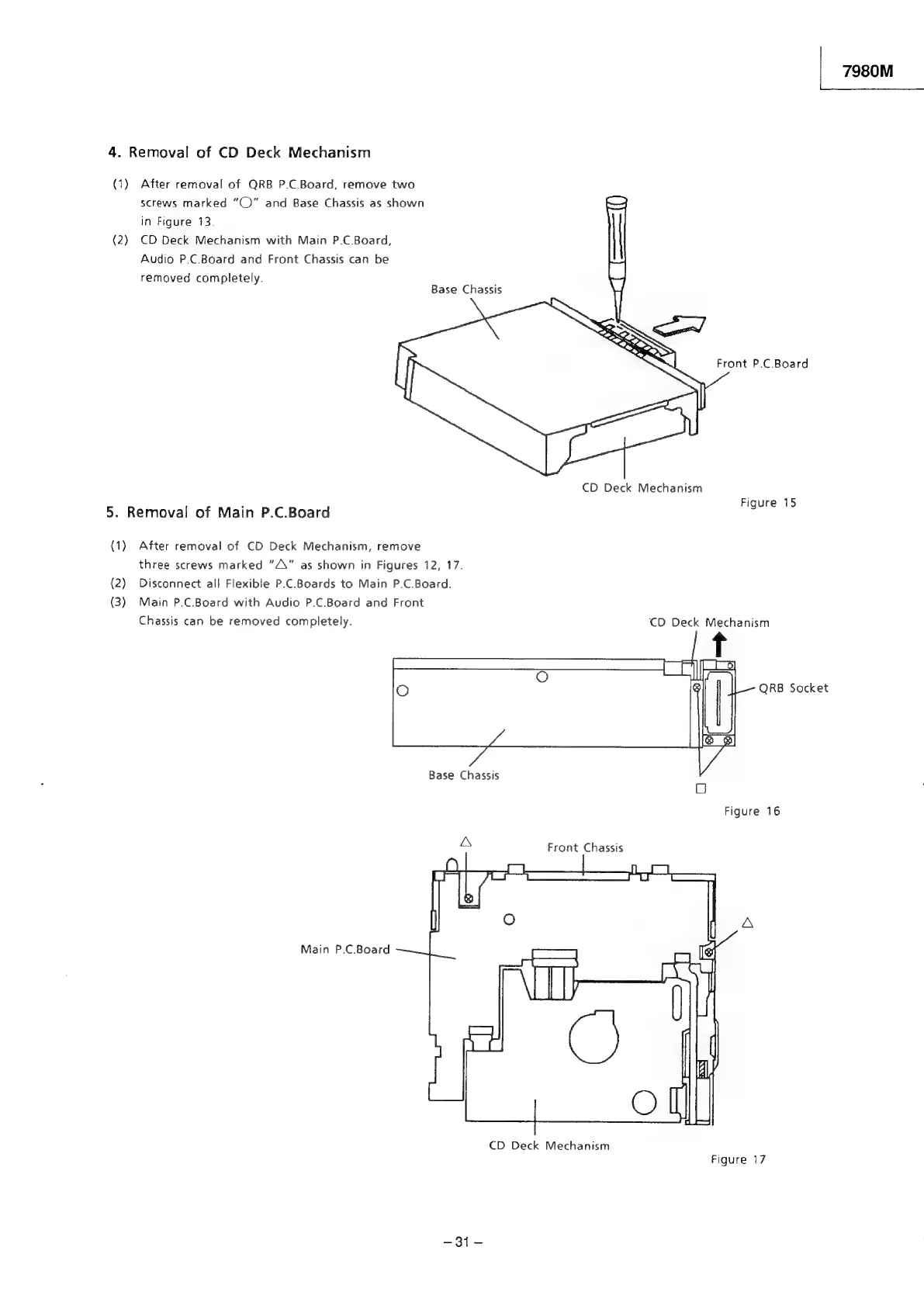

4. Removal of CD Deck Mechanism
(1) After removal of QRB P.C.Board, remove two
screws marked “C)" and Base Chassis as shown
in Figure 13.
(2) CD Deck Mechanism with Main P.C.Board,
Audio P.C.Board and Front Chassis can be
removed completely.
Base Chassis
Front P.C.Board
CD Deck Mechanism
A Figure 15
5. Removal of Main P.C.Board
(1) After removal of CD Deck Mechanism, remove
three screws marked “A\" as shown in Figures 12, 17.
(2) Disconnect all Flexible P.C.Boards to Main P.C.Board.
(3) Main P.C.Board with Audio P.C.Board and Front
Chassis can be removed completely. CD Deck Mechanism
QRB Socket
Base Chassis
Front Chassis
Main P.C.Board
CD Deck Mechanism
Figure 17
