7980M

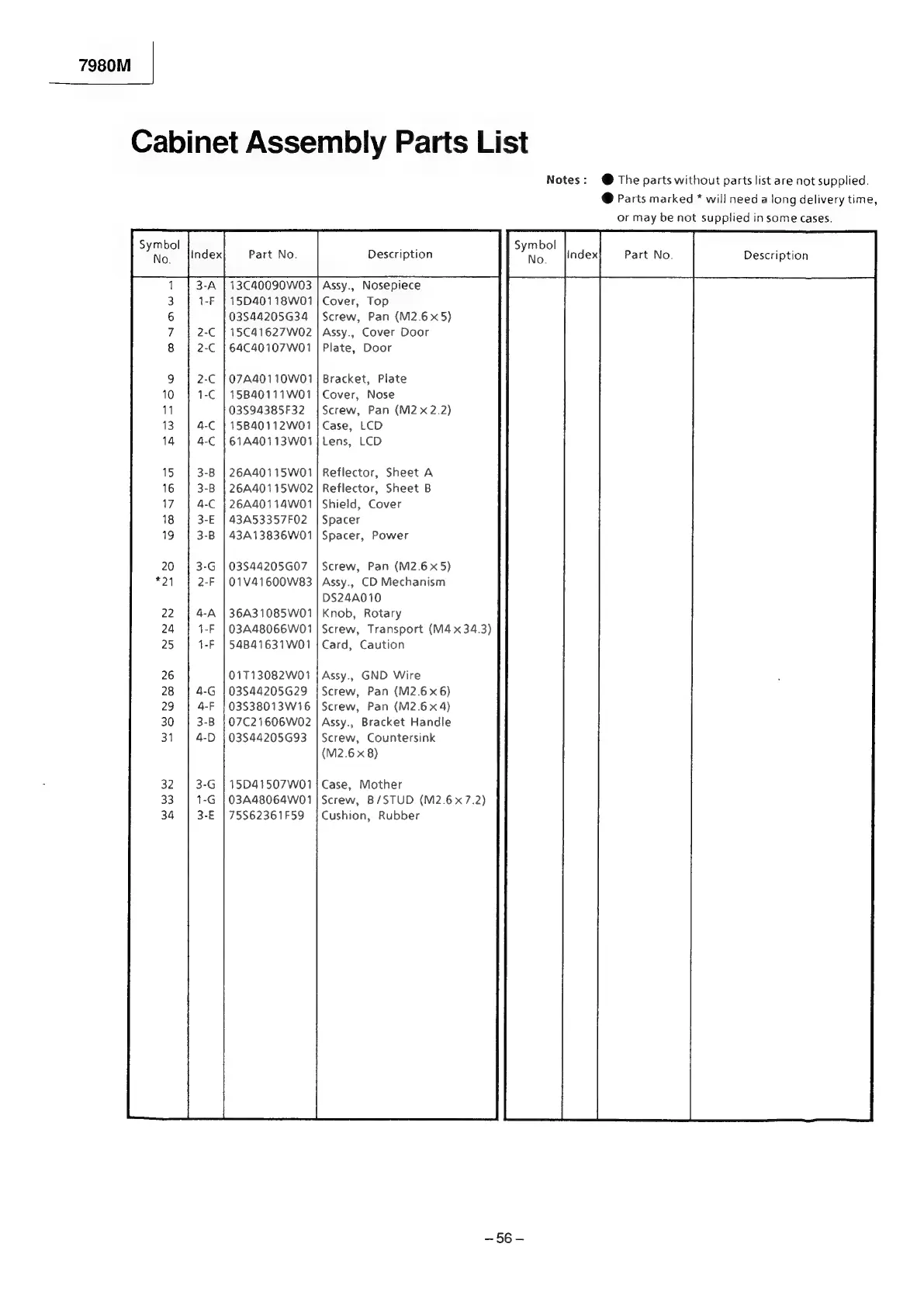

Cabinet Assembly Parts List
Symbol
No. {index Part No. Description
13C40090W03 | Assy., Nosepiece
15D40118W01| Cover, Top
03844205G34 | Screw, Pan (M2.6x5)
15C41627W02 | Assy., Cover Door
64C40107W01 | Plate, Door
Notes: @ The parts without parts list are not supplied.
@ Parts marked * will need a long delivery time,
or may be not supplied in some cases.
Symbol
No. index Part No. Description
-—56—-
07A40110W01
15B40111W01
03S94385F32
15B40112W01
61A40113W01
Bracket, Plate
Cover, Nose
Screw, Pan (M2 x 2.2)
Case, LCD
Lens, LCD
26A40115W01] Reflector, Sheet A
26A40115W02]| Reflector, Sheet B
26A40114W01]| Shield, Cover
43A53357F02 | Spacer
43A13836W01| Spacer, Power
03544205G07
01V41600W83
Screw, Pan (M2.6x5)
Assy., CD Mechanism
DS24A010
Knob, Rotary
Screw, Transport (M4 x 34.3)
Card, Caution
36A31085W01
03A48066W01
54B41631W01
01T13082W01
03$44205G29
03S38013W16
07C21606W02
03844205G93
Assy., GND Wire
Screw, Pan (M2.6x 6)
Screw, Pan (M2.6 x 4)
Assy., Bracket Handle
Screw, Countersink
(M2.6 x 8)
15D41507W01
03A48064W01
75S62361F59
Case, Mother
Screw, B/STUD (M2.6 x 7.2)
Cushion, Rubber
