Alpine CDE-130RR - Connections

19-EN

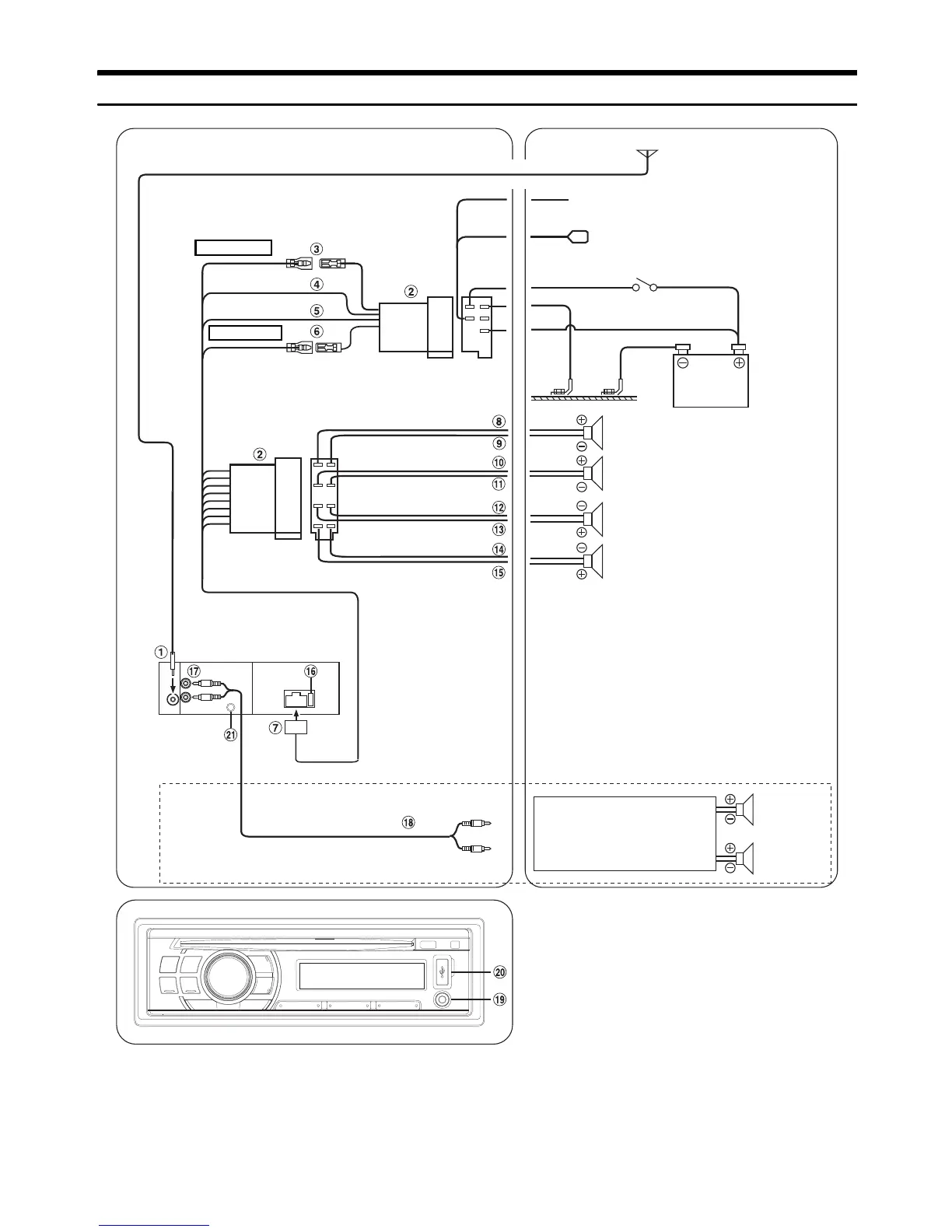

Connections
Antenna
(Red)
(Blue/White)
BATTERY
(Green)
(Green/Black)
(White/Black)
(Grey)
(Violet/Black)
(Violet)
To Power Antenna
To Amplifier
Ignition Key
Battery
Speakers
Rear Left
Front Right
Rear Right
(White)
Front Left
IGNITION
(Grey/Black)
Front Left
Front Right
Speakers
Amplifier
(Black)
(Yellow)
