Jeep Wrangler
i509-WRA-JK 20220404v1
8/22

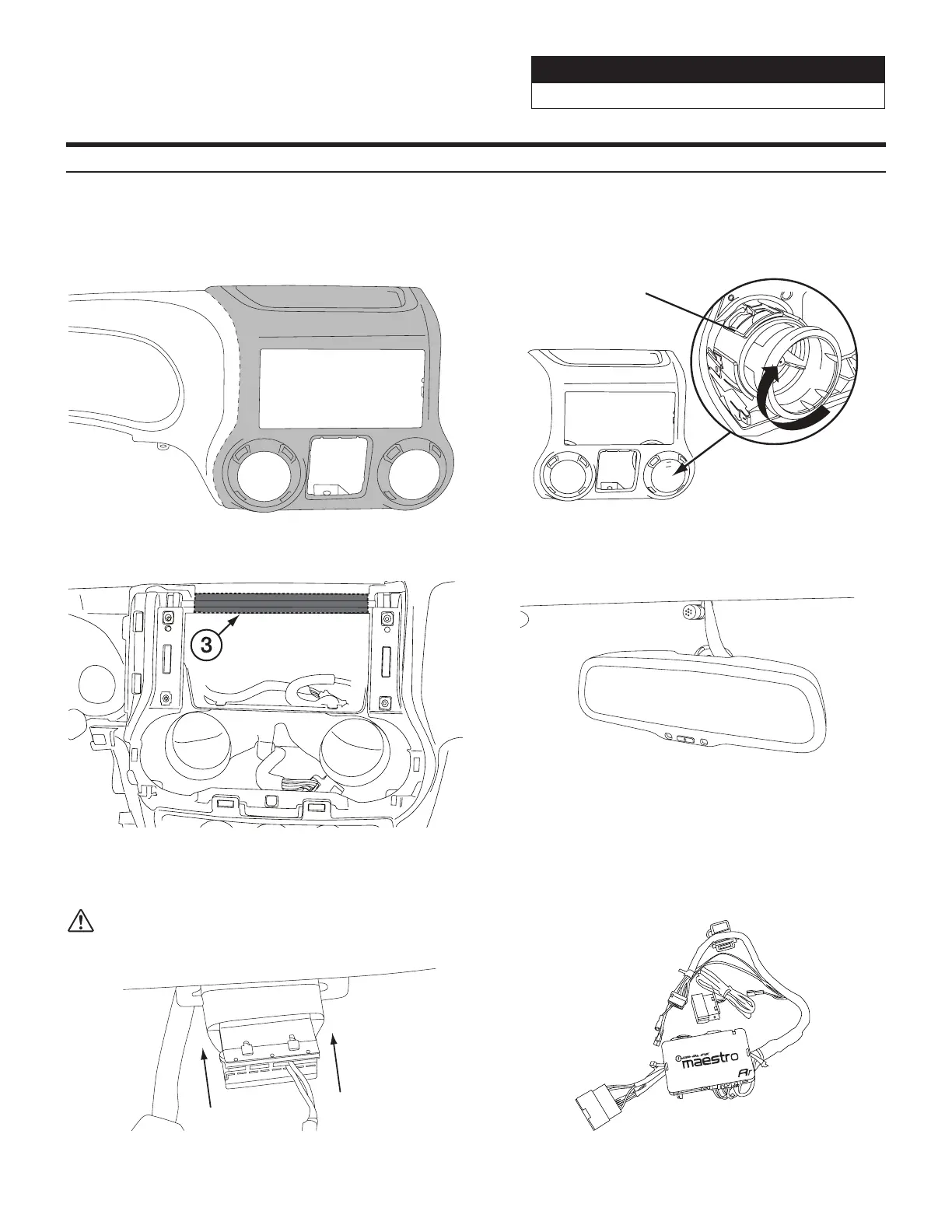

Installation Instructions
2 Remove the vents from the radio section on the
OEM dash panel by pressing down on the lock tab
and turning right. Mount vents on to the i509-WRA-
JK bezel.
Rear view
4 Mount the microphone as illustrated and run the
cable to the radio cavity.
6 Attach the Maestro to the main harness.
*See page 13 for more details.
1 The factory dash panel needs to be trimmed to
allow the new i509-WRA-JK bezel to fit into place.
Remove the highlighted area by cutting along the
dashed line.
3 Use a cutting tool to trim the highlighted area
shown below.
5 Plug the OBDII connector on to the OBDII port
below the driver side dash and run the extension to
the radio cavity.
Avoid any sharp edges or interfering with
any safety equipment.
