70-EN

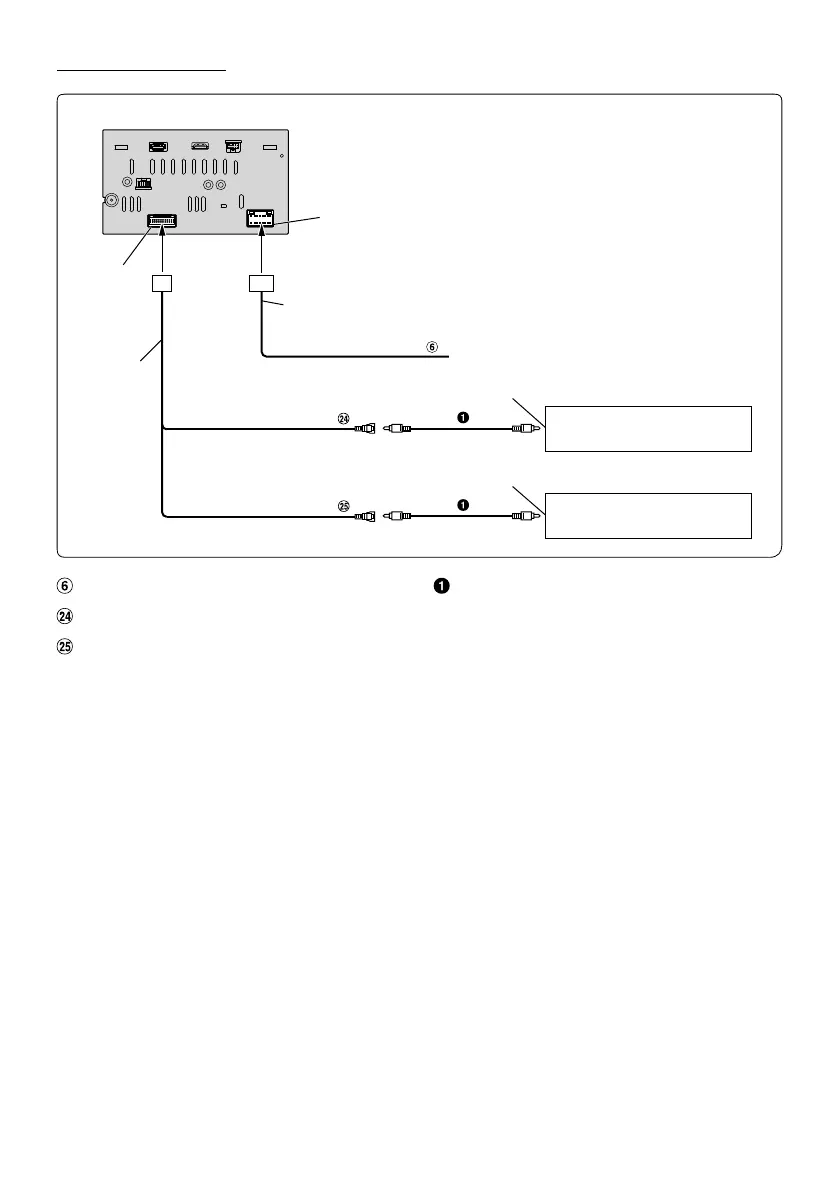

Connection of a Camera
AUX/PRE
OUT/
CAMERA
Connector
Power Supply Connector
Power cable
PRE OUT
cable
To Video Output terminal
Reverse
(Orange/White)
Connect to the plus side of the car’s reverse lamp.
Camera with RCA video output
(sold separately)
Camera with RCA video output
(sold separately)
REAR VIEW CAMERA
FRONT VIEW CAMERA
To Video Output terminal
Reverse Lead (Orange/White)
REAR CAMERA Input RCA Connector
FRONT CAMERA Input RCA Connector
RCA Extension Cable (sold separately)
