96-EN

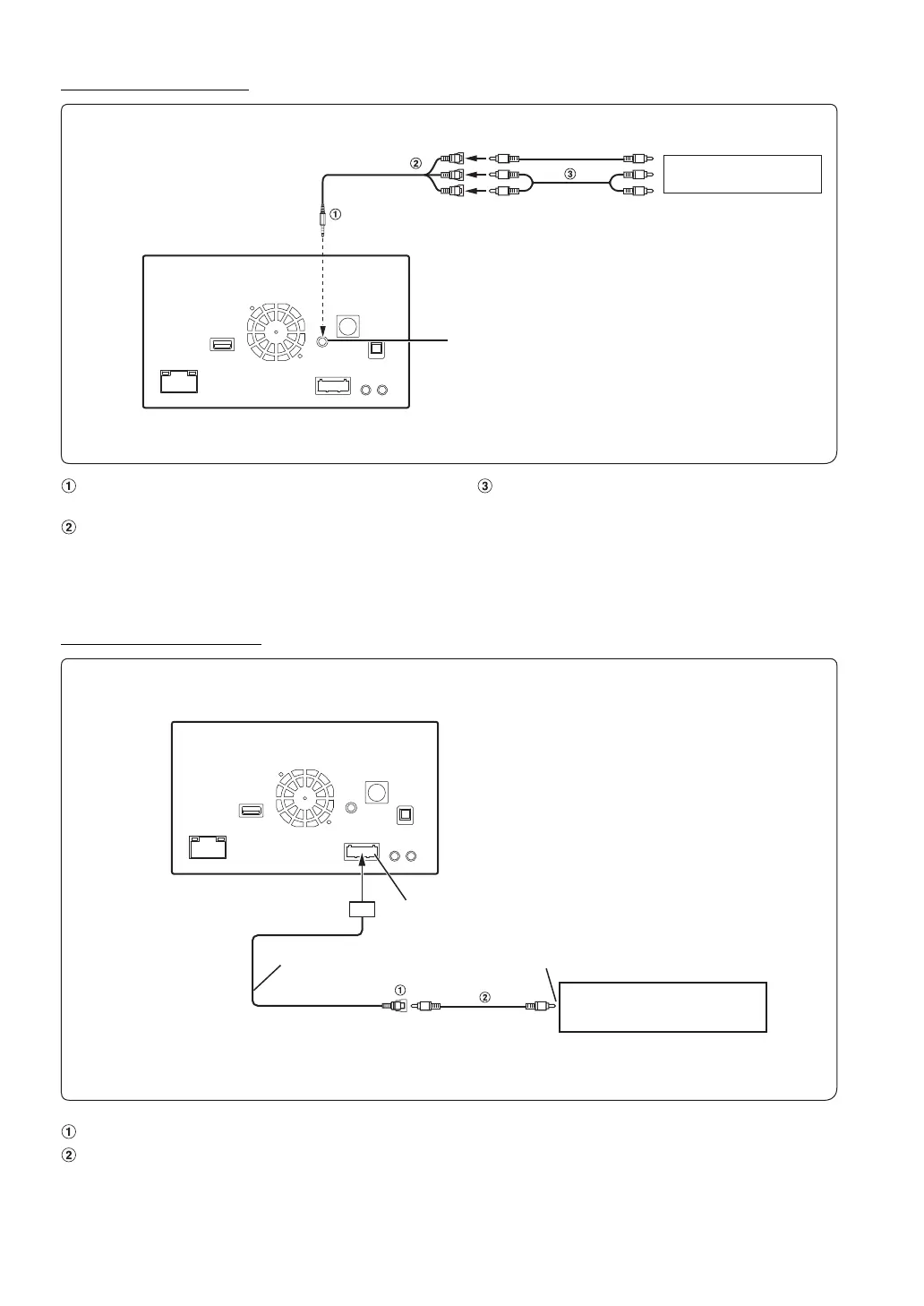

Connection of a DVD Player
AV/RCA interface cable (4-pole mini AV plug to 3-
RCA) (Sold separately)
Video/Audio Input Connectors
YELLOW is for input video, RED is right and WHITE is left
input the audio.
RCA Extension Cable (Sold Separately)
• You can change the name of an external device. Refer to “Setting the AUX Mode” (page 44).
• To connect an external input device to the iPod VIDEO connector, set “AUX In” to “AUX.” Refer to “Setting the AUX Mode” (page 44).
Connection of a Rear Monitor
Video Output Connector (AUX OUTPUT)
RCA Extension Cable (Sold Separately)
iPod VIDEO input connector
To Video Output terminal
To Audio Output terminal
DVD Player (Sold separately)
(Yellow)
CAMERA/AUX/PRE OUT cable
To Rear Monitor Input terminal
Rear Monitor
(Sold separately)
CAMERA/AUX/PRE OUT Connector
To Next Page
