110-EN
INE-W987D
5

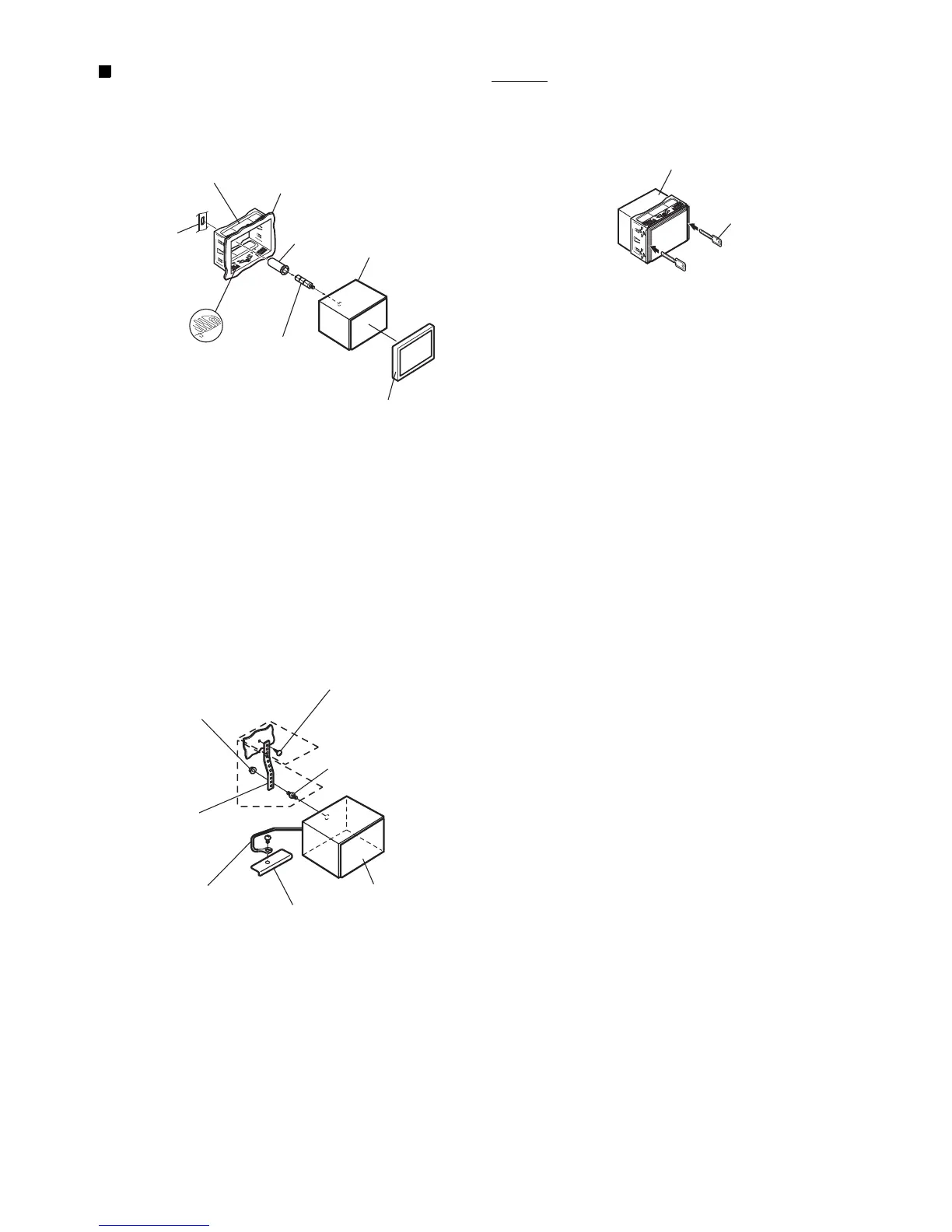

Remove the mounting sleeve from the main unit (see
“Removal” on page 110).
Slide the unit into the mounting sleeve and secure it.
*
1
If the installed mounting sleeve is loose in the dashboard, the
pressure plates may be bent slightly to remedy the problem.
*
2
The supplied face plate may be mounted.
6
When your vehicle has the Bracket, mount the long
hex bolt onto the rear panel of the X800D-U/
INE-W987D and put the Rubber Cap on the hex bolt.
If your vehicle does not have the Mounting Support,
reinforce the head unit with the metal mounting
strap (not supplied). Secure the ground lead of the
unit to a clean metal spot using a screw (*1) already
attached to the vehicle’s chassis. Connect all the
leads of the X800D-U/INE-W987D according to
details described in the CONNECTION section.
• For the screw marked “*2”, use an appropriate screw for the
chosen mounting location.
7
Slide the X800D-U/INE-W987D into the dashboard
until it clicks. This ensures that the unit is properly
locked and will not accidentally come out from the
dashboard.
Removal
1. Insert the bracket keys into the unit, along the guides
on either side. The unit can now be removed from the
mounting sleeve.
2. Pull the unit out, keeping it unlocked as you do so.
Mounting Sleeve
(Included)
Dashboard
Rubber Cap
(Included)
Face Plate
*
2
(Included)
This unit
Hex Bolt
(Included)
Bracket key
Pressure
Plates
*
1
Hex Nut (M5)
Screw
Bolt Stud
This unit
Chassis
Ground Lead
Metal
Mounting
Strap
*
2
*
1
This unit
Bracket keys
(Included)
To Next Page
