ReServ - 7 -

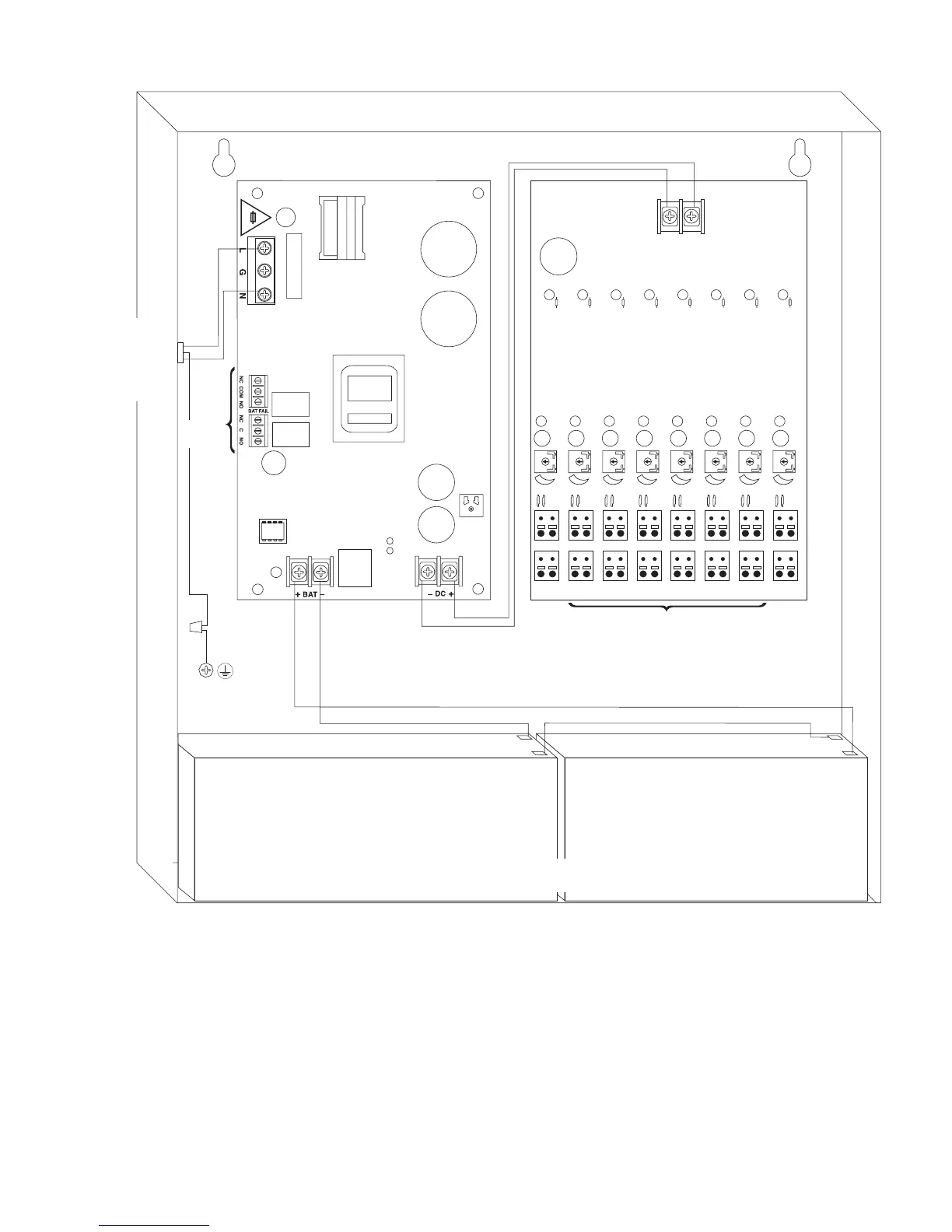

Fig. 3 - ReServ3
P
N
Input
--- 24VDC +
1 OUT 2
1,2 V adjust
Green
Lead
12VDC Rechargeable Battery
(order separately)
12VDC Rechargeable Battery
(order separately)
Supervised - Non power-limited
CAUTION: Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteires according to the instructions.
Non power-limited
5A
250V
Unswitched
115VAC
60Hz, 3.5A
power mains
(non power-limited)
Note: Two (2) 12VDC rechargeable batteries connected in series required.
12VDC
Power-limited Outputs
P
N
3 OUT 4
3,4 V adjust
P
N
5 OUT 6
5,6 V adjust
P
N
7 OUT 8
7,8 V adjust
P
N
9 OUT 10
9,10 V adjust
P
N
11 OUT 12
11,12 V adjust
P
N
13 OUT 14
13,14 V adjust
P
N
15 OUT 16
15,16 V adjust
power-
limited
AC
DC
To Next Page
