Aluprof DM35S - Electrical Connections and Limit Switch Setting; Electrical Connections; Setting the Limit Switches

- 5 -

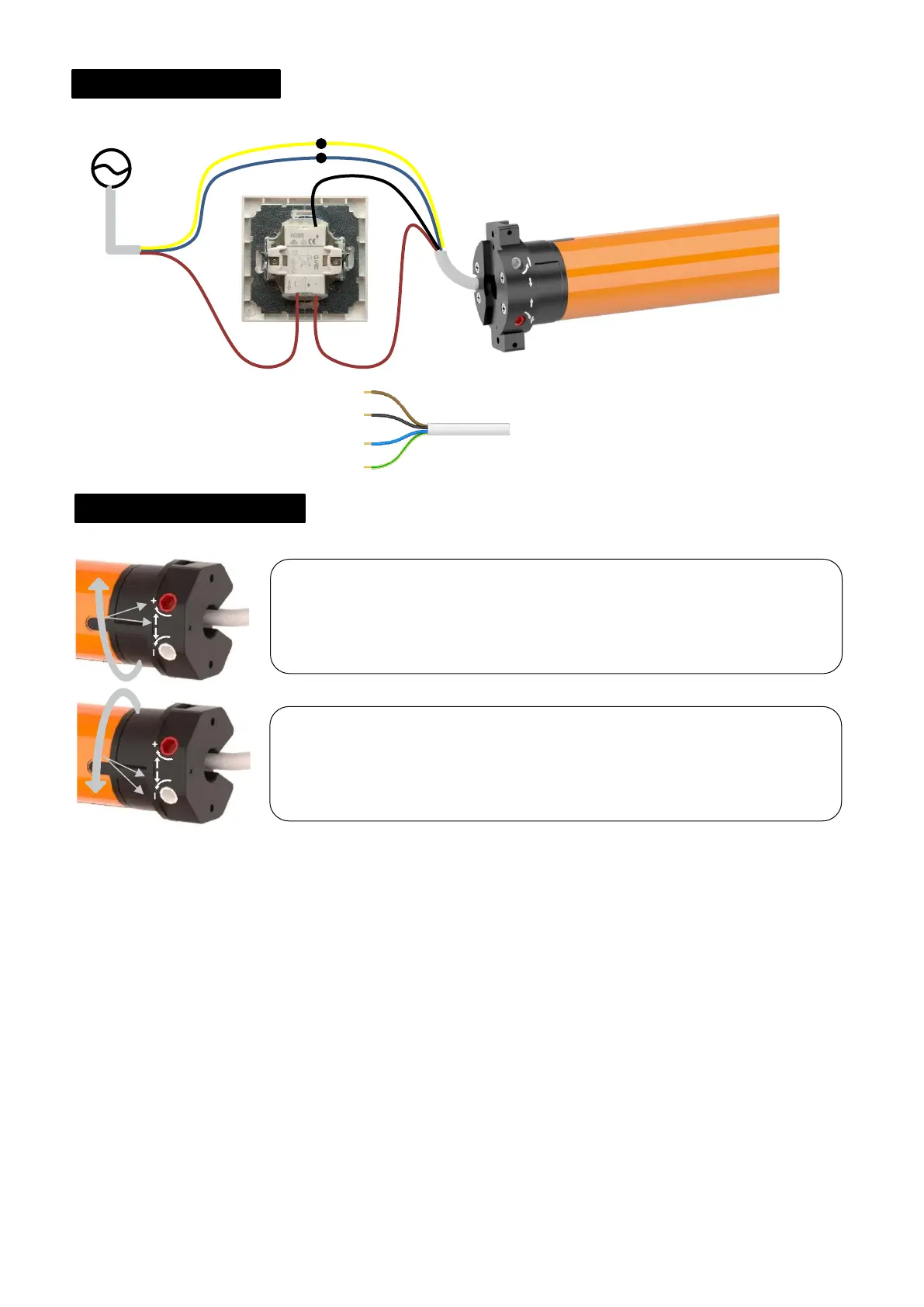

2. Setting the limit swiches
1. Start the closing mode of the shutter until it stops in the requested position
(if the roller shutter is fully closed and the motor is still working, it should be stopped and proceed to step 3).
2. Regulate the knob (marked ⇧ ) in the (+) direction set the requested position of the shutter.
3. Raise the shutter and regulate the knob in the (-) direction and repeat the procedure if the requested position is
crossed.
1. Start the opening mode of the shutter until it stops in the requested position
(if the roller shutter is still opening and the motor is still working it should be stopped and proceed to step 3).
2. Regulate the knob (marked ⇩ ) in the (+) direction set the requested position of the shutter.
3. Raise the shutter and regulate the knob in the (-) direction and repeat the procedure if the requested position is
crossed.
1. Electrical connections
Power 230V / 50 Hz
Brown wire - phase (direction 1)
Black wire - phase (direction 2)
Blue wire -
neutral
Yellow / green wire -
ground
