Instruction for montage of outside roller shutters in
ADAPTING system, type SK
and in
ADAPTING system, type SK with MOSKITO.
SK_+_moskito_m_uk We reserve the right to any technical change. Valid on: 2009-06-02
51
52
53
54
55
56
57
58
59

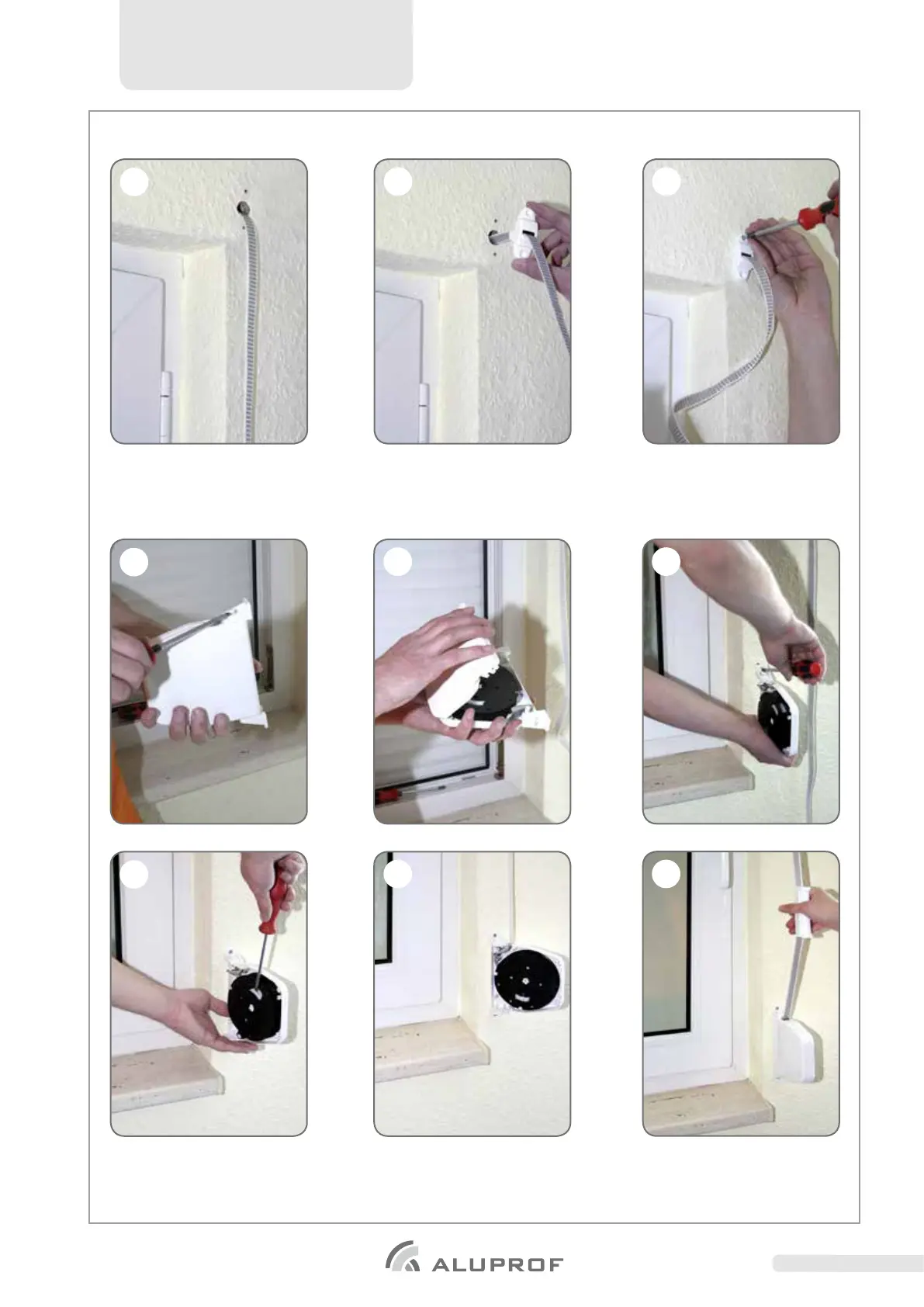

g) From the inside of the room, at the outlet of the hole [51] mount the strap (rope) guide [52] by using the screws [53].
h) Pull the joints out [54] and lever up one of the casing’s side with the screwdriver – open the box coiler [55]. Screw the box
  coilertothewindowframeusingscrews[56].Hookstrap(rope)tothefastener,andsimultaneouslykeeprmlythe
spring’s cover, then rotate and release the blockade [57]. When the box coiler is mounted and curtain is dropped,
2-3 coils of strap / rope should be winded up on the spring’s drum [58]. Close the box coiler’s casing [59].
i) Check if the electric connections are made correctly.
j) Perform the attempt of roller shutter’s operating.
