Instruction for montage of outside roller shutters in
ADAPTING system, type SK
and in
ADAPTING system, type SK with MOSKITO.
SK_+_moskito_m_uk
We reserve the right to any technical change. Valid on: 2009-06-02
71
72
74
76
77
75
73

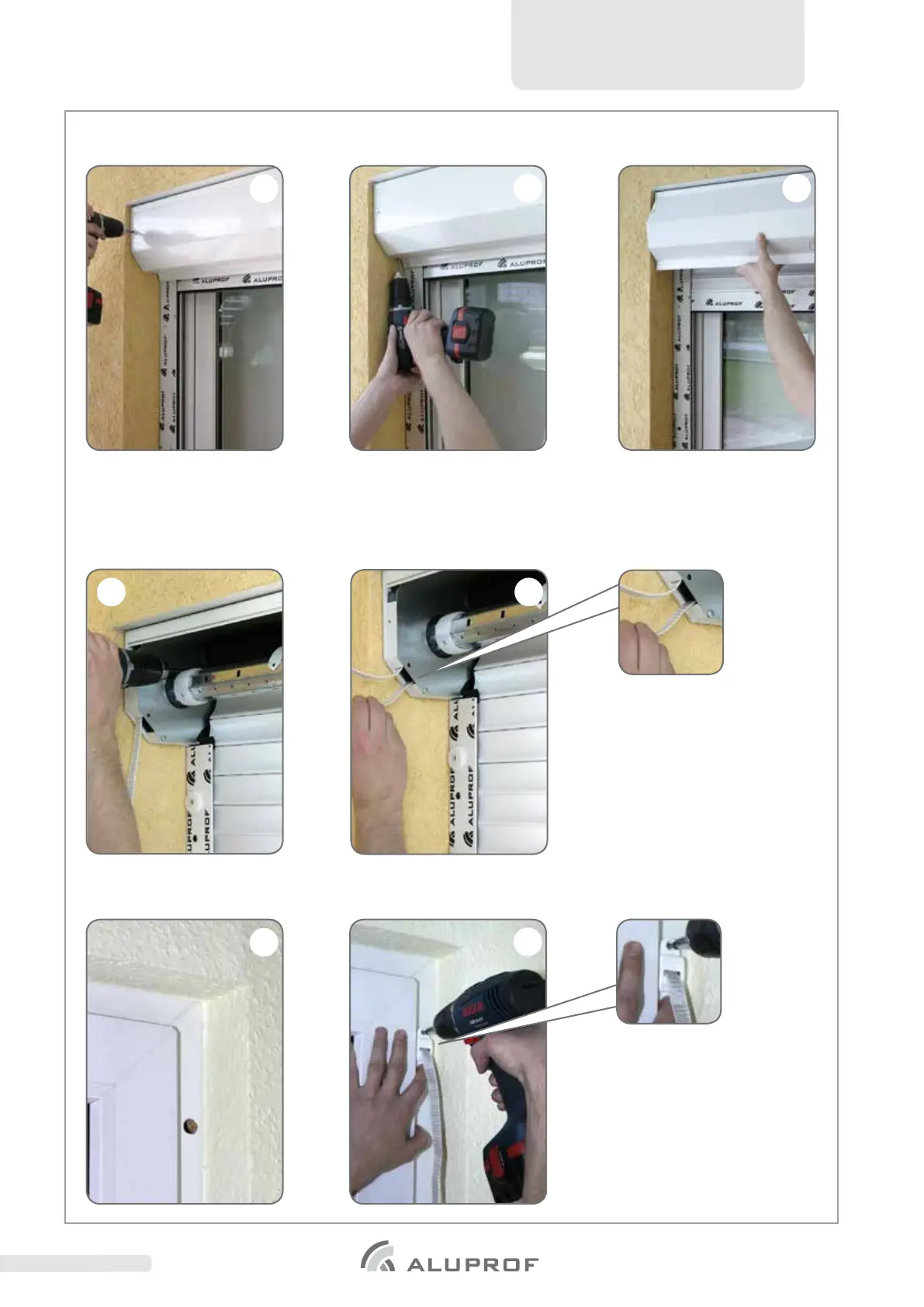

d) Unscrew screws [71], [72] and open the shutter box (base part) [73]
e) Lower the roller shutter’s curtain to the windowsill and screw the shutter box to basis (on either side) [74]. Pull the strap,
(rope) through the hole to the inside of the room [75]. In case of roller shutter with electric drive, adjust additionally the
endstop (by using the assembly wire), and then connect the control elements in accordance with assembly instruction
(for the drive, control unit, driver etc.). Take out the power cord in accordance with plans of the wiring.
f) From the inside of the room, at the outlet of the hole [76] mount the strap (rope) guide to the window frame with
the screws [77].
