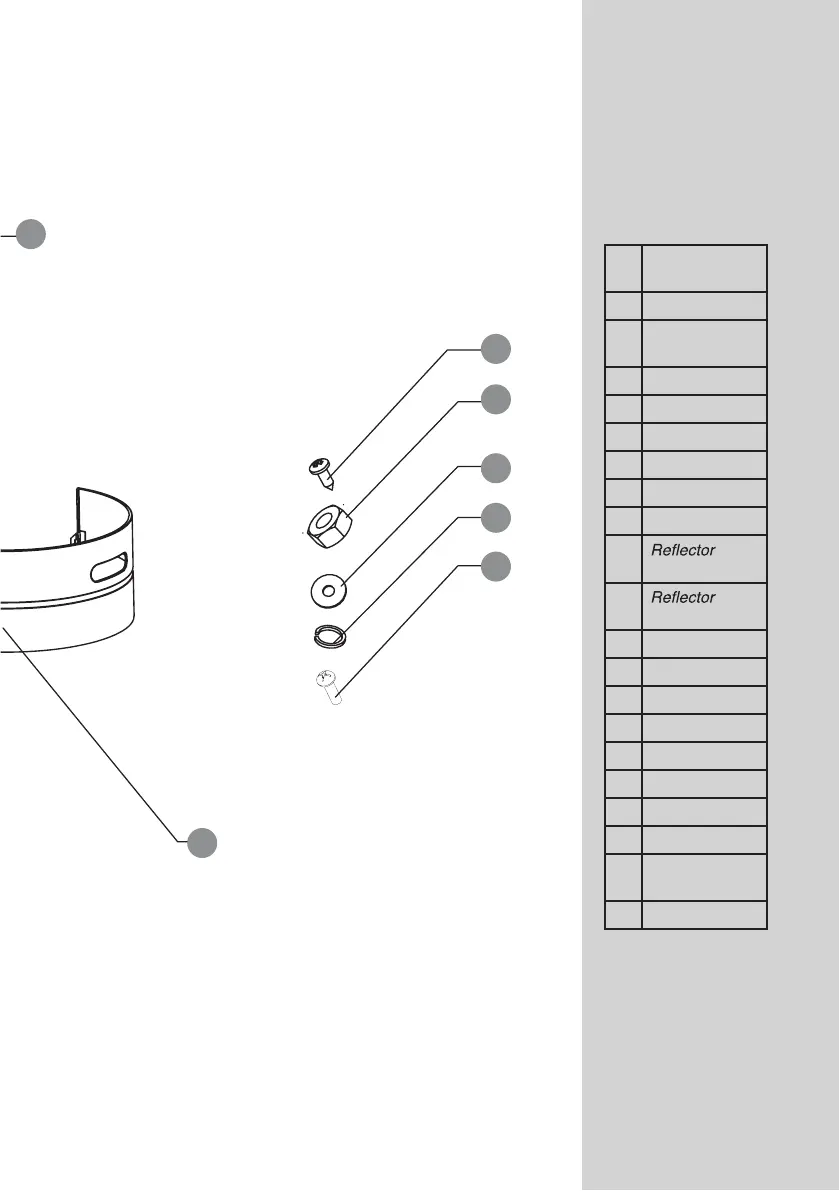

Alva GH312 - Page 9

7
1 Base panel
assembly
2 Castor Wheel
3 Back panel
assembly
4 Body assembly
5 Middle panel
6 Burner
7 Control knob
8 Valve
9 Face panel
10
pressing
11
guard
12 Tube 1
13 Tube 2
14 Tube 3
15 Injector
16 ODS
17 ST3.5 x 10
18 M4 Nut
19 Ø 4 Washer
20 Ø 4 Spring
washer
21 Bolt M4x10
4
3
17
18
19
20
21
