Specications
195
ML-5120A

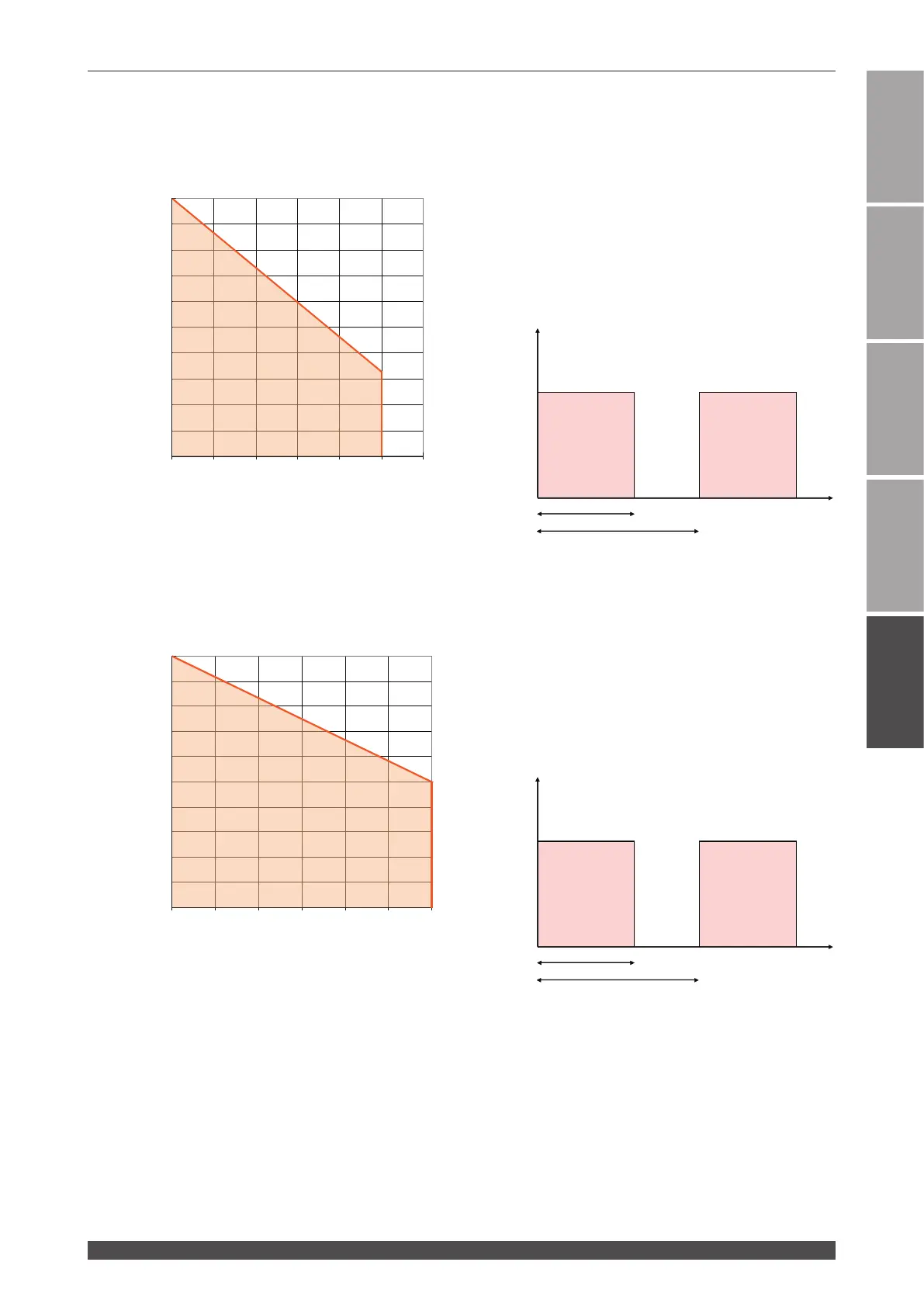

*1 There are following limitations by ambient temperature.
Without optional cooler
Duty cycle = peak power (100%@120 W) × t1/t2
Ex.) 25°C, duty cycle 60% or less
120 W setting: t1 = 1 s, t2 = 1.67 s
35°C, duty cycle 33% or less
120 W setting: t1 = 1 s, t2 = 3.03 s
60 W setting: t1 = 1 s, t2 = 1.6 s
Maximum emission time (indication) t1 = 5 min
With optional cooler
Duty cycle = peak power (100%@120 W) × t1/t2
Ex.) 25°C, duty cycle 75% or less
120 W setting: t1 = 1 s, t2 = 1.33 s
35°C, duty cycle 59% or less
120 W setting: t1 = 1 s, t2 = 1.7 s
70 W setting: t1 = 9999 s
Maximum emission time (indication) t1 = 5 min
Ambient temperature
Ambient temperature
Duty cycle
Duty cycle
120W
t1
t2
120W
t1
t2
0%
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
10℃ 15℃ 20℃ 25℃ 30℃ 35℃ 40℃
0%
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
10℃ 15℃ 20℃ 25℃ 30℃ 35℃ 40℃
Time
Output
Time
Output
