SERVICING
COOLING EMERGENCY MODE WIRING FOR TXV APPLI-
CABLE INDOOR UNIT
Cooling emergency mode is available when using a
TXV applicable indoor unit. To energize the blower
at the appropriate speed, standard Legacy wiring is

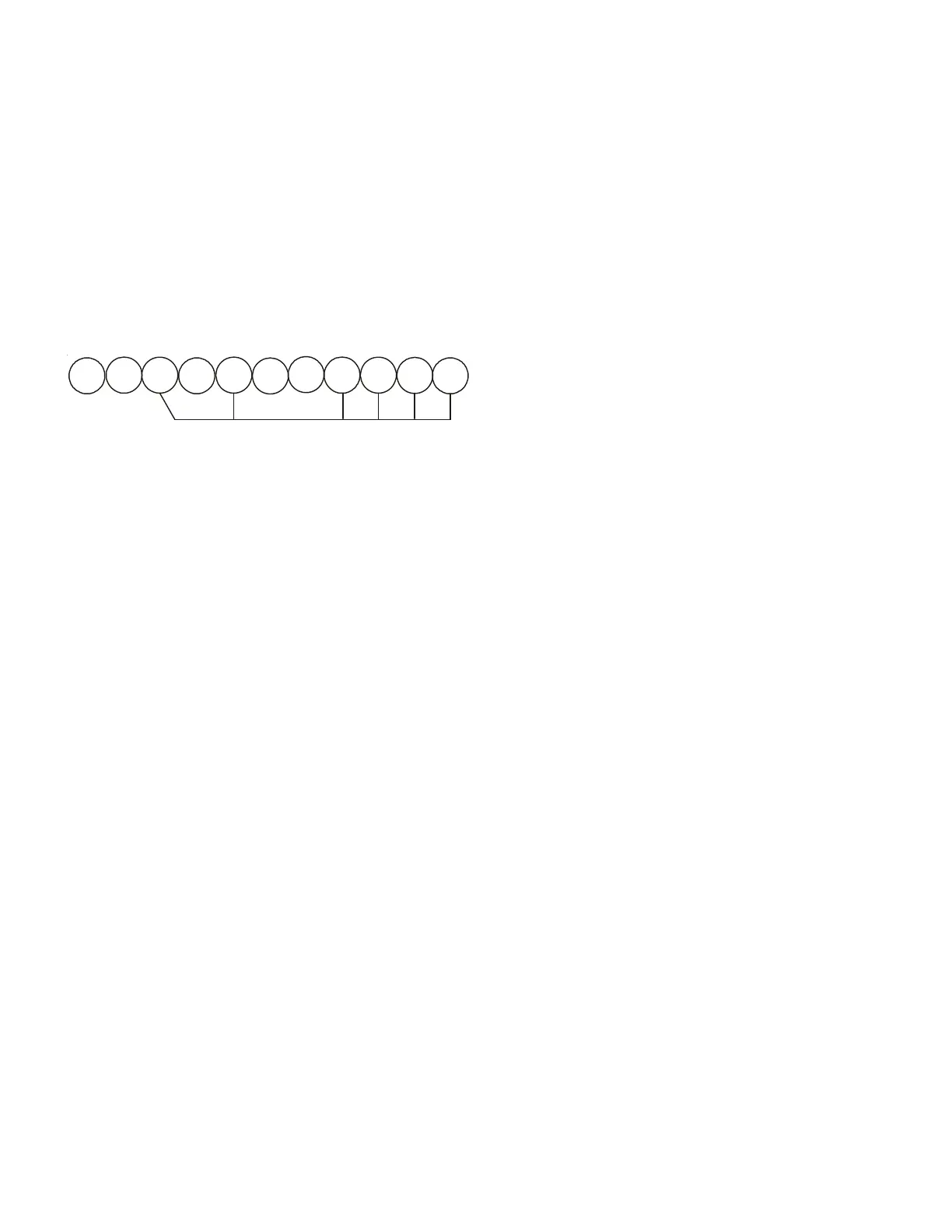

required. The image below shows how the thermo-
stat input terminals are to be wired when selecting
a cooling airflow. Note: the blower will run continu-
ously with this wiring which is required. The out-
door unit will cycle as described in the Cooling
Emergency Mode section when appropriate dip
switch modes are set.
1
2R
C
G
W1 W2
Y1 Y2
0
DEHUM
Indoor Unit Integrated Control Module
Note: Emergency heating mode is not available
with TXV applicable indoor units. If communica-
tions still exist between the indoor unit and thermo-
stat, the thermostat should be used to provide
heating calls.
