Disassembly
WARNING
!
To avoid the risk of electrical shock, personal injury, or
death, disconnect power to oven and discharge
capacitors before following any disassembly procedure.
Door Handle
1. Follow “Door Disassembly” procedure through step 6.
2. Remove screws securing latch assembly to outer
door.
3. Reassemble in reverse order.
Hinge
1. Follow Door Disassembly procedure through step 6.
2. Replace hinge on door ring weld.
3. Reassemble in reverse order.
Outer Case
1. See “Component Location” Figure 1, for location.
2. Remove screws securing outer case to chassis.
3. Slide outer case back and lift off.
4. Reassemble outer case in reverse order.
Outer case
Back
panel
Door Removal
1. Unplug power cord from power source.
2. Remove outer case cover.
3. Remove screws securing door hinges.
4. Remove door from unit, and lay door on padded
surface.

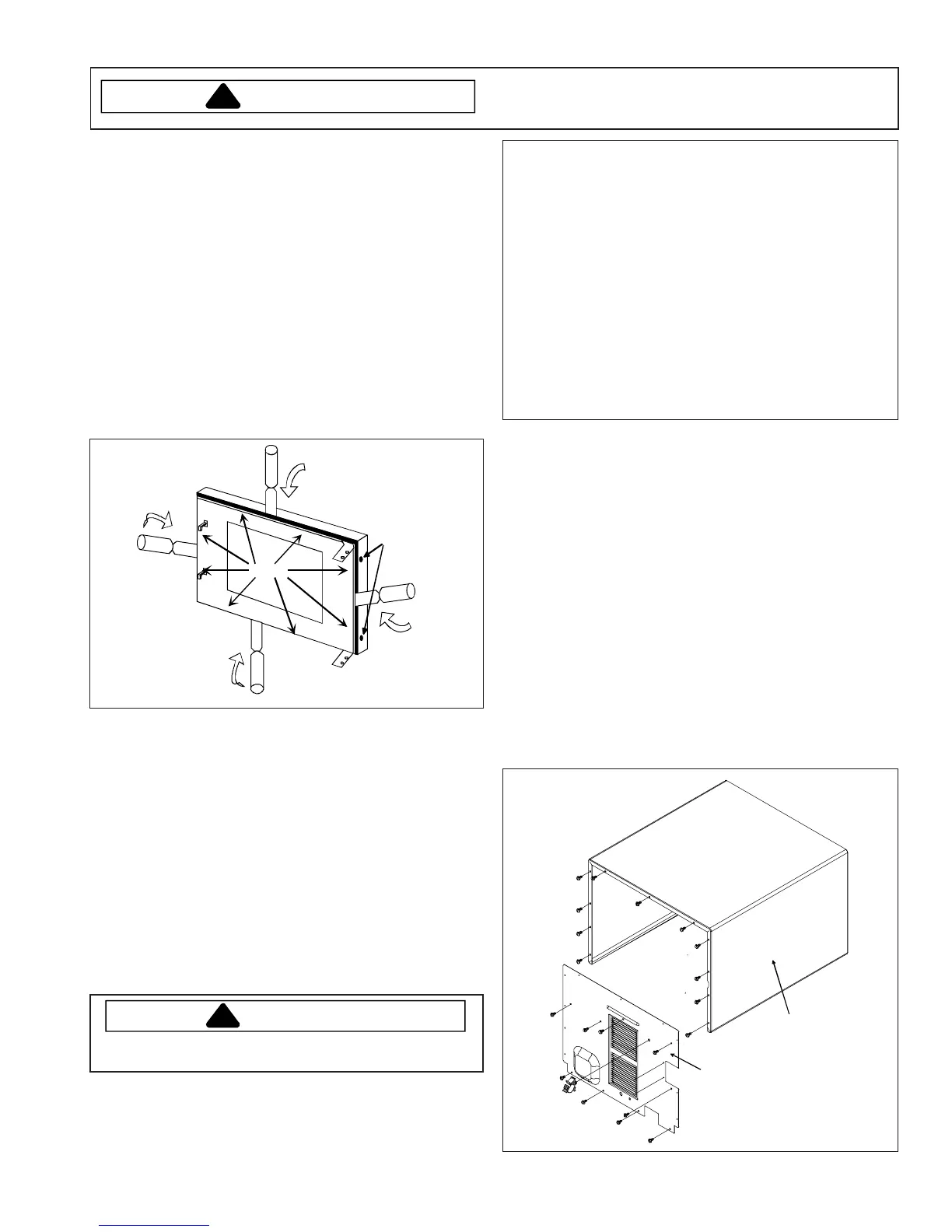

Inner Door Window Disassembly
1. Open oven door.
2. Loosen screws on hingeside, 3 - 4 turns. Do not
remove screws.
3. Beginning at the bottom, carefully insert 1” putty knife
between inner and outer door. Pry up on inner door to
release tabs, (2 clips per side). Work in a clockwise
direction to release all tabs, see illustration below.
1
2
3
4
Tabs
Loosen
screws
onl
y
Door Disassembly
1. Remove door from oven, see “Door Removal”
procedure.
2. Perform “Inner Door Window Disassembly”
procedures, step 1 through step 3 above.
3. Remove door latch linkage plate from latch assembly.
4. Remove screws securing door ring weld.
5. Maneuver door ring weld from door.
6. Remove lens retainer and outer window from door.
7. Remove screws securing handle/door latch bracket
to gain access to latch spring.
8. Reassemble in reverse order.
9. Proceed to “Door/Interlock Switch Adjustment”
procedure.
CAUTION
!
When glass retainer is removed, be careful glass does
not fall out of frame.
