Disassembly
To avoid the risk of electrical shock, personal injury or death; disconnect power to oven and discharge capacitors
before following any disassembly procedure.
RS2240003 Rev. 0
34
!
WARN
ING

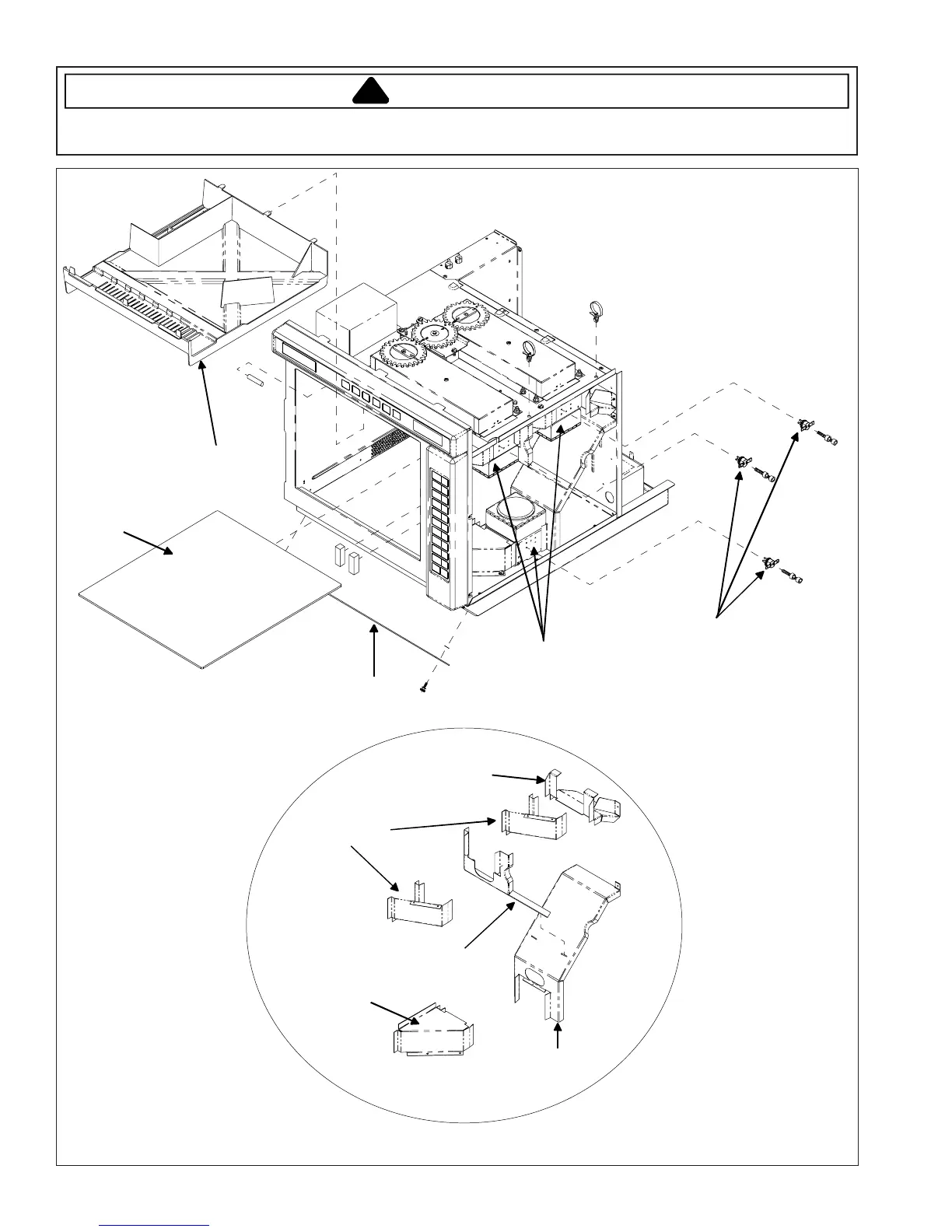

Figure 2
Fi
lt
er
Ma
gnet
r
o
n
s
Ma
gnet
r
o
n
TCO'
s
Splatter
Sh
ie
l
d
Oven
Tr
a
y
Bottom
Exha
ust
Duc
t
To
p
E
xha
us
t
D
uct
Bott
om
Flow
D
ivi
der
Top
Fl
ow
Di
vi
de
r
Rear
Fl
ow
Div
id
e
r
33
35
Table of Contents
Important Information
2
Table of Contents
3
Important Product Information
4
Important Safety Information
5
Product Information
7
Antenna
7
Blower/Fan Assembly
7
Splatter Shield
7
Door Interlock and Monitoring Switch
7
Transformer High Voltage
7
High Voltage Capacitor
7
High Voltage Diode (Rectifier)
7
Magnetron
7
Thermal Protectors
7
Specifications
8
Installation
10
Grounding Instructions
10
Installation Grounding Instructions
10
Unpacking Oven
10
Radio Interference
10
Oven Placement
10
Care and Cleaning
11
Recommended Maintenance Schedule
11
Recommended Cleaning Schedule
11
Cleaning Oven Exterior
11
Cleaning Oven Cavity
11
Oven Racks and Rack Guides
11
Air Filter
11
Discharge Air Vents
11
Component Testing Procedures
12
Power Testing Procedure
19
Power Test (Traditional Test Method)
19
Traditional Power Test Temperature Chart
19
Display Diagnostics
20
Error Codes
20
Service Test
21
Rs2240003 Rev
22
Microwave Leakage Test
23
Equipment
23
Procedure for Measuring Radiation Leakage
23
Measurement with the Outer Case Removed
23
Measurement with a Fully Assembled Oven
23
Record Keeping and Notification after Measurement
23
Troubleshooting
24
Power up
24
Troubleshooting Power up
24
Standby Condition
25
Cook Condition
26
Disassembly
27
Door Handle
27
Outer Door
27
Inner Door Assembly
27
Hinge
27
Outer Case
28
Back Panel
28
Splatter Shield
28
Top Touch Panel Assembly
28
Side Touch Panel Assembly
28
High Voltage Circuit Board
28
Interlock Switch Module
29
Adjustment
29
Display Module
29
Magnetron
29
Magnetron, Control, and Fan Thermal Cutout (TCO)
29
Triacs
30
Microwave Blower Wheel and Motor
30
Fan Blade
30
Transformer
30
Auto Transformer
30
Capacitor
30
Replacing Oven Light Bulb
31
Fuse
32
Power Cord
32
Light Socket
32
Component Location
33
Appendix A
38
Display and Features
38
Operating Instructions for ASE7000, ASE9000, RC17S, RC17SD2, RC22S, RC22S3, RC25S, RC27S, RC30S
38
Manual Time Entry
39
Stage Cooking
39
Microwave Cooking
40
Preprogrammed Pads
40
Programming Pads
41
Programming Multiple Stages
41
User Options
42
Changing User Options
42
RS2240003 Rev
43
Operating Instructions for DQ22HSI
43
Programming Pads
46
Operating Instructions for MC23MP, MC23MPT, MC23MPT2
48
The Control Panel
49
Time Entry
49
Power Level
49
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Amana MC23MP and is the answer not in the manual?
Ask a question
Amana MC23MP Specifications
General
Brand
Amana
Model
