Bismarck
82

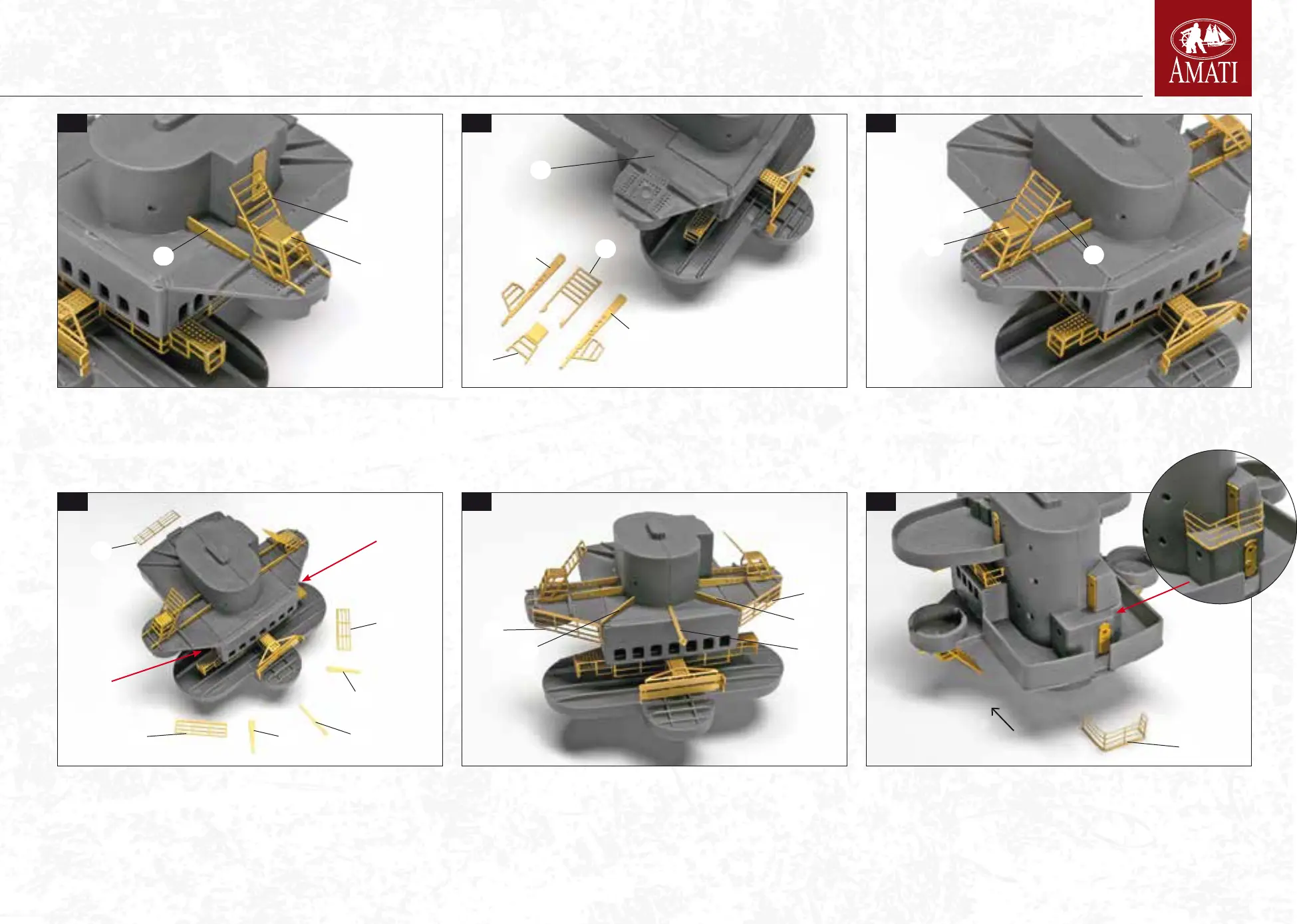

408 Complete with ladder 815, which must be glued inclined towards the inside of
the structure. The starboard side ladder is complete.
413 Turn the turret over to its correct position and bend railing 822 on three sides
in order to adapt it to the edge indicated by the red arrow on the back of the turret.
Observe the picture in detail and glue railing 822 in place.
410 Replicate the assembly on the port side of the admiral’s bridge symmetrically.
412 Glue the two brackets 819 inclined outwards on the protrusions under the bridge
(see red arrows, previous step) and rod 820 in the centre with the eyelet placed
outwards. Take the two 821 railings and glue them along the inclined edges of the
admiral’s bridge oriented as shown in the picture. Place the thicker edge of the railing
against the bent edge of the plank.
409 Move under the other circular platform of the admiral’s bridge and prepare the
pieces from 816 to 818 (sheet 1557) for the assembly of the ladder on the port side.
411 With the turret upside down, move under the front of the admiral’s bridge and
prepare brackets 819 (x2), cable tension rod 820 and three railings 821 (x2) and 822
(sheet 1557).
