Bismarck
4
001
004
002
005
003
006

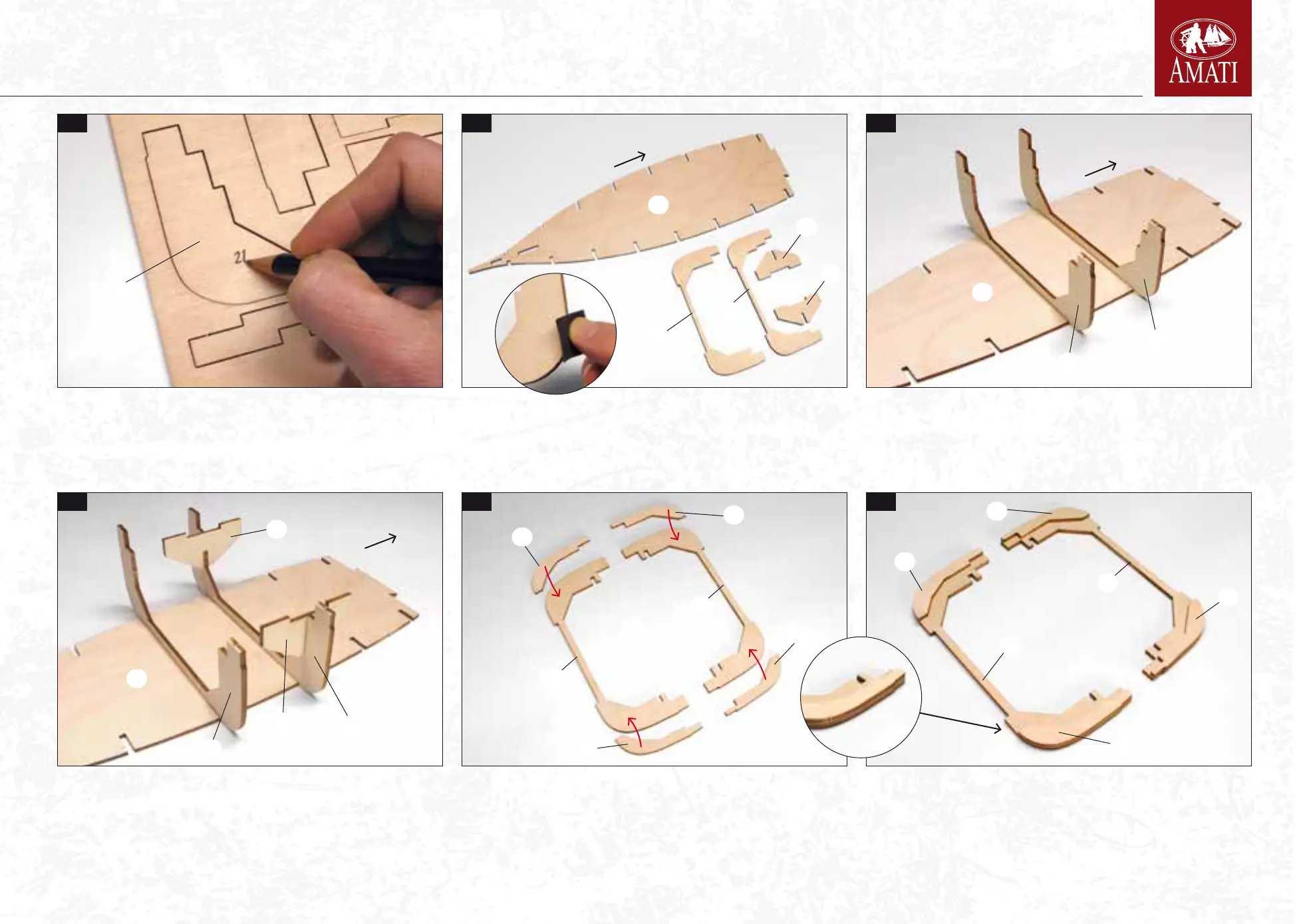

006 Perform tests without glue; then, glue the supports to the bulkheads.005 Remove from sheets 3551 and 3550 the two bulkheads 19 and 23 with the re-
spective supports, 19a (x2) and 23a (x2), smooth any imperfection on the pieces with
sandpaper and lay them on your worktop. The four supports 19a and 23a must be
glued aligned to the external prole of bulkheads 19 and 23 (red arrows).
004 Take the two supports 21a. Distribute a layer of wood glue in the joint and x
them inside bulkhead 21, as shown in the picture above.
001 Take laser sheet 3550 and write in pencil the number of the individual parts of the
frame shown on technical table 01.
003 Take the two bulkheads 21 and 22 and try to position them (without gluing them)
in the joints of keel 1, oriented as shown in the picture above. Warning: the two bulk-
heads must be perpendicular to the keel. Apply a layer of wood glue inside the lower
joint of the bulkheads, then insert them and glue them in their seats.
002 Using a knife or sandpaper, remove any attachment material from where the piec-
es were connected to the parts sheet. Remove keel 1, bulkheads 21, 22 and supports
21a (x2); with ne-grit sandpaper, smooth any imperfection and notches and lay them
on your worktop.
21
1
1
22
22
21
23
23
19
19
23a
23a
23a
23a
19a
19a
19a
19a
21
21a
21a
1
21a
21
22
21a
BOW
BOW
BOW
