Bismarck
111
2422

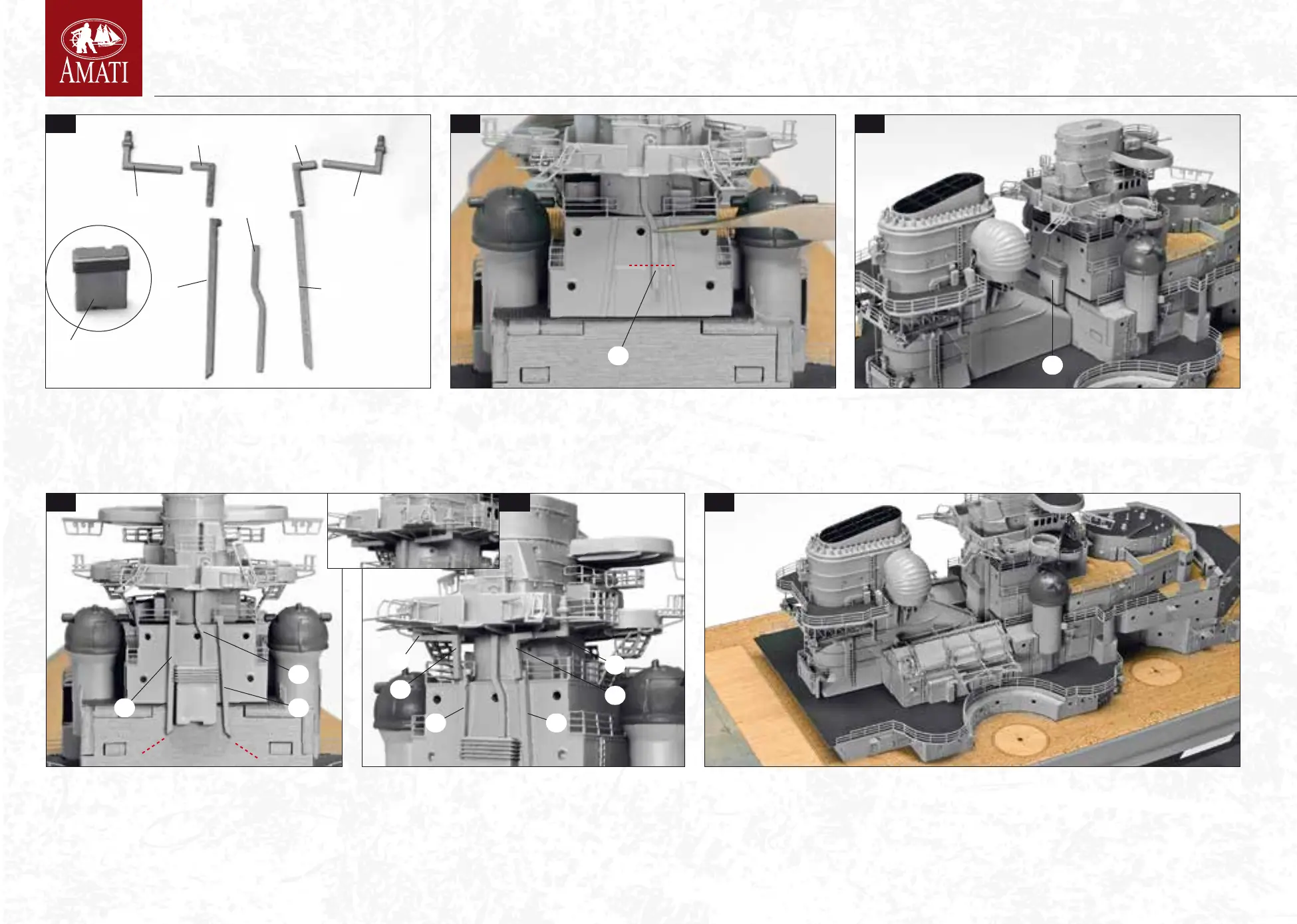

590 Try central tube 2423 on the wall without glue. Mark the excess that protrudes
beyond the aerator panel drawn in relief on the wall (red lines). Remove the lower
excess of the tube with a cutter.
594 Now that the rear wall of the superstructure has been set up, you can denitively glue the funnel on the centre of
the lower deck and the two hangars on the sides of the funnel.
591 Without gluing, try to place the funnel on the lower deck in the centre of the
superstructure. Check the position of aerator 2422 on the wall; then glue it.
593 Glue the two tubes 2424, 2425 in place and the two upper tubes
2428 and 2429 on the sides of the admiral’s bridge as shown in the
detail above. Place the two elbow pipes 2426 and 2427 on the newly
glued pipes and on lower pipes 2424, 2425; then glue them.
592 Remove the funnel from the deck and glue central tube
2423. Try aligning side tubes 2424, 2425 with the relief patterns
on the wall. Pay attention to the inclination at the lower end of
the two side pipes which must rest on the funnel. The upper end
instead must be at the height of the second rail of the railing, as
shown in the picture.
589 Prepare the pipes and aerator shown in the picture to prepare the rear wall of the
bow superstructure (frame P24 and P44). Paint them in Ral 7001 grey.
590589
592 593
591
594
2423
2423
2423
2424
24242425
2428
2429
2427
2426
2425
2425
2427 2426
24282429
2424
2422
