Bismarck
139

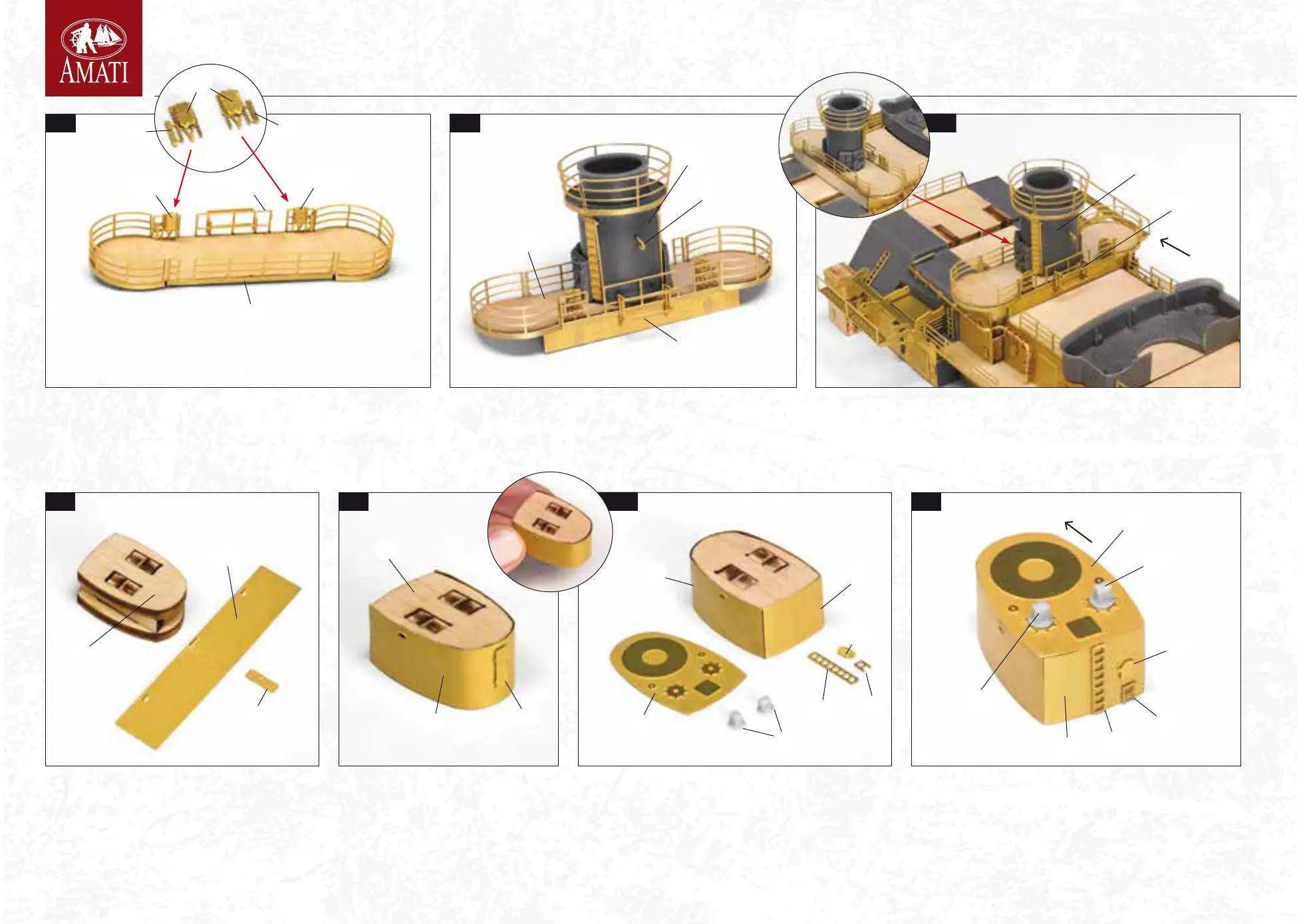

723 Couple the two plates 1214 on each piece 1212 and 1213 and glue. Rotate the
structure and glue the two junction boxes 1213-1214, 1212-1213 on the inside of
railing 1210, oriented as shown in the picture.
728 Rotate the structure and prepare the other accessories depicted
in the picture and which you can nd on sheet 1559. Separate the
two searchlights 2333 from sprue P36 with a cutter.
729 Close the structure with claddings 1218 and 1222. Fix the accesso
-
ries to wall 1218: ladder 1219 in the centre vertically, hatch 1220 aligned
with the relief engraved on the wall and under ladder 1221. Move to the
roof and x the two searchlights 2333 aligned with the circular drawings
engraved on cladding 1222.
725 Position the newly assembled structure on the stern superstructure, check the alignments
and glue arranging frame 1211 of the rack towards the stern.
727 Round the wall in the central part until it
adapts to the front curve of structure 207. Try it
without glue, then glue. Fix door 1217 aligned
with the hinges engraved on the wall.
724 Take the turret of shooting direction station 2451 and x it to the centre
of platform 197. Align padeye 1199 on the turret above the platform frame.
726 Retrieve structure 207 of the rear control station assem
-
bled in step 654 and remove covering wall 1216 and door
1217 from sheet 1559.
723
726
724
727
725
728 729
1211
1209
1222
2333
2333
2333
1218
1222
1219
1219
1220
1220
1221
1221
1218
1216
1216
207
1217
1217
1216
1212-1214
1213-1214 1210
1214
1213
1212
BOW
207
BOW
1199
197
2451
2451
1211
