6.2 Data block
T3
machine
6.2.1 Menu ‚Impulses / 100 m‘ – Cali-
brating the distance sensor

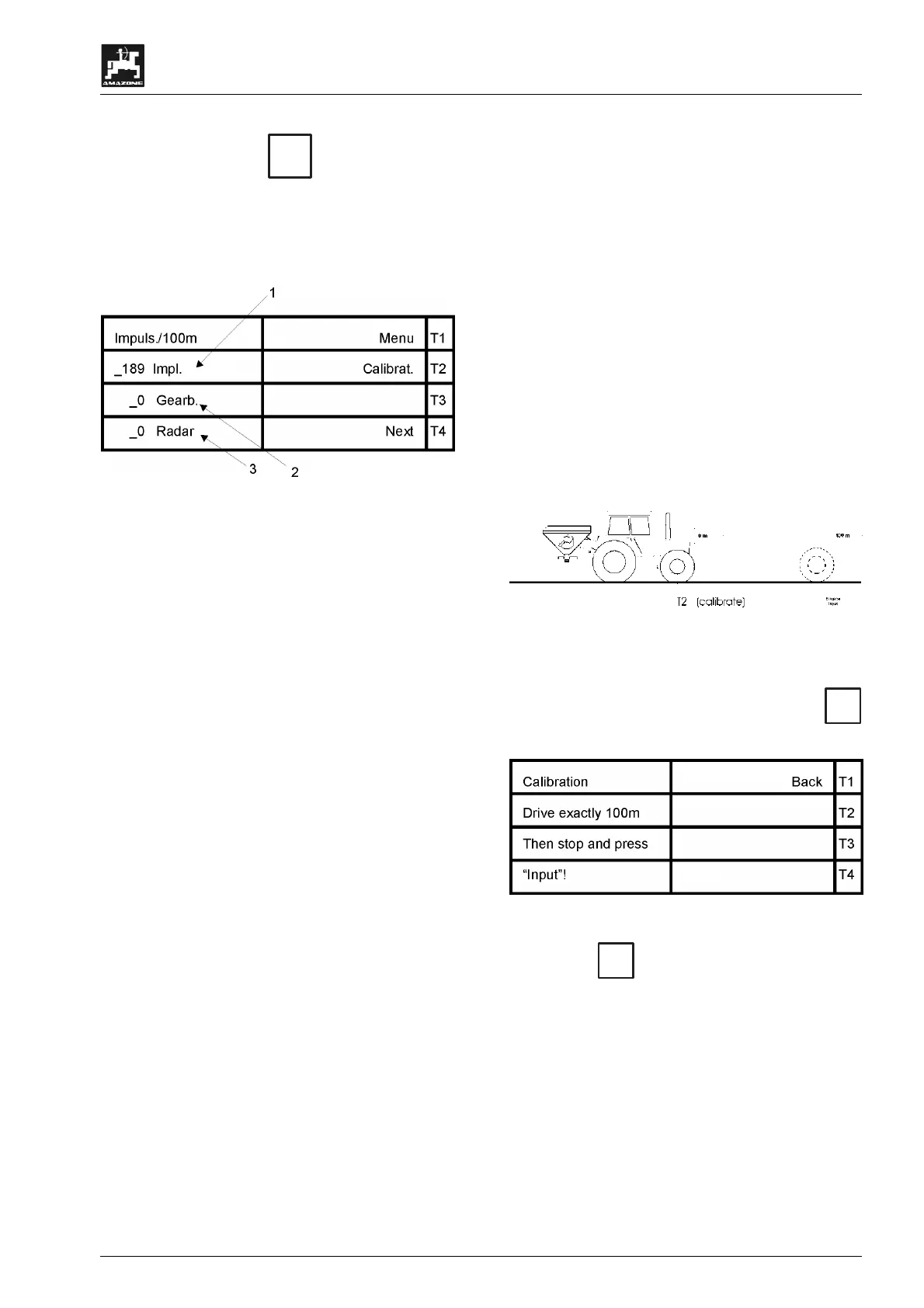

Fig. 14
Display of impulses/100 m which are determined
by a trailed implement (Fig. 14/1) (the sensor of
which has the first priority when being recognised),
by the gearbox (Fig. 14/2) (drive shaft/wheel) or by
the radar sensor (Fig. 14/3) (if existent).
F
If one of the sensors is not available
ensure that its value has been re-
turned to zero.
To determine the actual travelling speed AMA-
TRON II-A requires the calibrating figure "Im-
pulses/100 m", which the sensor "X" sends to the
computer when travelling along the calibration dis-
tance of accurately 100 m.
I
The figure "Impulses/100 m" must not
be smaller than 170. Otherwise AMA-
TRON II A would not operate properly.
For entering the calibration figure "Imp./100m"
two possibilities are provided:
• The calibration figure "Imp./100m" is unknown
and will be determined by travelling along a
calibration distance.
• The calibration figure ‚Imp./100m‘ is known and
is entered via the ten digit key board.
I
As the calibration figure "Im-
pulses/100m" is ground related, we
recommend in case of heavily
changing soils, that you re-determine
this calibration figure by travelling
along the calibration distance.
Determination of the calibration figure if it is
unknown.
If the calibration figure is unknown it should be
determined by travelling along a calibration dis-
tance.
- Accurately measure out in the field a travelling
distance of 100 m and mark the starting and
ending point of the calibration distance.
Fig. 15
- Bring vehicle in start position.
- In the display (Fig. 14) select with key
T2
(Calibrat.).
Fig. 16
• With key
T1
(Back) the calibration procedure
can be stopped.
- Accurately travel along the calibration distance
from the starting to the ending point. With the
first impulse after having started the vehicle the
counter returns to "0". The determined impulses
(Fig. 17/1) are shown on the display.
