Maintenance, repair and care work
Cirrus 3/4/6000 DB2034 08.04
151
10.5 Track marker setting screw
When folding in the track marker arm, the roller (Fig.
243/1) runs over the running surface (Fig. 243/2) into
the retainer.
Otherwise adjust the screw (Fig. 243/3) as necessary.
Retighten firmly the earlier slackened counter nut.

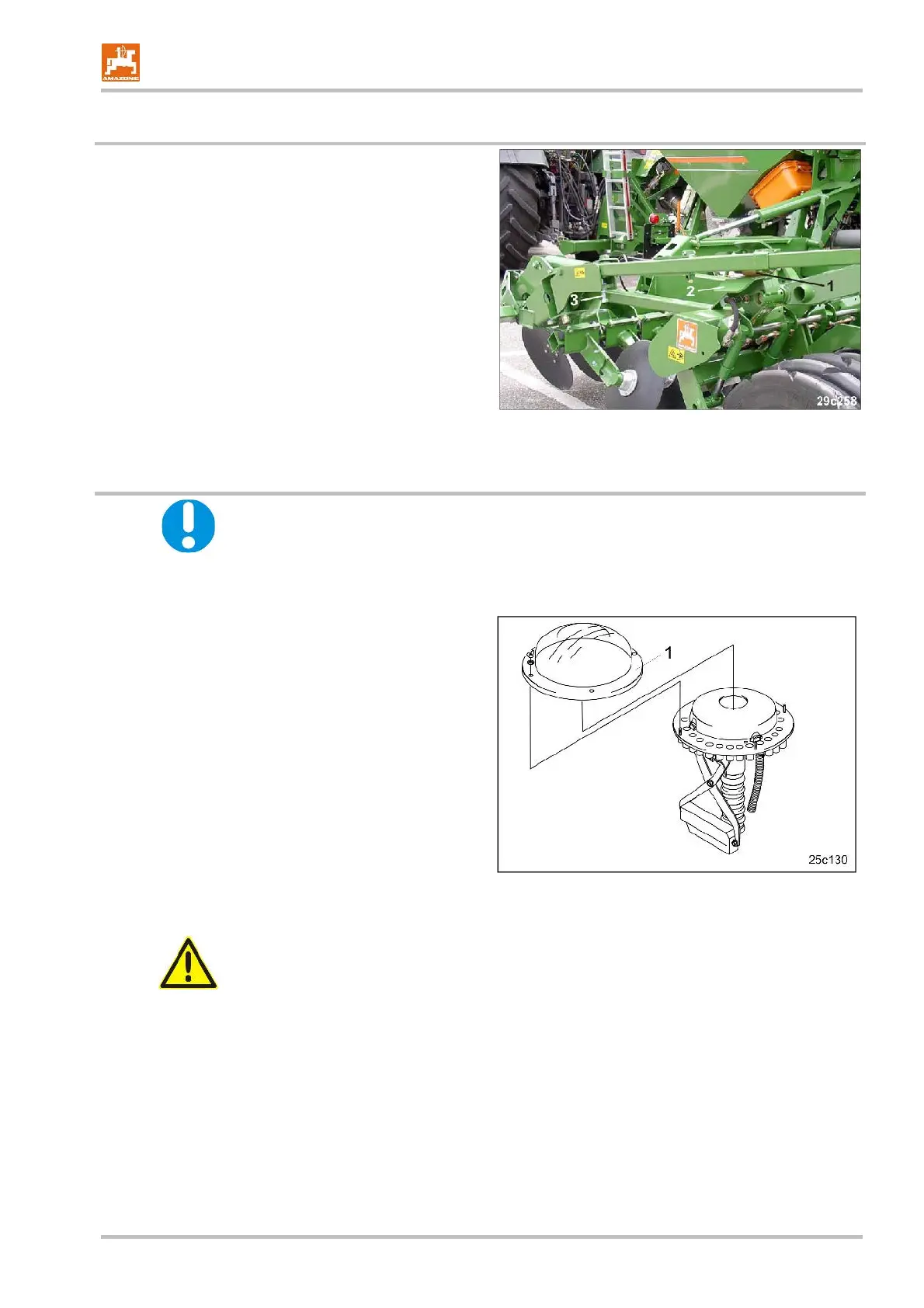

Fig. 243
10.6 Cleaning the distributor heads (workshop job)
Important
Dirt and seed residue will block the distributor heads and should be removed
immediately (workshop job).
For cleaning the distributor head proceed as follows:
- Stop the combination.
- Stop tractor engine, apply parking brake and
remove ignition key.
- Slacken the counter nuts and pull the transparent
plastic hood (Fig. 244/1) off the distributor head.
- Remove dirt using a broom, clean out the
distributor head and the plastic hood by using a dry
cloth.
- Reinstall the plastic hood (Fig. 244/1).
Fig. 244
Warning
For cleaning the distributor heads
• stop tractor engine, apply parking brake and remove ignition key.
• the distributor heads are located in the centre of the machine. Take
appropriate safety relevant measures to reach the distributor heads.
