Cirrus 3/4/6000 DB2034 08.04
- Put the calibration crank (Fig. 94/1) on the star
wheel (Fig. 94/2).
- Turn the star wheel with the aid of the calibration
crank (Fig. 94/1) in counter clockwise direction until
all compartments of the metering wheels are filled
with seed and the seed evenly flows into the seed
collecting trays.
- Close the injector sluice flap (Fig. 92/1) with special
care (danger of squeezing, see danger advice [Fig.
92]).
- Empty the seed collecting trays and replace them
underneath the metering units.
- Open the injector sluice (Fig. 92/1).
- Carry out the calibration test as described in the
operator's manual for the (see
chapter "Machines with Vario gearbox with seed
rate remote control").

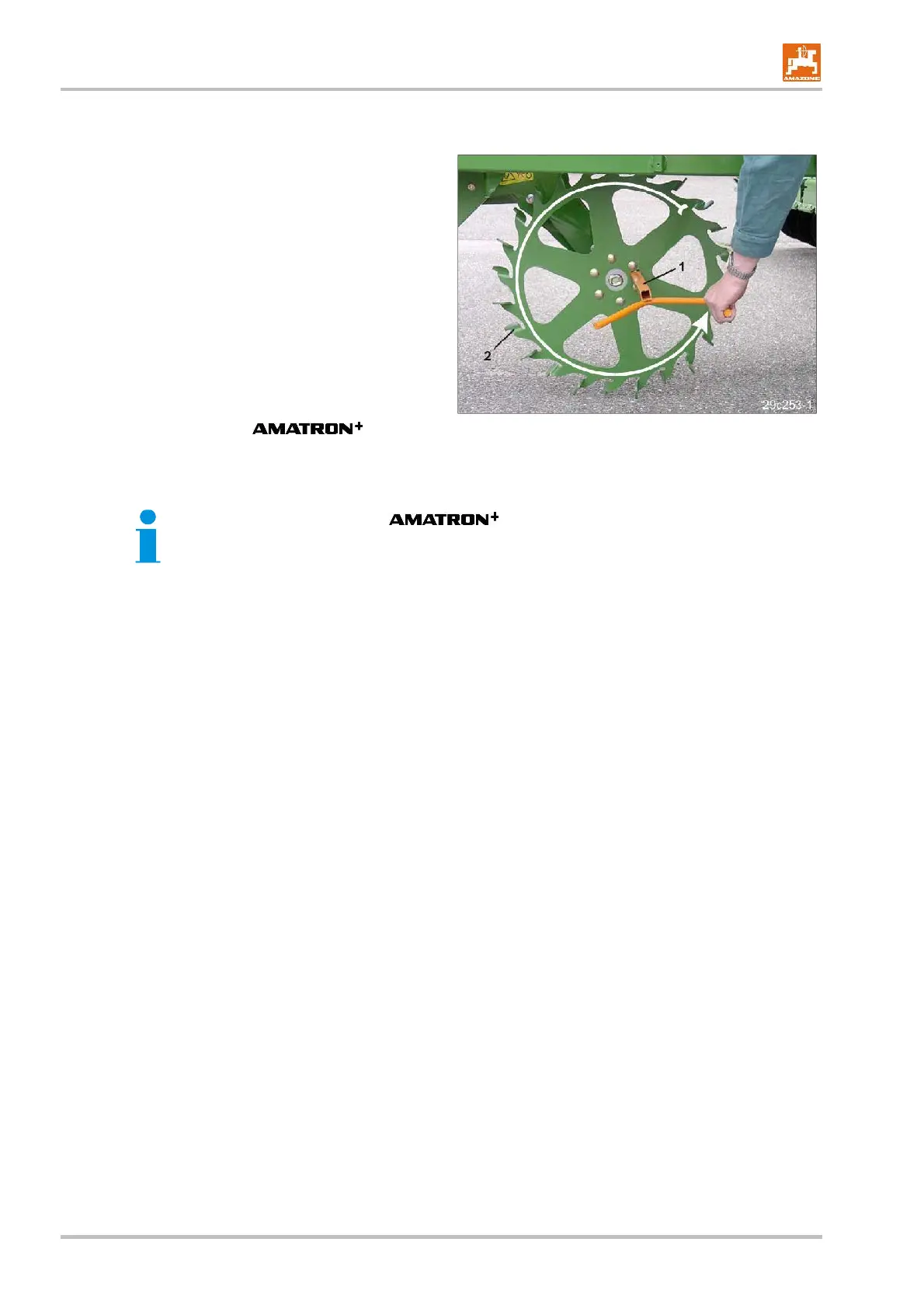

Fig. 94
Hint
At the calibration test requires to turn the calibration crank in counter
clockwise direction until a signal sounds.
The number of crank turns for the calibration test until the signal sounds depends on
the seed rate and area size:
• Crank turns for 1/10 ha from 0 to 15 kg
• Crank turns for 1/20 ha from 15,1 to 30 kg
• Crank turns for 1/40 ha from 30,1 kg.
After the calibration test
- Replace the calibration crank (Fig. 93) into its transport retainer.
- Close the injector sluice flap with special care (see danger advice Fig. 92).
- Affix the seed collecting trays (Fig. 90) in their transport retainer and secure by
using a lynch pin.
