Amazone Cirrus 3000 User Manual

Settings
70
Cirrus 3/4/6000 DB2034 08.04

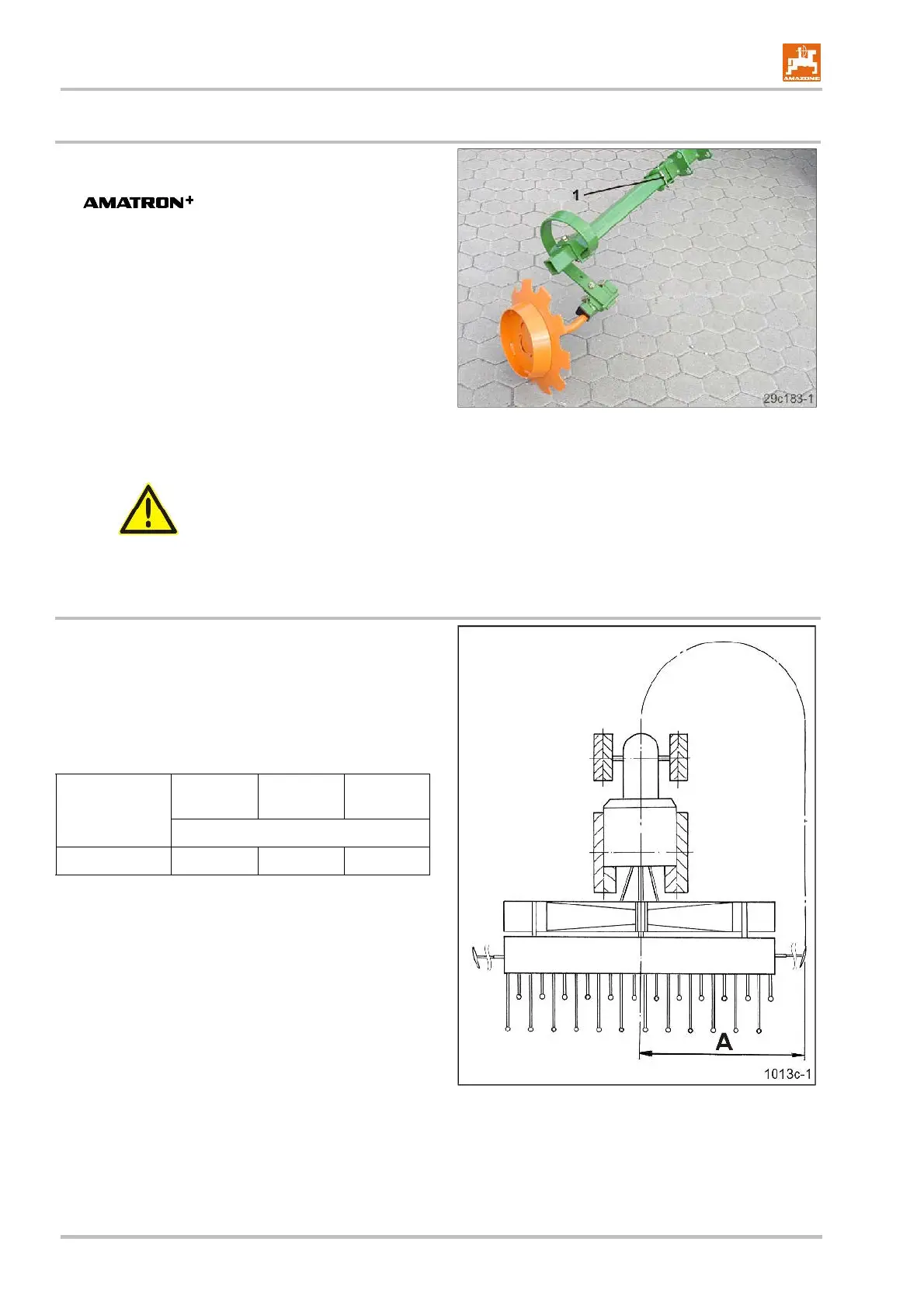

5.7 Setting the length of the track markers
Setting the length of the track markers:
- Simultaneously unfold both track marker arms (see
operator's manual), if sufficient
space is available.
- Stop tractor engine, apply the parking brake and
remove the ignition key.
- Slacken tapered screw (Fig. 109/1).
- Set the track marker length to distance "A" (see
chapter 5.7.1).
- Retighten the tapered screw (Fig. 109/1) firmly.
- Repeat this procedure on the other track marker.
Fig. 109
Danger
Standing within the operational range of the track marker arm is prohibited.
Carry out settings only with the tractor engine stopped, the parking brake
applied and the ignition key removed.
5.7.1 Track marker length dimensions
The track markers mark a trace in the tractor's centre.
Measured is distance "A" (Fig. 110)
• from the machine's centre
• to the contact point of the track marker disc.
Set both track markers to the same length.
Cirrus
3000
Cirrus
4000
Cirrus
6000
Row spacing
Distance “A” (Fig. 110)
12,5 cm 3,0 m 4,0 m 6,0 m
Fig. 110
