Putting to operation
Cirrus 3/4/6000 DB2034 08.04
99

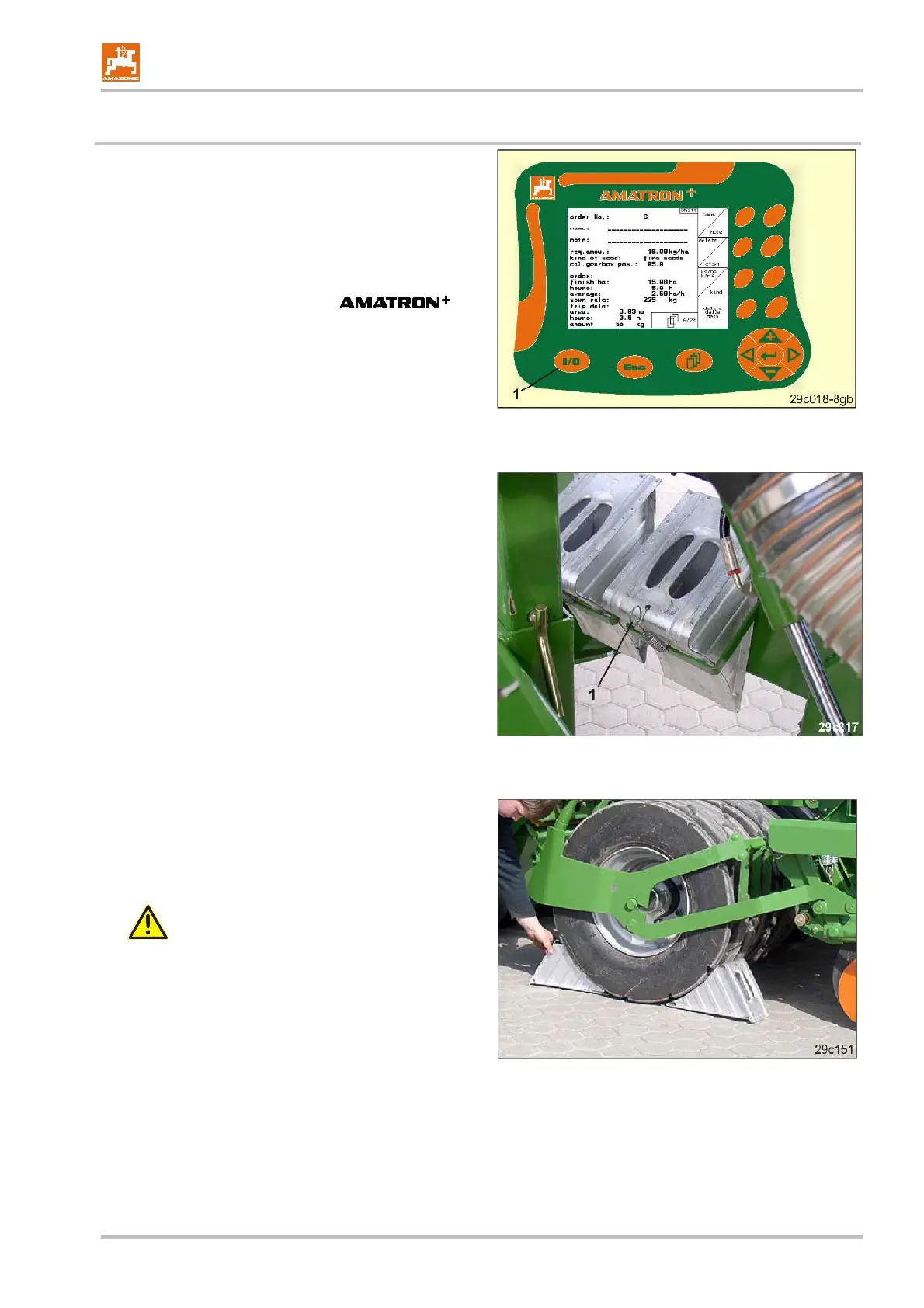

7.2 Uncoupling the machine
Uncoupling the machine:
1. Align tractor and implement on level ground and
stop.
2. Lock the star wheel (see chapter 7.7)
3. Retract the integrated running gear. Now Cirrus
rests on all tyres of the integrated wedge ring roller.
4. Press key (Fig. 149/1) (switch off ).
5. Stop tractor engine, apply the parking brake and
remove the ignition key.
Fig. 149
6. Slacken spring pins (Fig. 150/1) and take the 4
chocks out of their retainers at the front of the
machine.
Fig. 150
7. Secure the Cirrus an both sides of the machine by
applying each 2 chocks (Fig. 151) underneath the
outer tyre of the wedge ring roller.
Danger!
Always secure the machine with 4
chocks before you uncouple the
machine from the tractor. The
chocks replace the parking brake of
the machine.
Fig. 151
