Never interchange the opening for the
sealing shim with that of the exhaust valve.

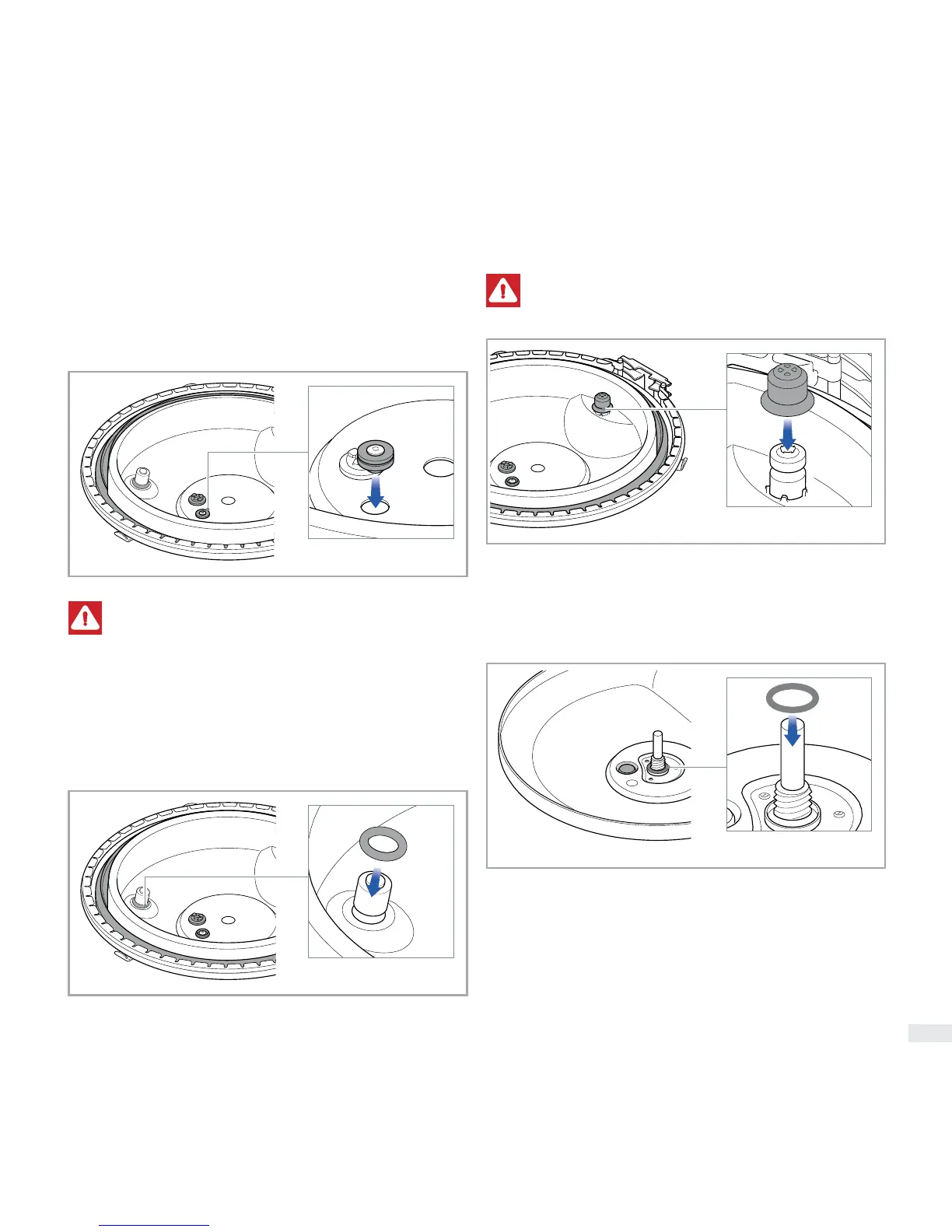

Exhaust valve
Place seal in the opening
The at side of the rubber seal must be on the lower
side of the bottom lid.
The groove of the rubber part must sit correctly in the
bore of the metal plate.
ORing for the safety valve 2
Slide O-Ring until it lies in the groove (right at the bottom)
Thereby do not pull the valve insert out of the bottom
lid.
Do not pull the O-Ring of the safety valve
2 over the safety valve 3.
ORing under Visiotherm S
Slide O-Ring carefully over the thread
The O-Ring must lie completely at the bottom in the
groove.
Seal cap for the safety valve 3
Slide seal cap completely
