Recommended separation distances between
portable and mobile RF communications equipment and the Picasso® Plus or Picasso Lite® Plus
The Picasso® Plus and Picasso Lite® Plus are intended for use in an electromagnetic environment in which radiated RF
disturbances are controlled. The customer or the user of the Picasso Plus or Picasso Lite Plus laser can help prevent
electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications
equipment (transmitters) and the Picasso Plus or Picasso Lite Plus laser as recommended below, according to the maximum
output power of the communications equipment.
Rated maximum output
power of transmitter
W
Separation distance according to frequency of transmitter
m
150 kHz to 80 MHz
d = [3.5/V1] √ P
80 MHz to 800 MHz
d = [3.5/E1] √ P
800 MHz to 2.5 GHz
d = [7/E1] √ P
0.01 0.12 0.12 0.23
0.1 0.37 0.37 0.74
1 1.17 1.17 2.33
10 3.69 3.69 7.39
100 11.67 11.67 23.33
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m)
can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power
rating of the transmitter in watts (W) according to the transmitter manufacturer.
NOTE 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and
reflection from structures, objects, and people.

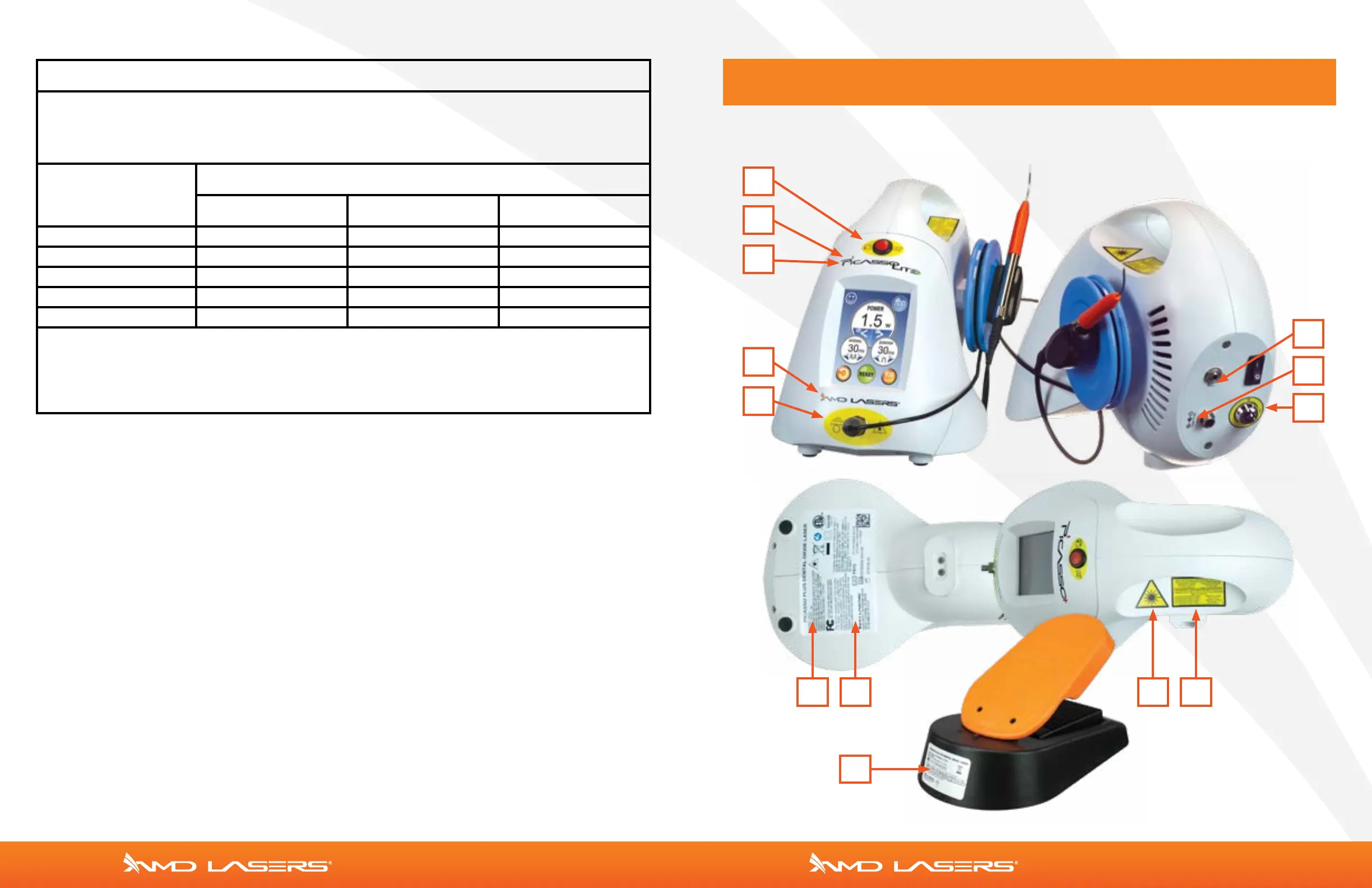

ANNEX A: LABELS
FIGURE 18
1
2
3
4
5
6
8
7
10
13
9 1211
