American Dynamics HDVR - System Diagram

American Dynamics 86
Ethernet TCP/IP
USB Devices
(CD-W or
Thumbdrive)
USB Joysticks
Printer
Audio
In/Out
I/O Alarm
Devices
Cell Phones
and PDAs
Digital Video Storage Devices
Analog Fixed Cameras,
SpeedDomes, or
Mini-Domes
IP Fixed Cameras,
SpeedDomes, or
Mini-Domes
API
HDVR
Remote Client
and Web Client
Cash Register

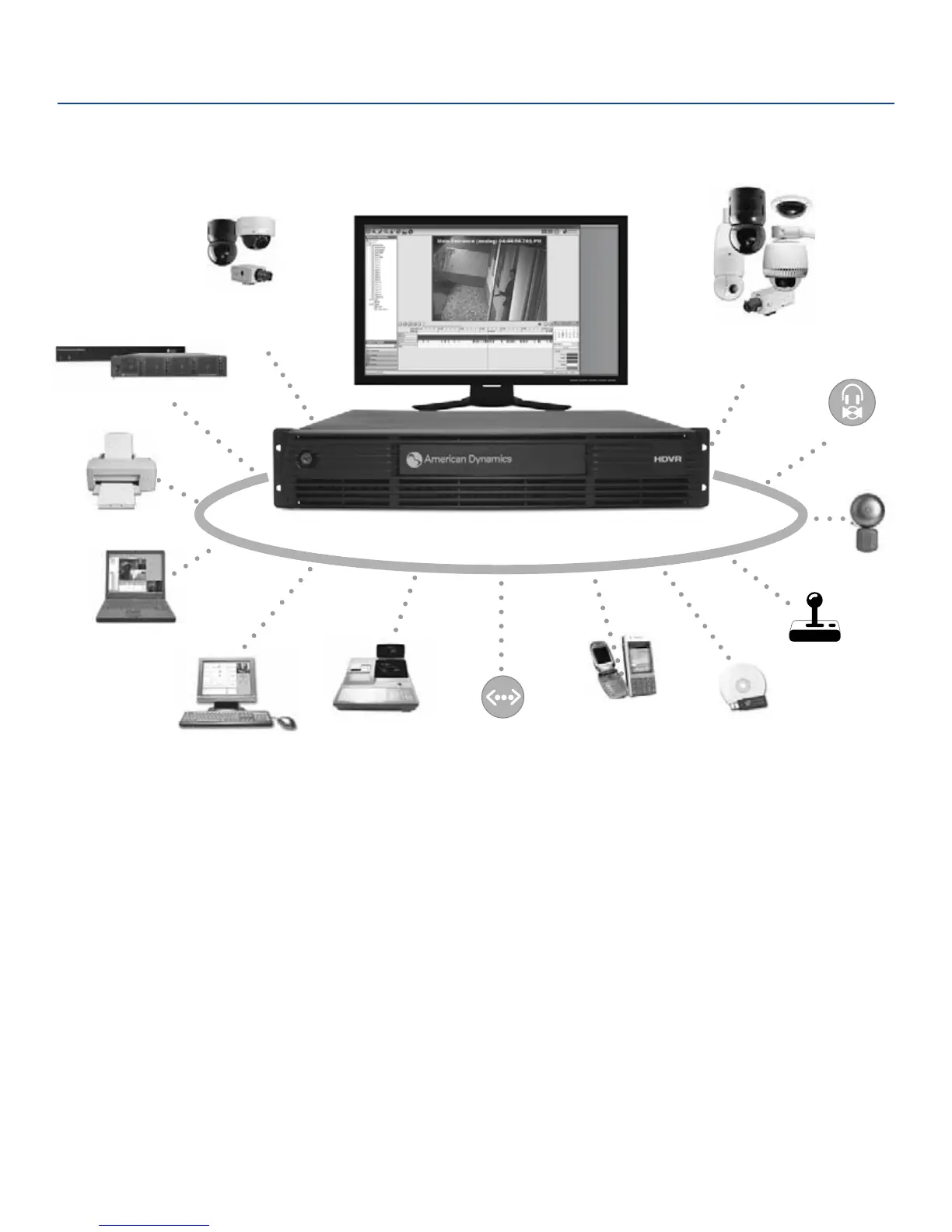

SYSTEM DIAGRAM
Whether you use IP cameras, analog cameras, or a mixture of both, HDVR brings it all together in one seamless interface. Each HDVR supports
up to 32 analog inputs and 8 IP inputs, which can be easily expanded to up to 64 IP cameras per server.
Hybrid Video Recording Solutions
