Unit Assembly (Cont’d)

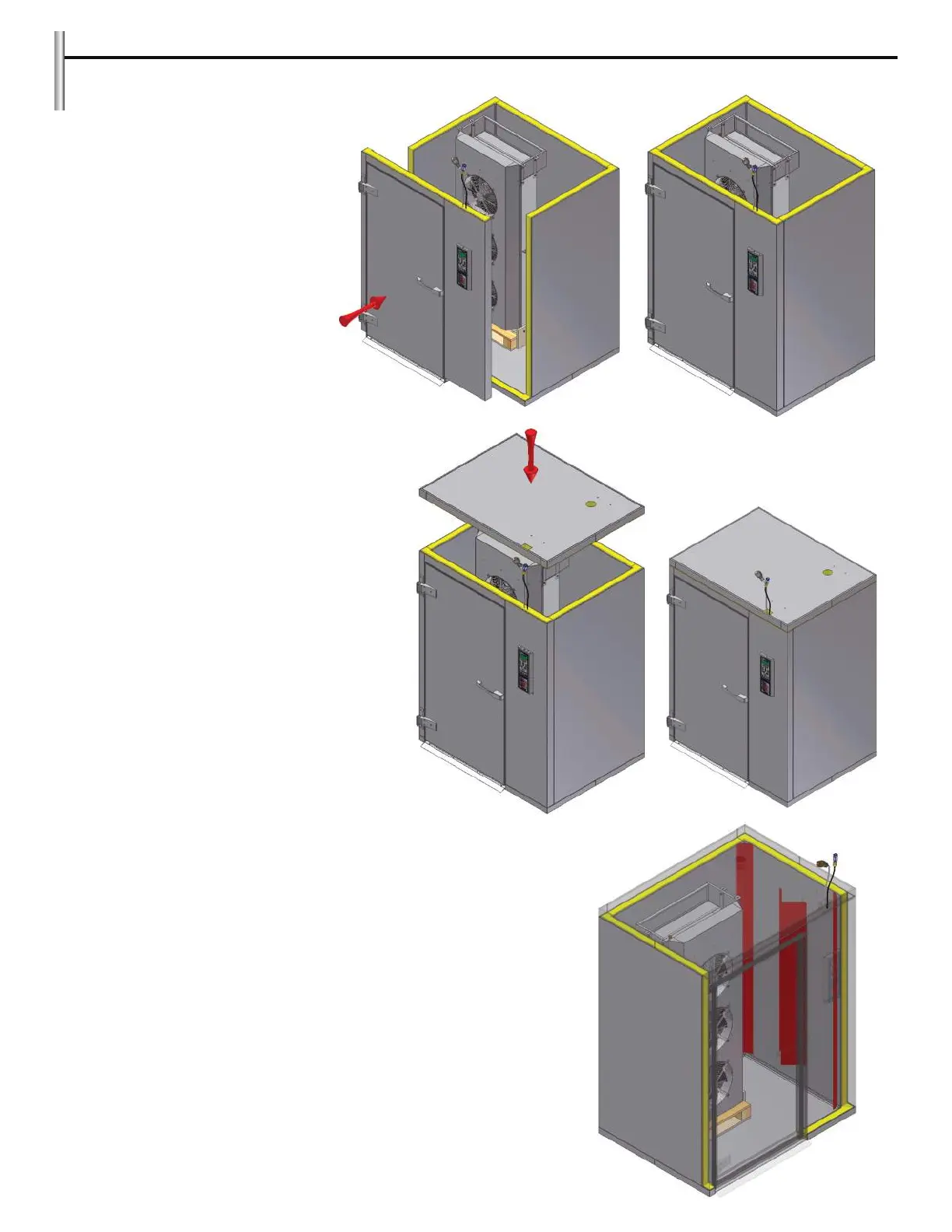

4. Install and fasten the door assembly to the
walls and oor.
5. Place and fasten roof panel. Route control
cables through roof panel cutout.
6. Install the air deectors (per the instructions below) on the
wall where the evaporator assembly will be installed.
7
• Align the top of the corner air deectors to the ceiling panel.
• Align the center air deector at 9” below the ceiling panel.
• Be sure the center deector is centered on the side wall
