Please Read Prior to Installation:
1. Before installing any Ames backflow assembly, flush the line
thoroughly to remove all debris, chips and other foreign
objects. Failure to do so may make the assembly inoperable.
2. The Ames 2000SS and 3000SS may be placed in any posi-
tion as long as the flow indicator arrow in the assembly is
pointed in the direction of water flow, and the local water
authority has approved the installation configuration. ASSE
(American Society of Sanitary Engineers) has approved
these assemblies for either horizontal or vertical installation.
3. Allow sufficient clearance around the installed assembly to
conduct testing, servicing, and inspection. Allow a minimum
of 12" from the flood level to the bottom of the assembly.
4. If double check or double check detector assembly is installed
in a vault or pit, be sure proper drainage is available. If suffi-
cient drainage is not available a cross-connection may occur.
Attention Installer: After installation, please leave this
Instruction Sheet for occupant’s information.
2

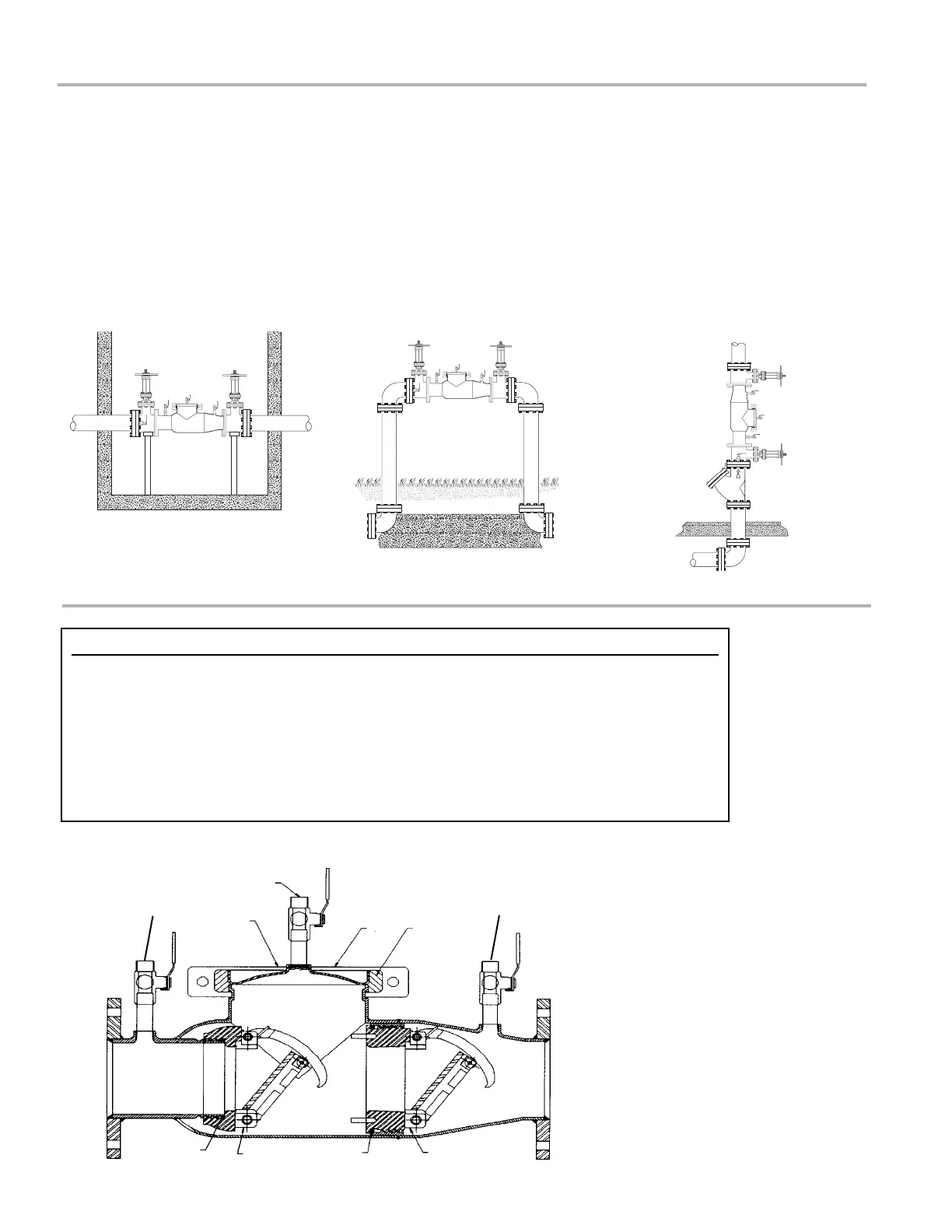

Outdoor Installation
Installation Instructions
Vertical Installation
Detailed Parts Listing
Parts Table #1
Ames Part No.
Item # Description Qty 2
1
/2" 3" 4" 6"SS 6"SE 8"SE
1. #1 Cam-Check 1 7015559 7015559 7015559 7015564 7015559 7015564
2. #2 Cam-Check 1 7015560 7015560 7015560 7015565 7015560 7015565
3. #1 Cam-Check O-ring 1 7015333 7015333 7015333 7013280 7015333 7013280
4. #2 Cam-Check O-ring 1 7013229 7013229 7013229 7013281 7013229 7013281
5. Cover Plate 1 7013241 7013241 7013241 7013289 7013474 7013289
6. Ball Valve 2 A000449 A000449 A000449 A000449 A000449 A000449
7. Groove Coupler 1 7013194 7013194 7013194 7013287 7013194 7013287
8. Groove Coupler Gasket 1 7013248 7013248 7013248 7013308 7013248 7013308
9. Ball Valve (Cover) 1 A603134 A063134 A603134 7013034 7013034 7013034
Indoor Installation
5
9
2
4
1
3
8
7
6
6
