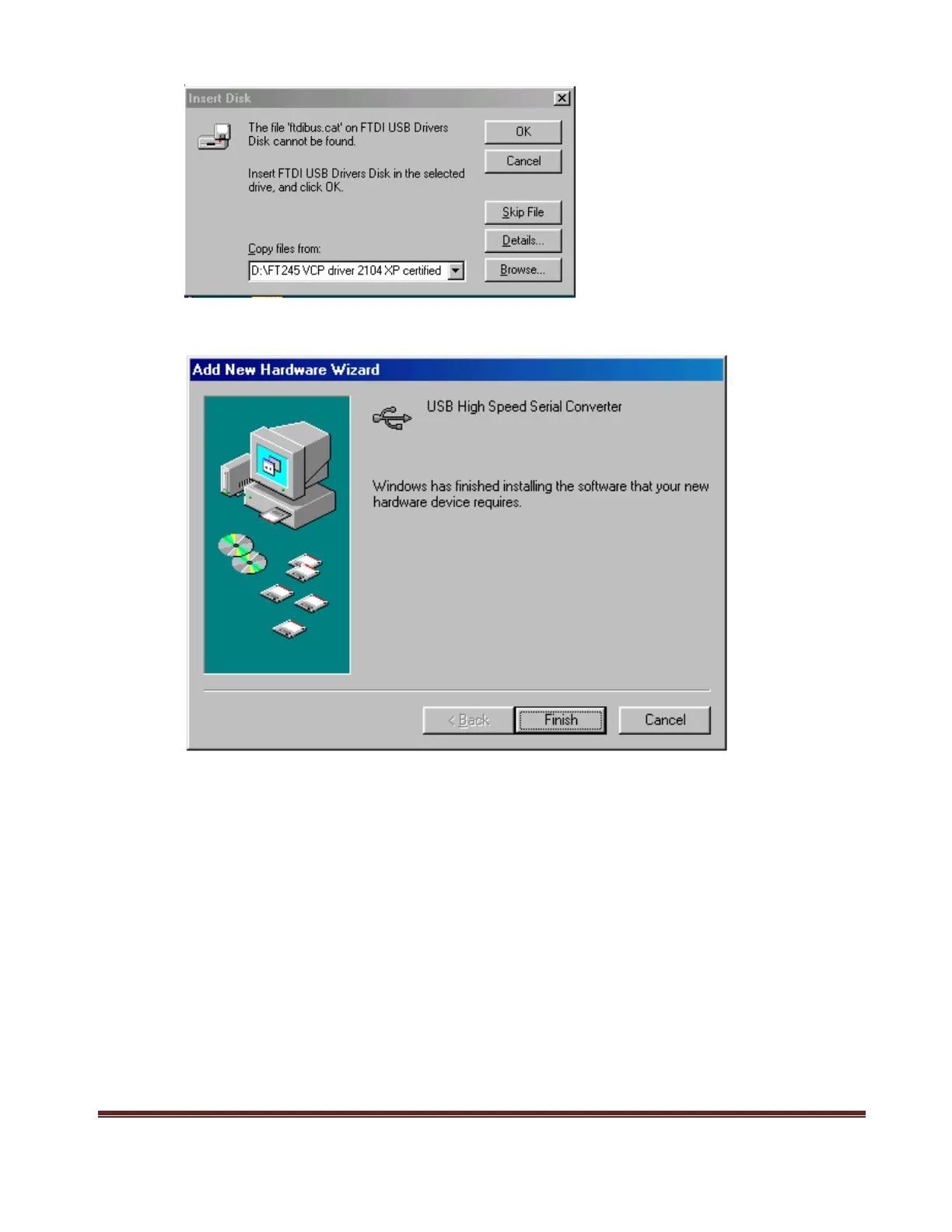

8) Click Cancel and the wizard will automatically locate the needed driver
9) The drivers have been installed successfully, and now the High Speed Serial Converter will work
properly
10) Click Finish to complete the installation process
Verify Installed USB Driver using Hyper-Terminal (Windows XP/2000/98)
1) Enter into Device Manager window
2) Locate and record the “USB Serial Port” COM Port number (under ports)
3) Enter into hyper terminal [Start → Accessories → Communications → Hyper Terminal]
4) Enter connection name, i.e. AMREL
5) Choose the corresponding “USB Serial Port” COM Port [To check, right click on My Computer →
Properties → Hardware → Device Manager → Ports (note the COM port the High Speed Serial Port is
connected to)]
6) Choose BPS according to the Baud Rate set on the eLoad unit (the two baud rates have to be the same)
7) Click Okay to connect
8) Test any SCPI command as desired (i.e. *idn?, addr?)
