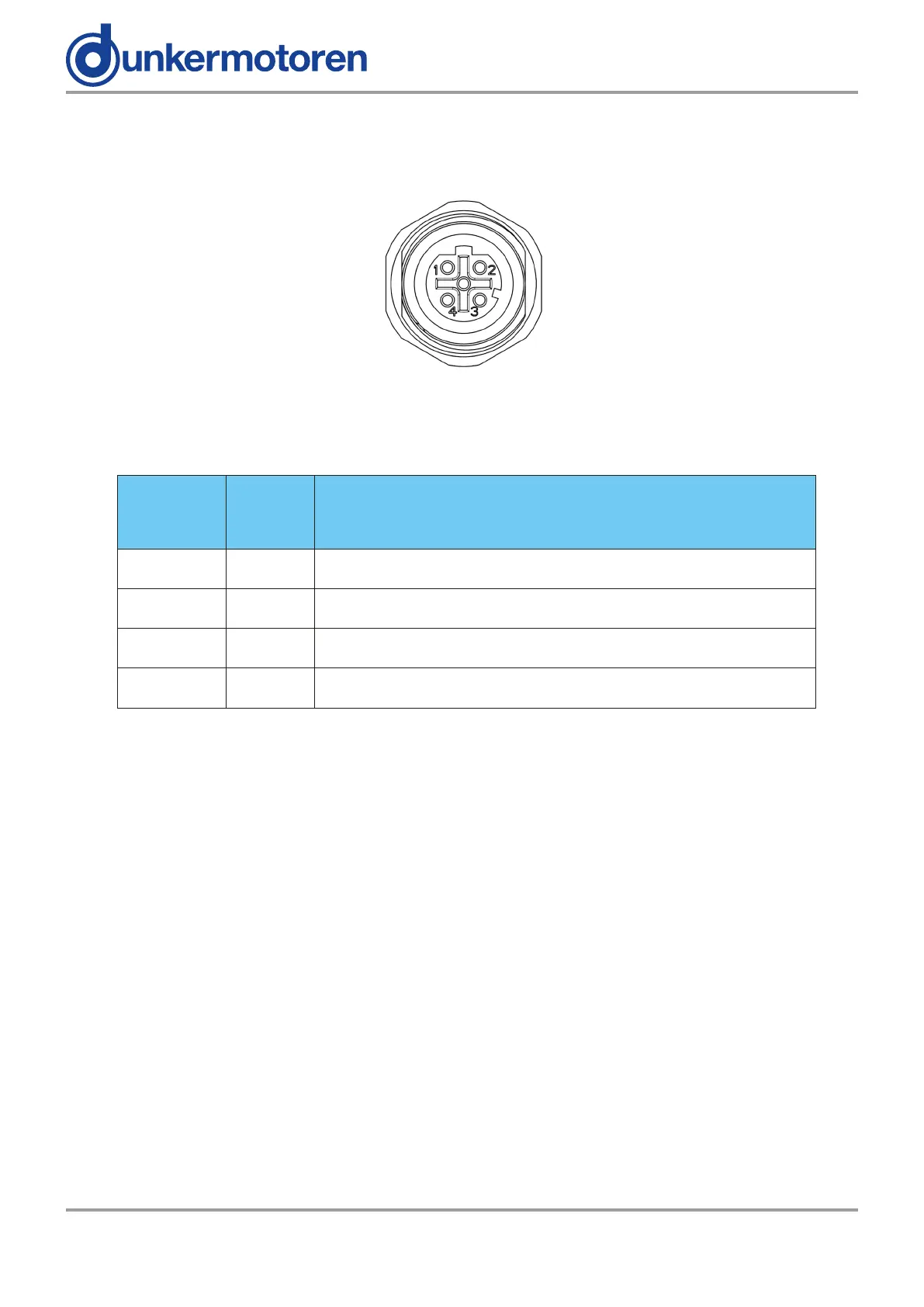

6.2.8 EtherCAT Anbindung (Pinbelegung)
EtherCAT Schnittstelle M12, 4- polig, D- kodiert
(EtherCAT in / EtherCAT out)
Connector Pin
/
Anschluss Pin
Connector
/
Anschluss
Function
/
Funktion
1 Tx+ EtherCAT Tx+
2 Rx+ EtherCAT Rx+
3 Tx- EtherCAT Tx-
4 Rx- EtherCAT Rx-
6.2.8 EtherCAT connector (Pin assignment)
EtherCAT connector M12, 4- polig, D- coded
(EtherCAT in / EtherCAT out)
