AMETEK CTS OCS 500 N6 series
Manual for Operation V 5.24 42 / 80

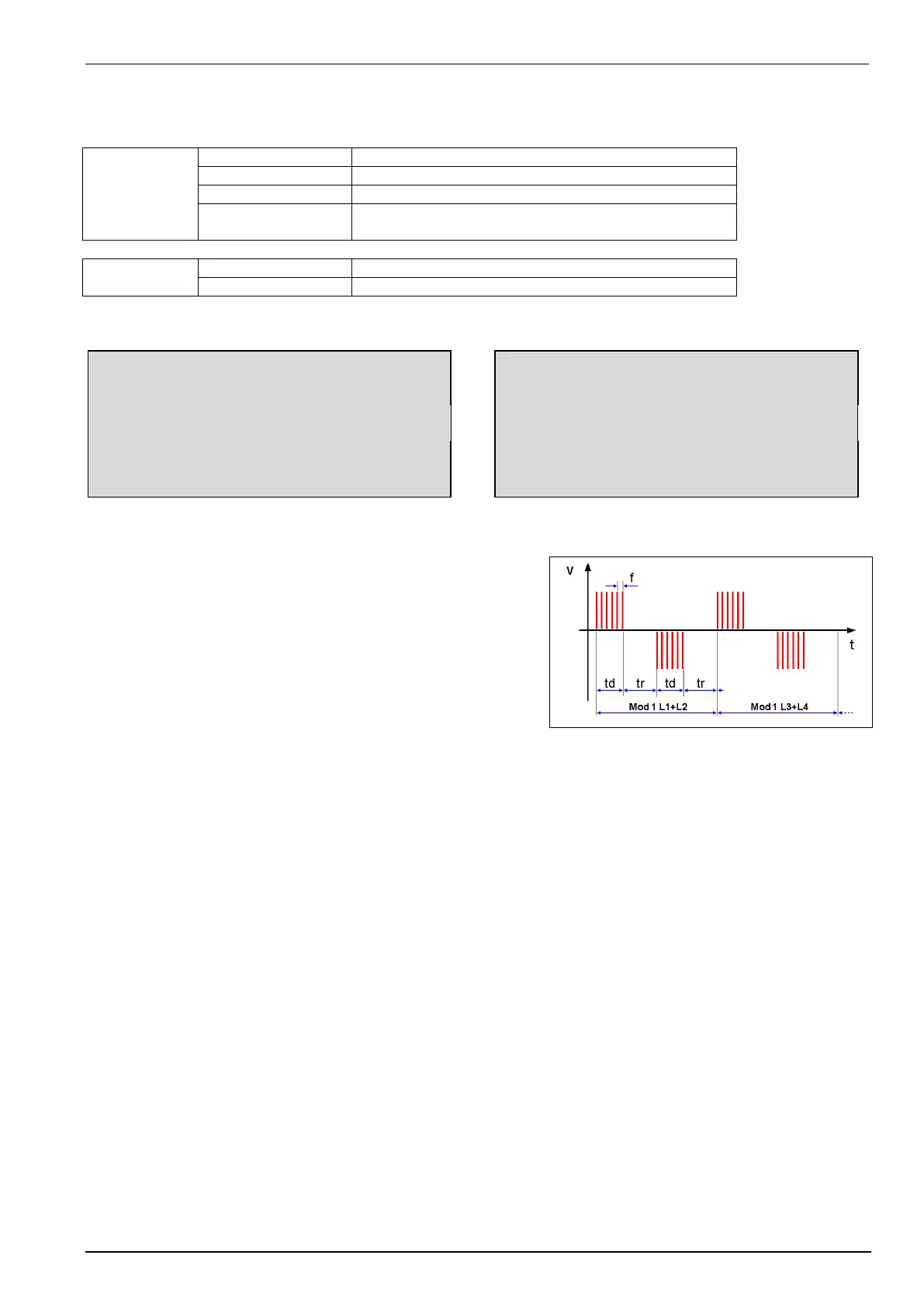

6.3.3.1.
Level test
A selected level will step through all couplings in the selected Mode. The following parameters are used:
Defined per
standard
Voltage
selected level voltage
Repetition f
40/s (100 kHz) 400/s (1 MHz)
Polarity
each coupling positive and negative
Coupling
Differential Mode L-N
Common Mode L-PE, N-PE, L+N-PE
Variable
parameters
Burst Time td
0.1s – 99.9s
Repetition tr
0.0s – 99.9s
Page 5 (standard test in stop mode) (Running standard test)
Damped Oscillatory IEC 61000-4-18 Level 3
Damped Oscillatory IEC 61000-4-18 Level 3
V = 2000V Rep = 400/s
V = 2000V Rep = 400/s
Td = 2s
Td = 2s
Tr = 2s
+ 2000 V
Tr = 2s
L
L Testtime
current coupling  0:00:21
START CHANGE
STOP Step complete test time  0:02:21
F1
F2
F3
F4
F5
F6
F7
F1
F2
F3
F4
F5
F6
F7
- The Test time shows the elapsed time per actual test level as
well as the complete time of all triggered test levels within the
running test sequence.
- Pushing the function key F2 STEP will bring you into the next
iteration sequence.
