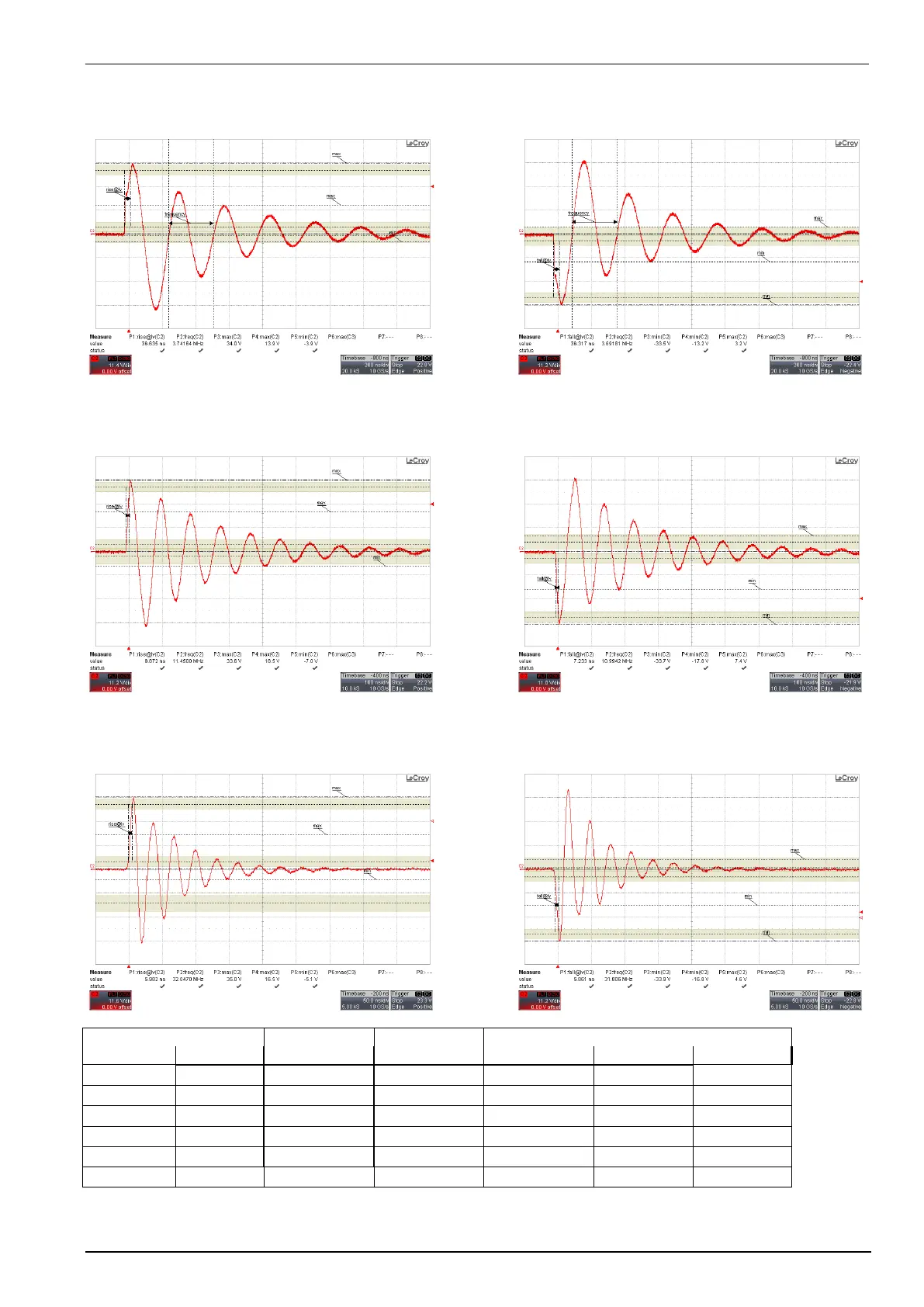

Fast Damped Oscillatory Wave, 3 MHz, output L+N-PE 2000V at L1
Positive
Negative
Fast Damped Oscillatory Wave, 10 MHz, output L+N-PE 2000V at L1
Positive
Negative
Fast Damped Oscillatory Wave, 30 MHz, output L+N-PE 2000V at L1
Positive
Negative
Nominal setting
I Peak
Rise time tr
Decaying [% of Peak 1]
Osc. Freq
[ V ]
[ MHz ]
[ A ]
[ ns ]
Peak 5
Peak 10
[ MHz ]
+2000
3
36.7
35.9
39.1
10.7
3.52
-2000
3
-36.7
36.5
42.1
7.2
3.54
+2000
10
40.5
10.67
53.5
24.1
10.64
-2000
10
-42.0
9.95
49.7
20.0
10.80
+2000
30
34.5
6.10
45.5
23.4
31.1
-2000
30
-35.5
6.26
46.4
20.4
31.2
