AMETEK CTS OCS 500 N6 series
Manual for Operation V 5.24 73 / 80
Coupling network for power lines
• 3 phase CNI 503N up to 100A
EUT mains supply 400 V rms max. // 480V for USA
Nominal current In = 16 A / 32A / 63A / 100 A rms
Frequency 50/60 Hz
Coupling to L1-L2, L1-L3, L2-L3
L1-N, L2-N, L3-N
L1-PE, L2-PE, L3-PE
L1+L2+L3 – PE
L1+L2+L3 +N – PE
Verification

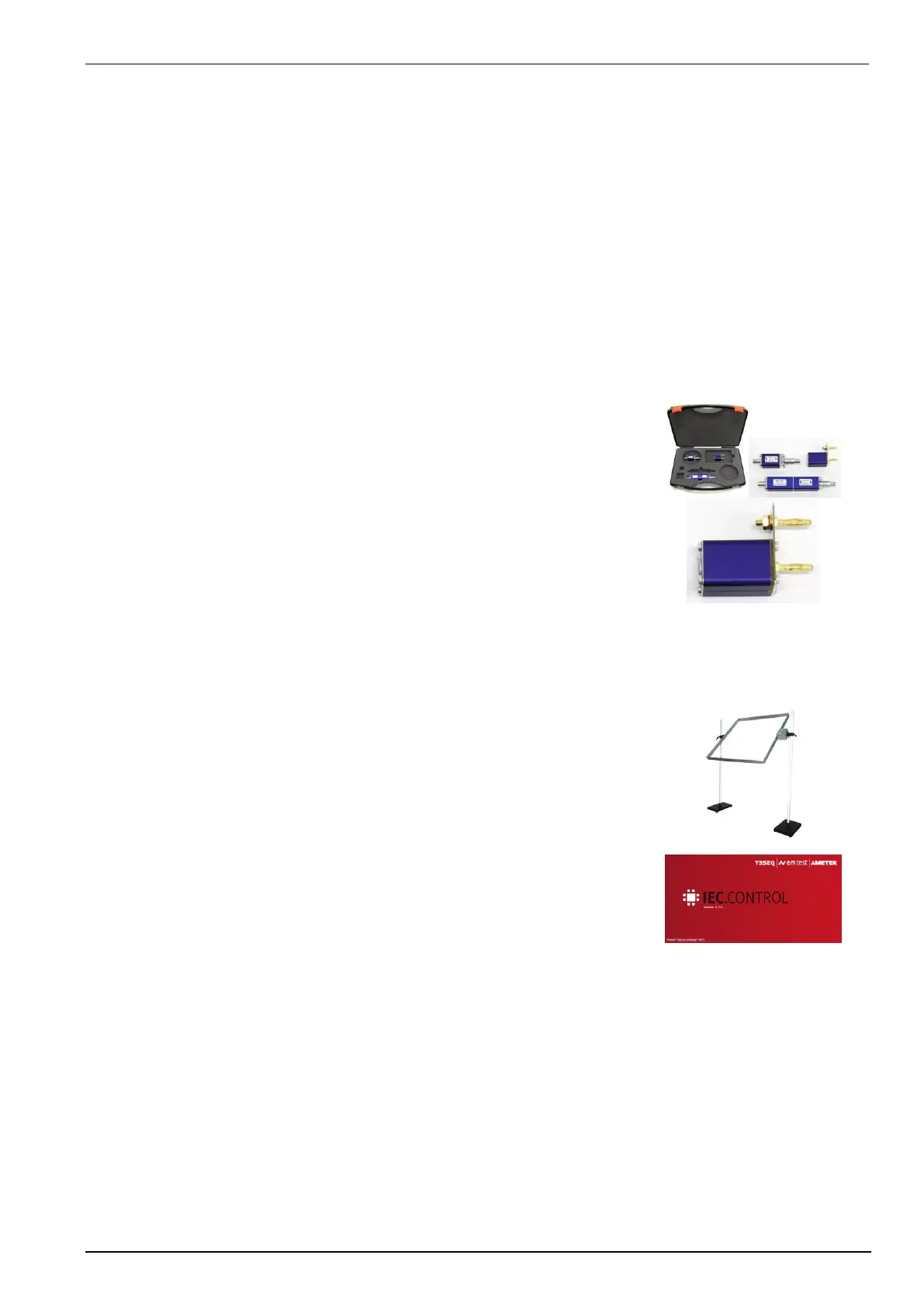

• CA OCS F kit
Calibration kit for fast OCS verification (incl. CA MC F + KW0R1 + KW1000)
• CA MC F
Adapter for the EUT output
Other accessories
• MS 100 Magnetic field antenna
• User software " iec.control "
- Test, analysis and documentation with windows
- License version for testing according the most automotive standards
- Report generator with export function to word-processing software
