5

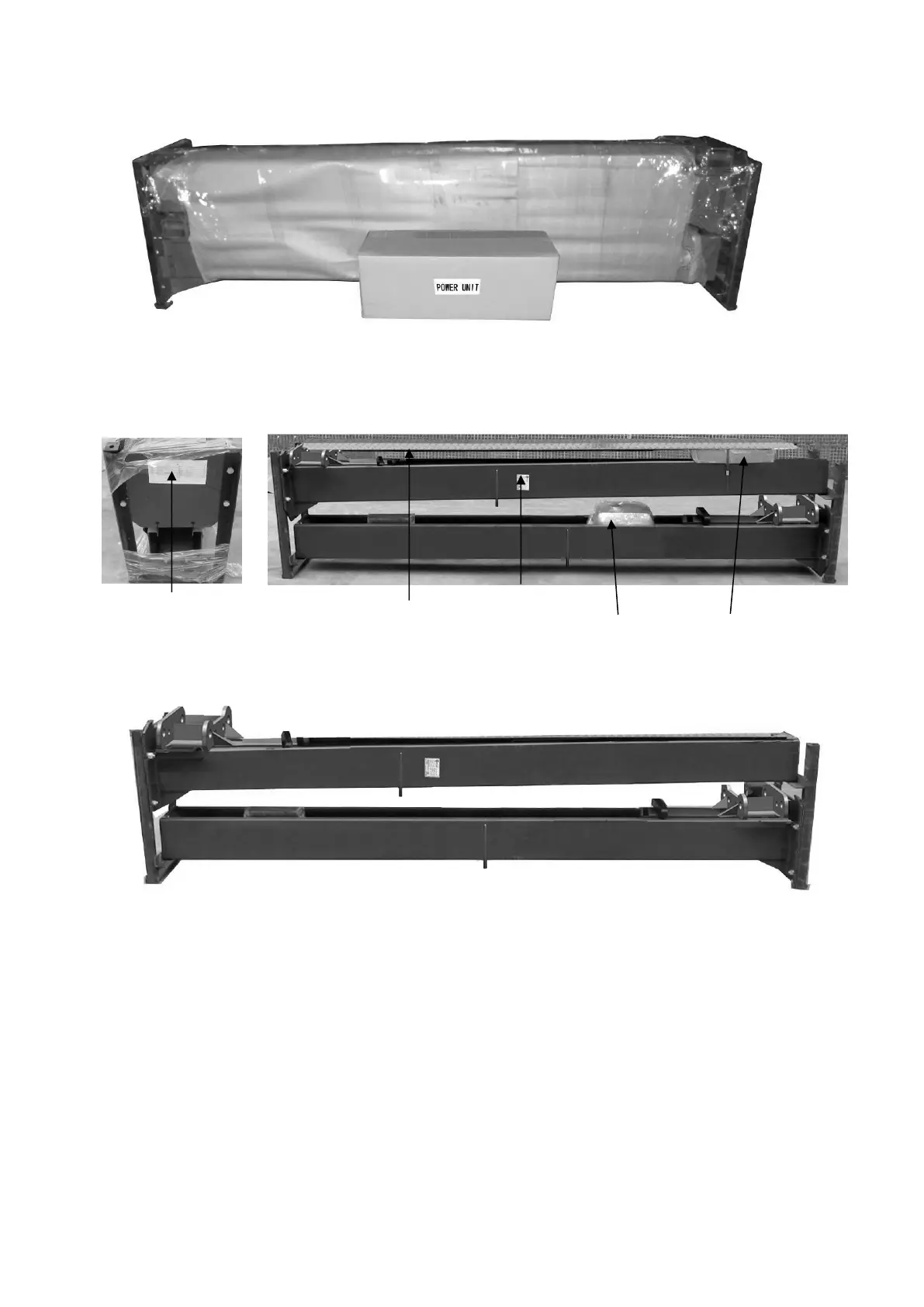

1. Packaged lift, hydraulic power unit and parts box (See Fig. 6).
2. Move aside the lift with fork lift or hoist, open the outer packing and check the parts
with shipment list (See Fig. 7).
3. Take out the accessories in the column, then take out the parts box. (See Fig. 8).
4. Loose the bolts of the upper package stand, remove the upper column then remove
the package stand.
5. Set aside the parts and check the parts according to the shipment parts list
Shipment Parts list
Floor cover
Metal Serial
Name plate
Fig.7
Parts box
Fig.6
Fig.8
Control box
